Yamaha 55DEHD User Manual

6885J11
6-20
9
8
7
6
5
4
3
2
1

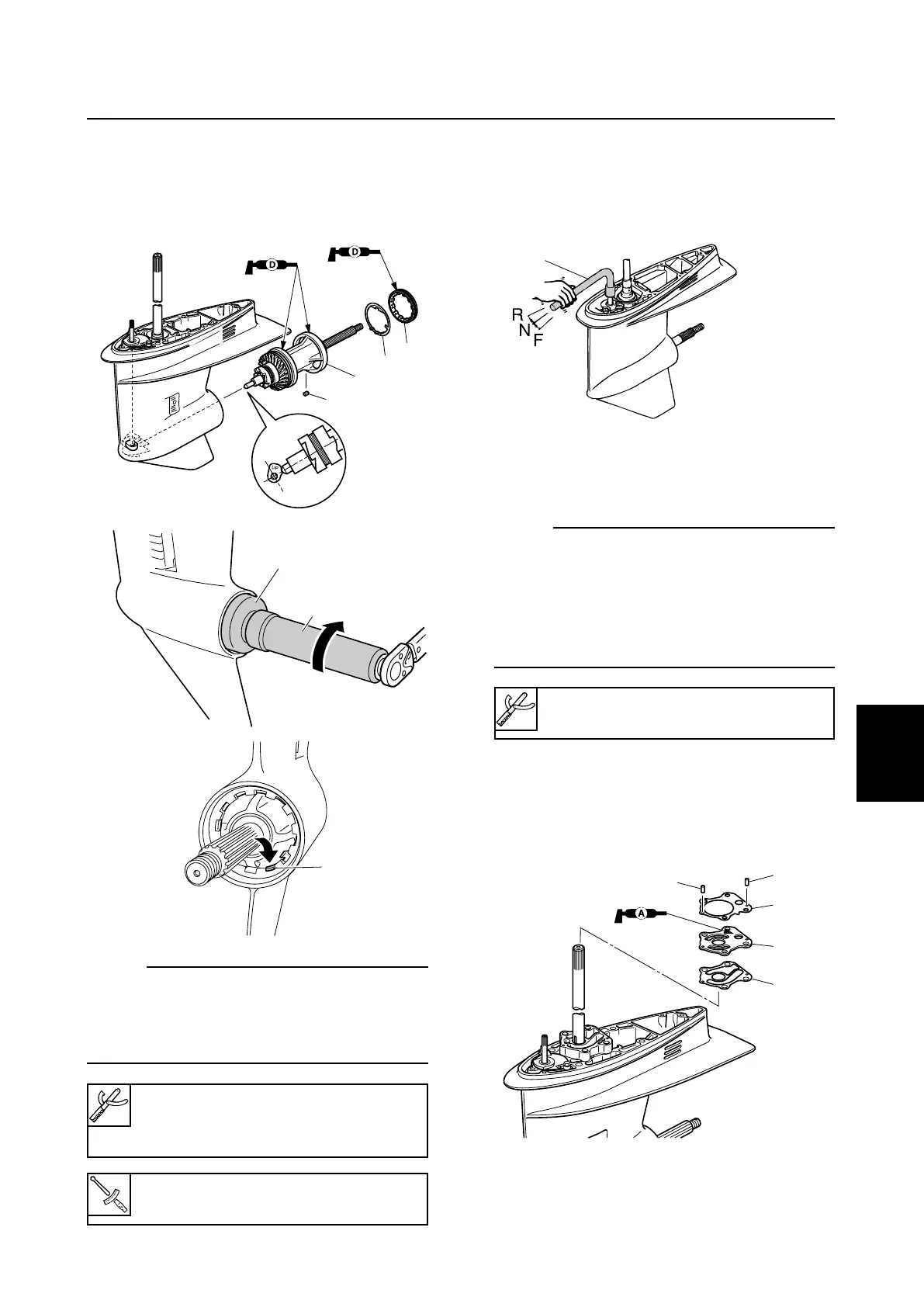

Drive shaft and lower case
4. Install the propeller shaft housing assem-
bly 4, straight key 6 and lock washer 7
into the lower case, then tighten the ring
nut 8 to the specified torque.
NOTE:
9 To secure the ring nut, bend 1 tab q of the
lock washer into a slot in the ring nut.
9 Bend all other tabs toward the propeller
shaft housing assembly.
5. Make sure check the shift operation.
Disassemble and assemble the lower
case if operated improperly.
NOTE:
9 Change the shift rod position to “F”, “R” and
“N” position using a special service tool 5.
9 Make sure that the propeller shaft rotating
direction is correct in “F” and in “R” position.
9 Make sure that the position is correct in “N”
position.
Installing the water pump
1. Install the dowels 1, new gasket 2 the
outer plate cartridge 3 new gasket 4.
68860360
8
7
6
4
68860370
9
0
6F600065
q
Ring nut 8:
105 N·m (10.5 kgf·m, 77.4 ft·lb)
Ring nut wrench 3 9: 90890-06511
Ring nut wrench extension 0:
90890-06513
69D60045
5
Shift rod push arm 5:
90890-06052
68860380
1
1
4
3
2
6885J11_06 07.10.10 10:58 Page 21
