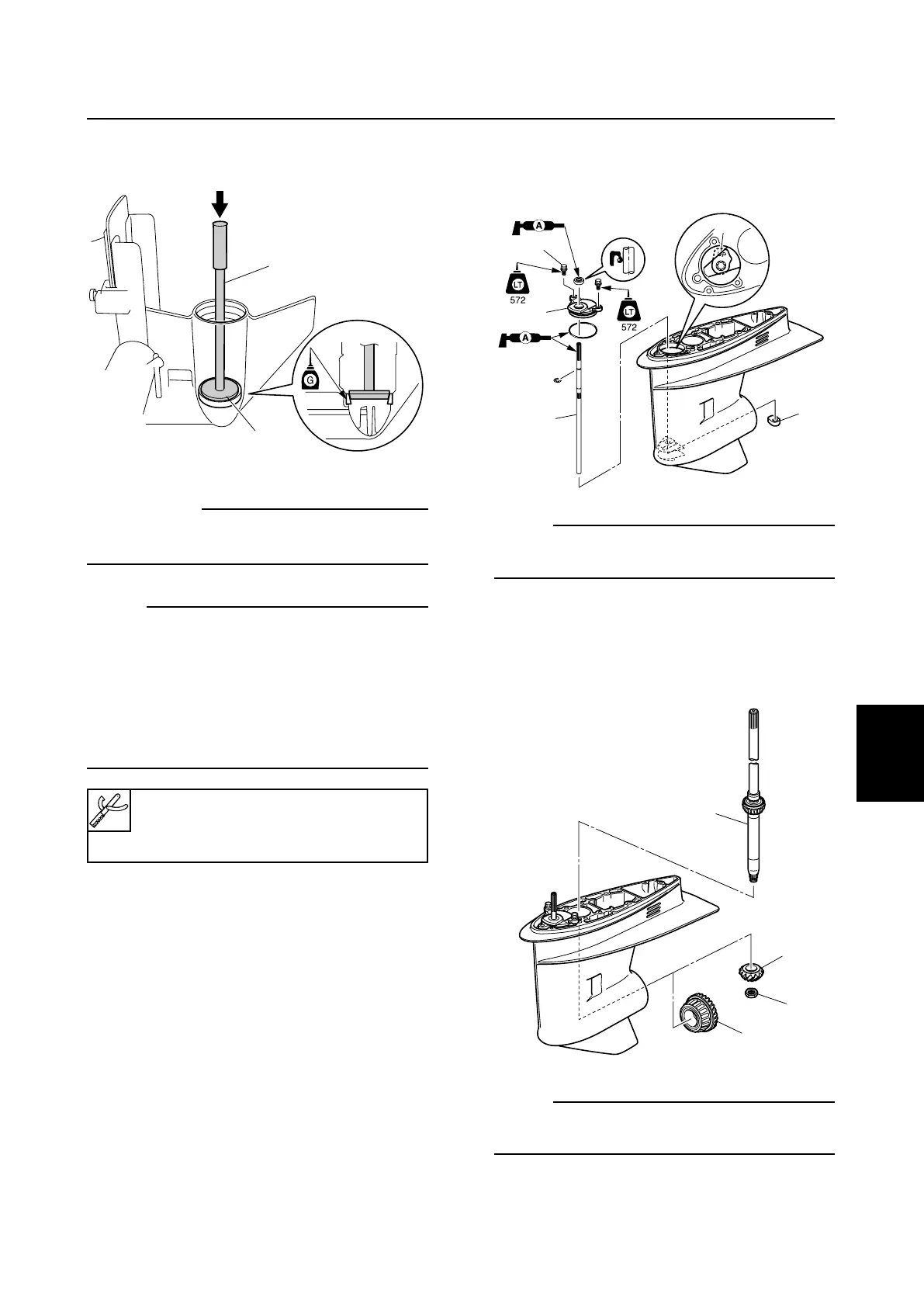

Drive shaft and lower case
Installing the shift rod
1. Install the shift cam 1, shift rod 2 and
plate 3, then tighten the bolts 4.
NOTE:
Install the shift cam 1 with the “UP” mark a
facing up.
Installing the drive shaft
1. Install the forward gear 1, pinion 2,
drive shaft 3 and pinion nut 4.
NOTE:
Install the drive shaft 3 lifting it up slightly,
and then align its splines with the pinion 2.
3. Install the shim(s) and new taper roller
bearing outer race.
cC
Do not reuse the bearing, always replace it
with a new one.
NOTE:
9 Be sure to select the forward gear shim(s) if
the lower case or taper roller bearing is
replaced.
9 To select the shim(s), refer to page 6-25.
9 Apply gear oil to the inside and outside of
the taper roller bearing outer race before
installation.
Bearing outer race attachment 6:
90890-06621
Driver rod LL 7: 90890-06605
7
6
68860300
a
4
3
1
2
68860320
68860310
3
2
4
1
