Control system

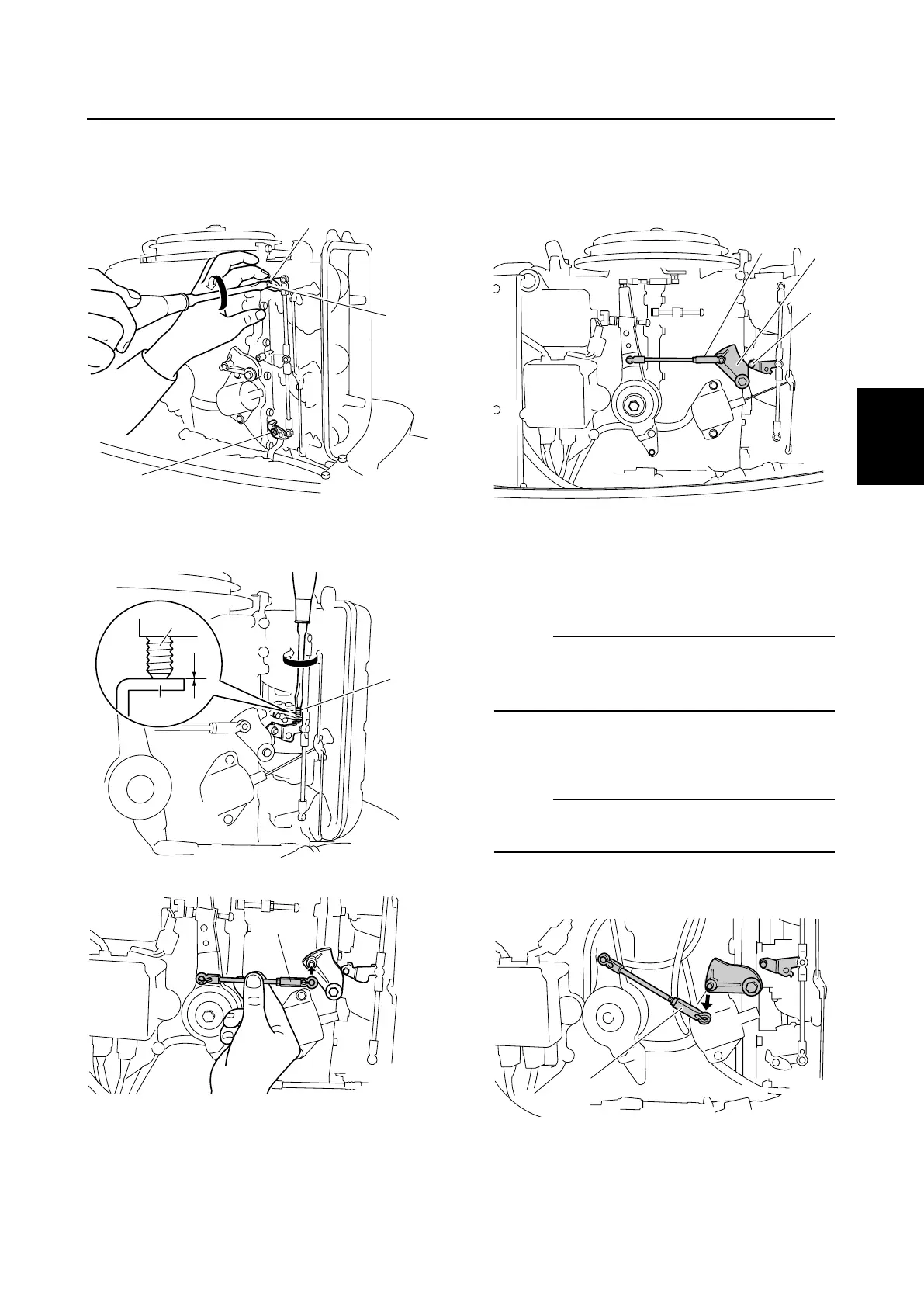

6. Tighten the throttle lever tightening
screws 8 on the carburetor assembly #1
and #3 by pushing down throttle lever 9
with your finger.
7. Tighten the throttle stop screw 6 until
contacts the stopper 7.
8. Install the throttle link rod 3.
9. Check that the throttle cam 4 slightly
contacts to the cam roller 5. If it is not in
contact, remove the throttle link rod 3
and adjust its length.
10. Install the intake silencer cover and con-
nect the throttle cable.
11. Check the engine idle speed.
NOTE:
After synchronizing the carburetor, make sure
to check the engine idle speed, refer to page
3-8.
Checking the control link position
1. Disconnect the throttle cable.
NOTE:
To disconnect and connect the throttle cable,
refer to page 3-7.
2. Remove the throttle link rod 1.
68830130
8
8
9
68830150
6
7
6
68830140
3
68830035
4
5
3
68830105
1
