520 (20.5)
459 (18.1)
L: 968 (38.1)
X: 1,080 (42.5)
180 (7.1)
545 (21.5)
67 (2.6)
547 (21.5)
164 (6.5)
199 (7.8)
47 (1.9)
23 (0.9)
743 (29.3)
L: 901 (35.5) X: 1,028 (40.5)
L: 520 (20.5) X: 647 (25.5)
191 (7.5)
L: 698 (27.5) X: 764 (30.1)
L: 14.0 (0.6)
X: 23.0 (0.9)
27.5 (1.06)
L: 88 (3.5)
X: 85 (3.4)
331 (13.0)
211 (8.3)
6882002M

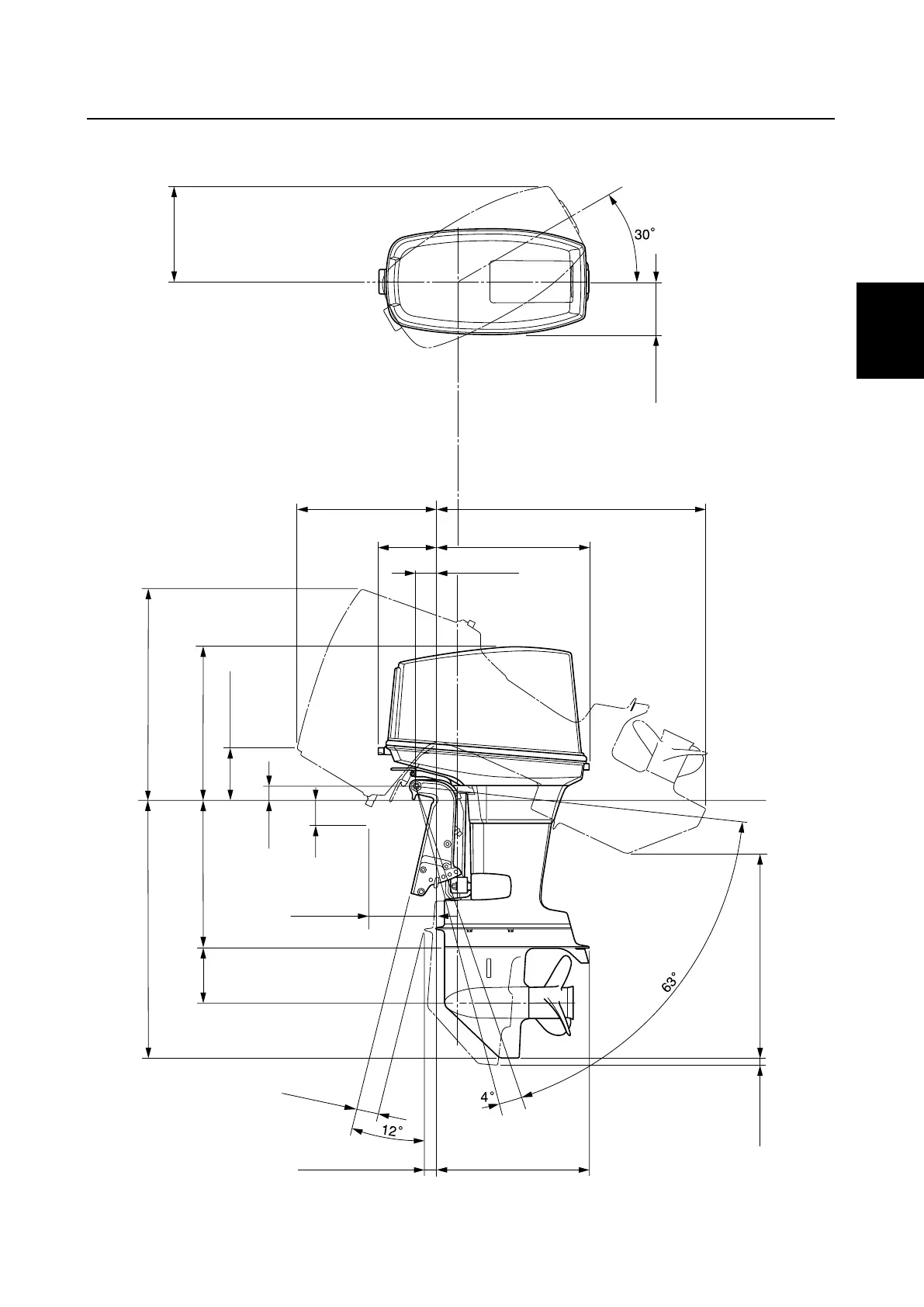

Exterior 75AED, 75AET, 85AED, 85AET
mm (in)
Maintenance specification
