POWR
Power unit
5-19
60C5D11

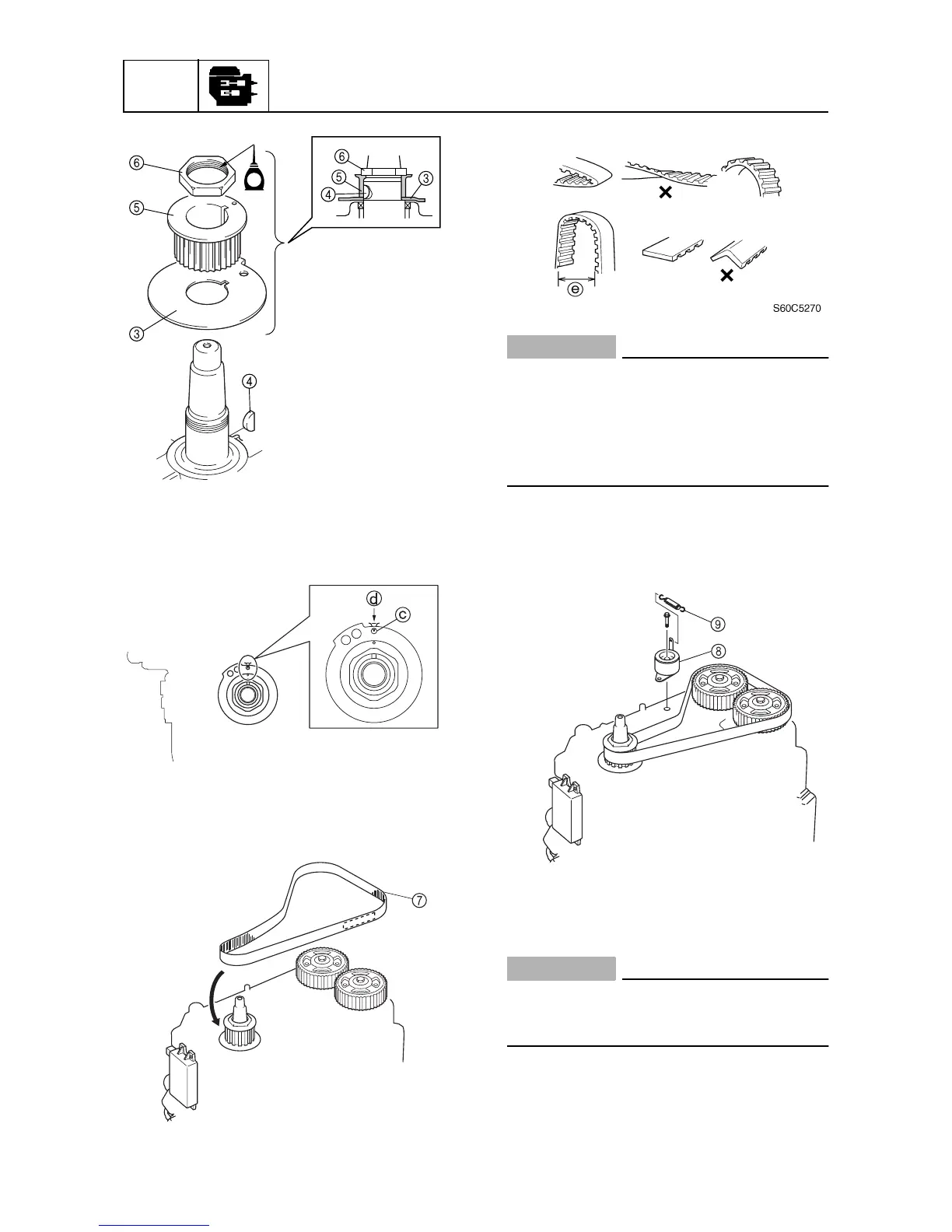

3. Check that the hole
c
on the retaining
plate is aligned with the notch
d
on the
cylinder block.
4. Install the timing belt
7
from the drive
sprocket side with its part number in the
upright position.
CAUTION:
• Do not twist, turn inside out, or bend the
timing belt beyond the maximum limit of
25 mm (1.0 in)
e
, otherwise it may be
damaged.
• Do not get oil or grease on the timing
belt.
5. Install the tensioner
8
, spring
9
, and
bolts, and then tighten the bolts finger
tight.
6. Take up the timing belt slack by turning
the drive sprocket clockwise at least two
full turns.
CAUTION:
Do not turn the sprockets counterclock-
wise, otherwise the valve system may be
damaged.
S60C5240
E
S60C5250
S60C5260
67F-46241-00
S60C5280
To Next Page
