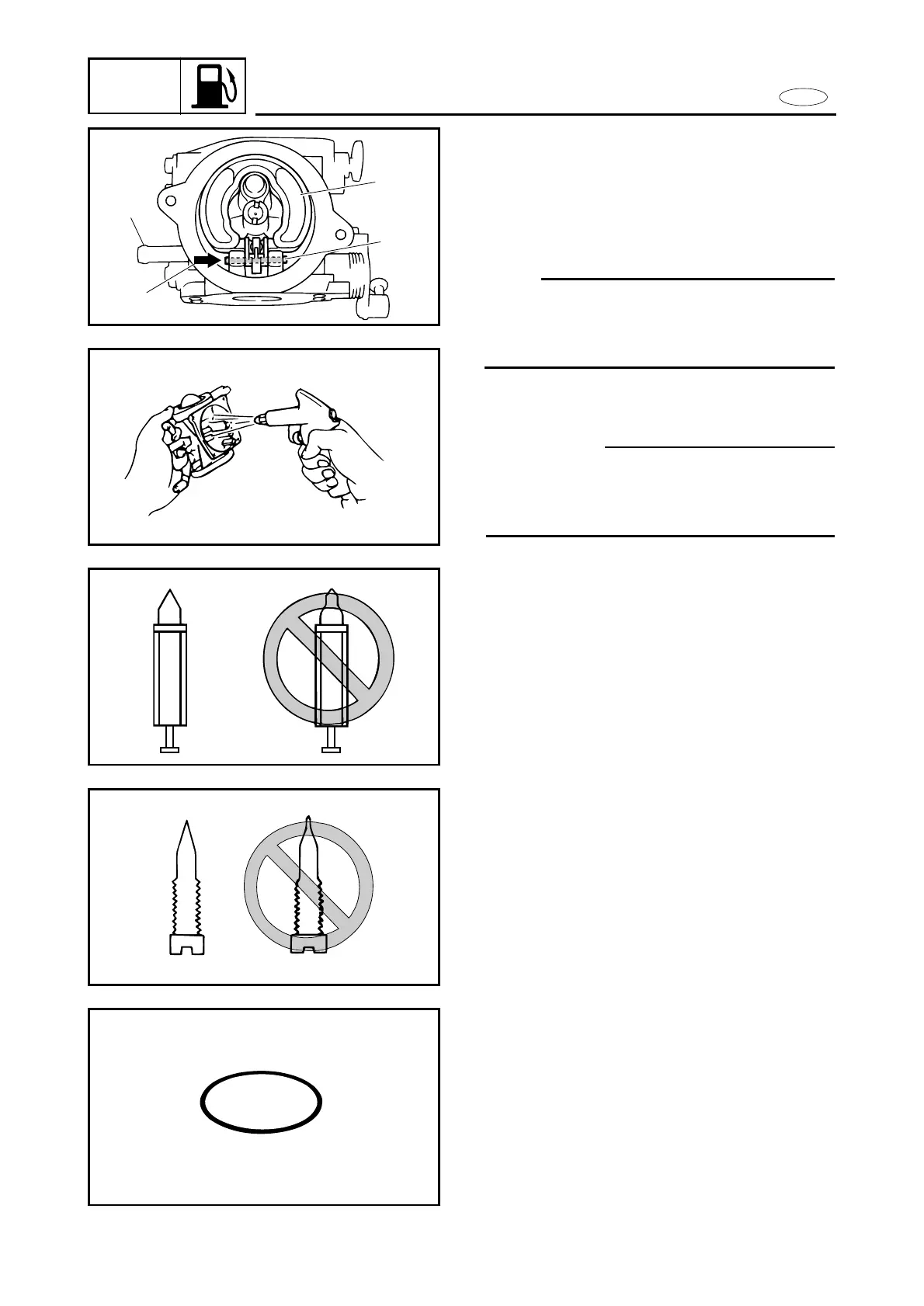

Carburetor inspection
cC
Do not use a steel wire to clean the jets.
This may enlarge the jet diameters and
seriously affect performance.
1. Inspect:
9Carburetor body
Cracks/Damage ® Replace.
Contamination ® Clean.
2. Inspect:
9Main jet
9Pilot jet
9Main nozzle
Contamination ® Clean.
3. Inspect:
9Needle valve
9Pilot screw (Except for USA)
Grooved wear ® Replace.
4. Inspect:
9Float
Cracks/Damage ® Replace.
5. Inspect:
9O-ring
Wear/Cracks/Damage ® Replace.
SERVICE POINTS
Carburetor
1. Remove:
9Float pin 1
9Float 2
9Needle valve
NOTE:
When removing the float pin 1, tap it in
arrow direction 4 from pivot of the pipe
joint side 3 as shown.
