Yamaha F4A - Pinion and Forward Gear Inspection; Spacer

E

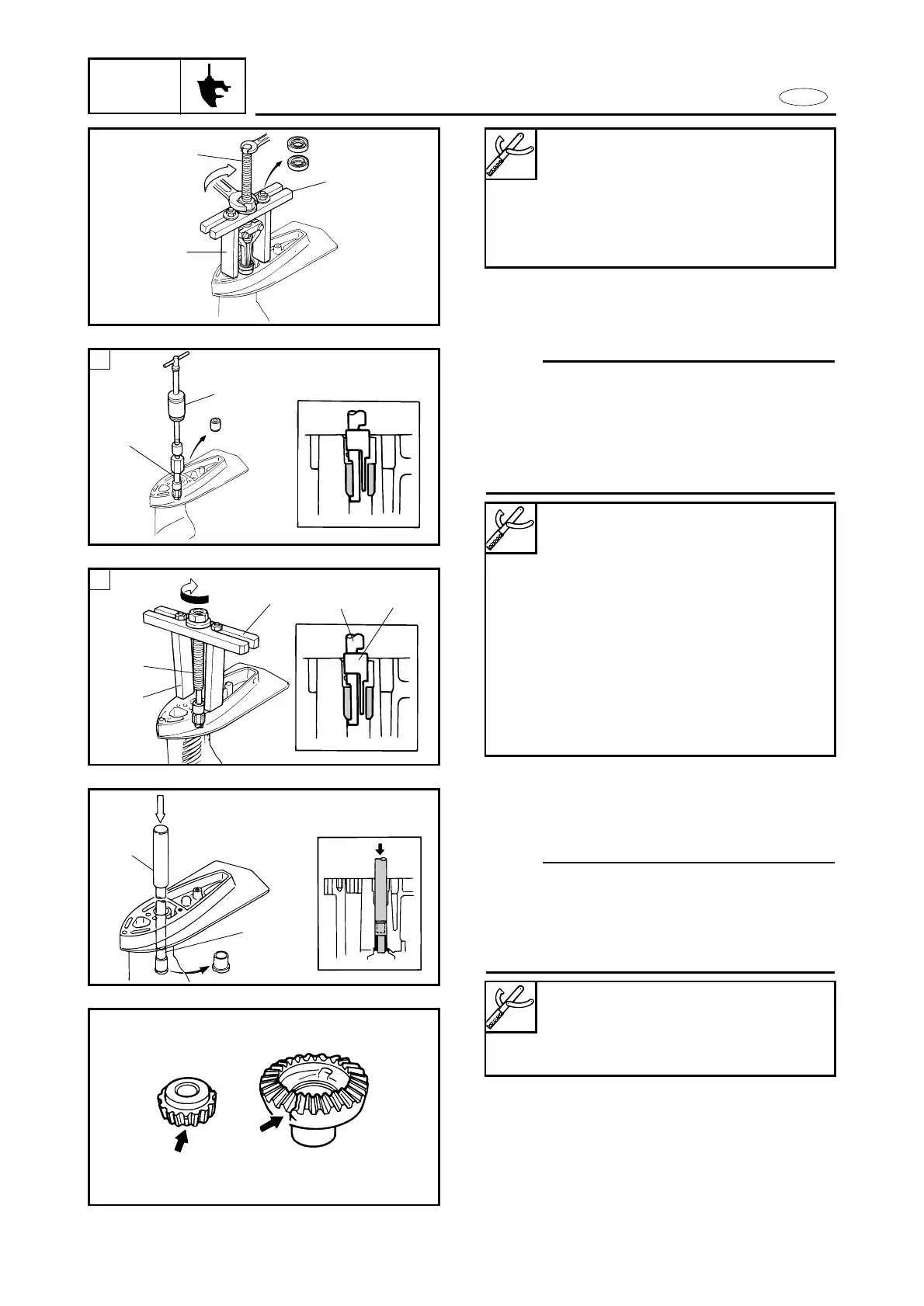

DRIVE SHAFT, FORWARD GEAR AND SHIFT ROD
LOWR
4
2
3
1
5
6
7
2
6
4
9
8
3. Remove:
9Upper bushing
NOTE:
As shown, install the bushing puller in the
upper bushing, and insert the puller so
that claw hold the underside of the bush-
ing. Remove the bushing with the bushing
puller.
4. Remove:
9Lower bushing
NOTE:
Install the bushing remover attachment
and driver rod in the drive shaft lower
bushing, and remove the bushing with the
driver rod.
Pinion and forward gear inspection
1. Inspect:
9Tooth
9Dog
Wear/Damage ® Replace.
6-19
Stopper guide plate 2:
90890-06501
Bearing puller 3:
90890-06535
Stopper guide stand 4:
90890-06538
A
B
Slide hammer set 1:
YB-06096
Stopper guide plate 2:
90890-06501
Stopper guide stand 4:
90890-06538
Bushing puller :
YB-06178 5
90890-06646 6
Bushing puller spacer 7:
90890-06648
Bushing attachment 8:
YB-06027/90890-06651
Driver rod 9:
YB-06229/90890-06652
A For USA and CANADA
B Except for USA and CANADA
