FLYWHEEL ROTOR ASS’Y
POWR
FLYWHEEL ROTOR ASS’Y

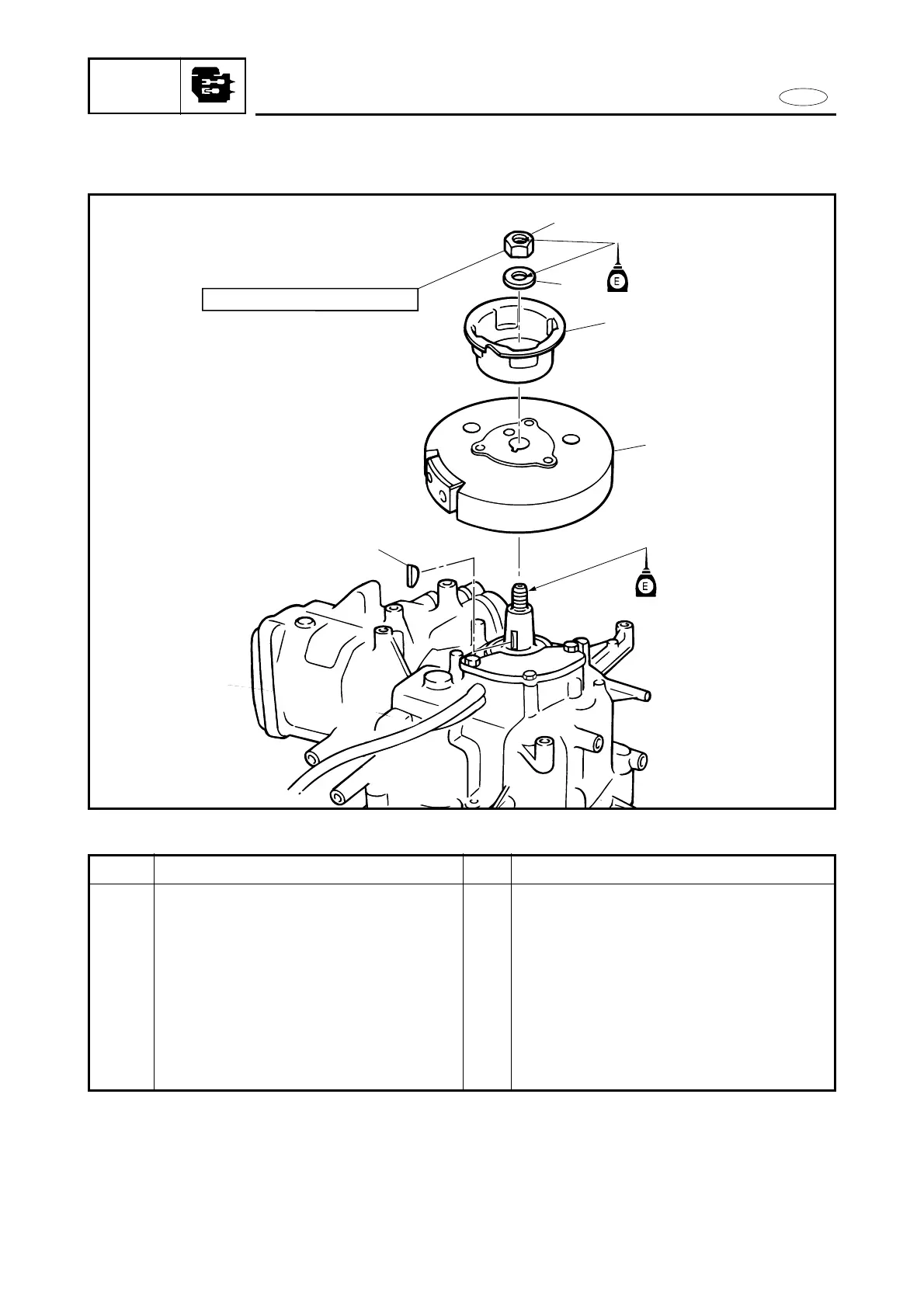

EXPLODED DIAGRAM
2
1
3
4
5
44 Nm (4.4 m•kg, 32 ft•lb)
5-8
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
Q’ty
1
1
1
1
1
Service points
Follow the left “Step” for removal.
Reverse the removal steps for installation.
Procedure/Part name
FLYWHEEL ROTOR ASS’Y REMOVAL
Recoil starter ass’y
Ignitor ass’y
Nut
Washer
Starter pulley
Flywheel rotor ass’y
Woodruff key
