Yamaha F4A - Steering Handle; Exploded Diagram; Removal and Installation Chart

E
STEERING HANDLE
BRKT
STEERING HANDLE

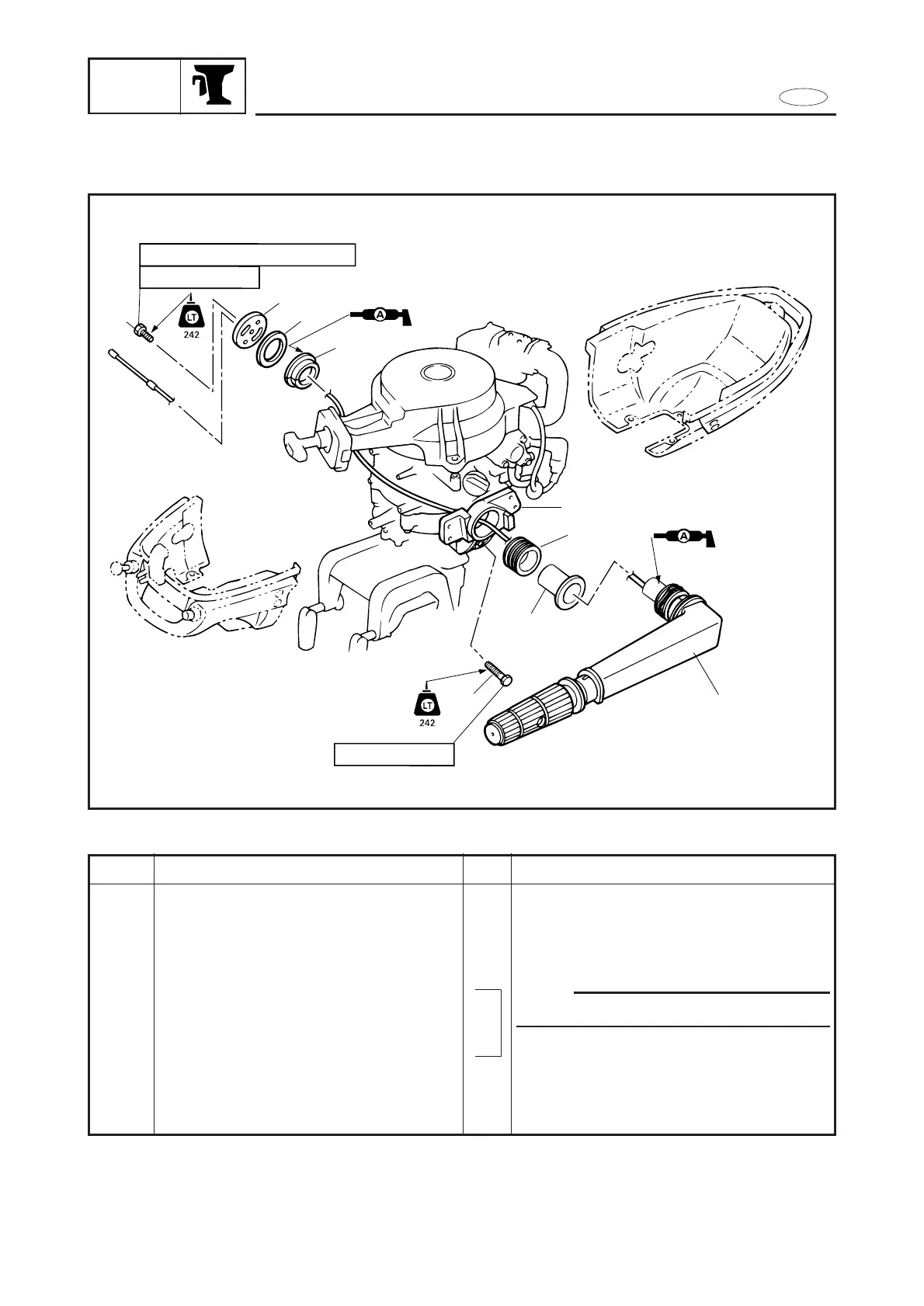

EXPLODED DIAGRAM
1
2
3
5
6
7
8
9
4
M8 x 25 mm
M8 x 30 mm
18 Nm (1.8m•kg, 13 ft•lb)
7-3
REMOVAL AND INSTALLATION CHART
Step
1
2
3
Q’ty
1
1
1
Service points
Follow the left “Step” for removal.
NOTE:
Disconnect from the power unit side.
Procedure/Part name
STEERING HANDLE REMOVAL
Carrying handle2 (protector)
Bottom cowling 2
Carrying handle 1
Engine stop switch lead
Choke wire
Throttle cable
Bottom cowling 1
Bolt (steering handle ass’y)
Steering handle cover
Collar
