Yamaha F4A - Lower Casing Cap Ass’y, Reverse Gear Andpropeller Shaft Removal; Reverse Gear Inspection

E
LOWER CASING CAP ASS’Y, REVERSE GEAR AND
PROPELLER SHAFT
LOWR
1
3
2
SERVICE POINTS

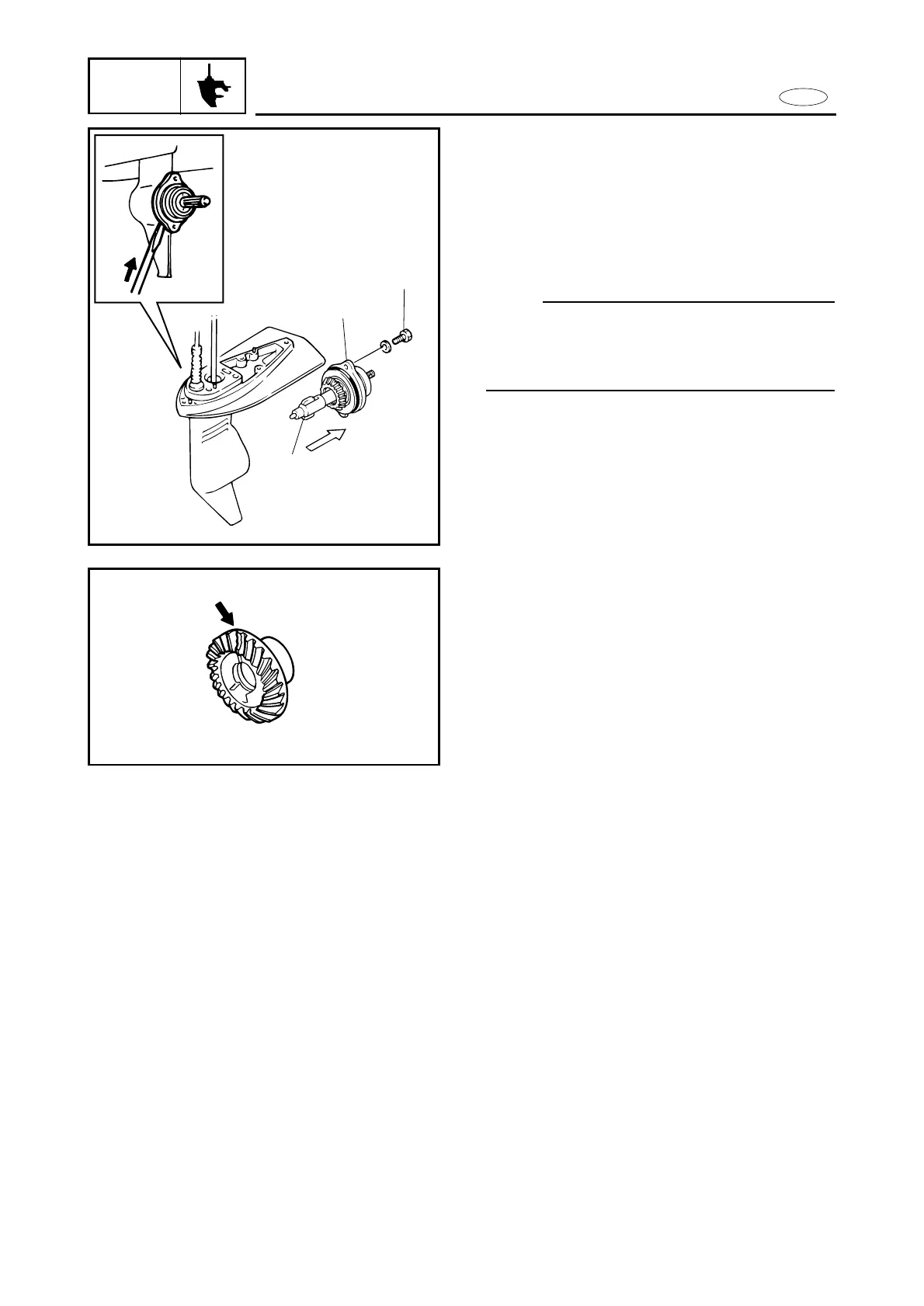

Lower casing cap ass’y, reverse gear and
propeller shaft removal
1. Remove:
9Bolts 1
9Lower casing cap ass’y 2 with pro-
peller shaft 3
NOTE:
Insert a flat head screwdriver into the slit
between the sealing surfaces of the Lower
case, and pry them slightly open.
6-9
Reverse gear inspection
1. Inspect:
9Tooth
9Dog
Wear/Damage ® Replace.
