Yamaha F4A - Bushing Inspection; Friction Plate Installation; Service Points

E
UPPER CASE ASS’Y
BRKT
4
1
2
3

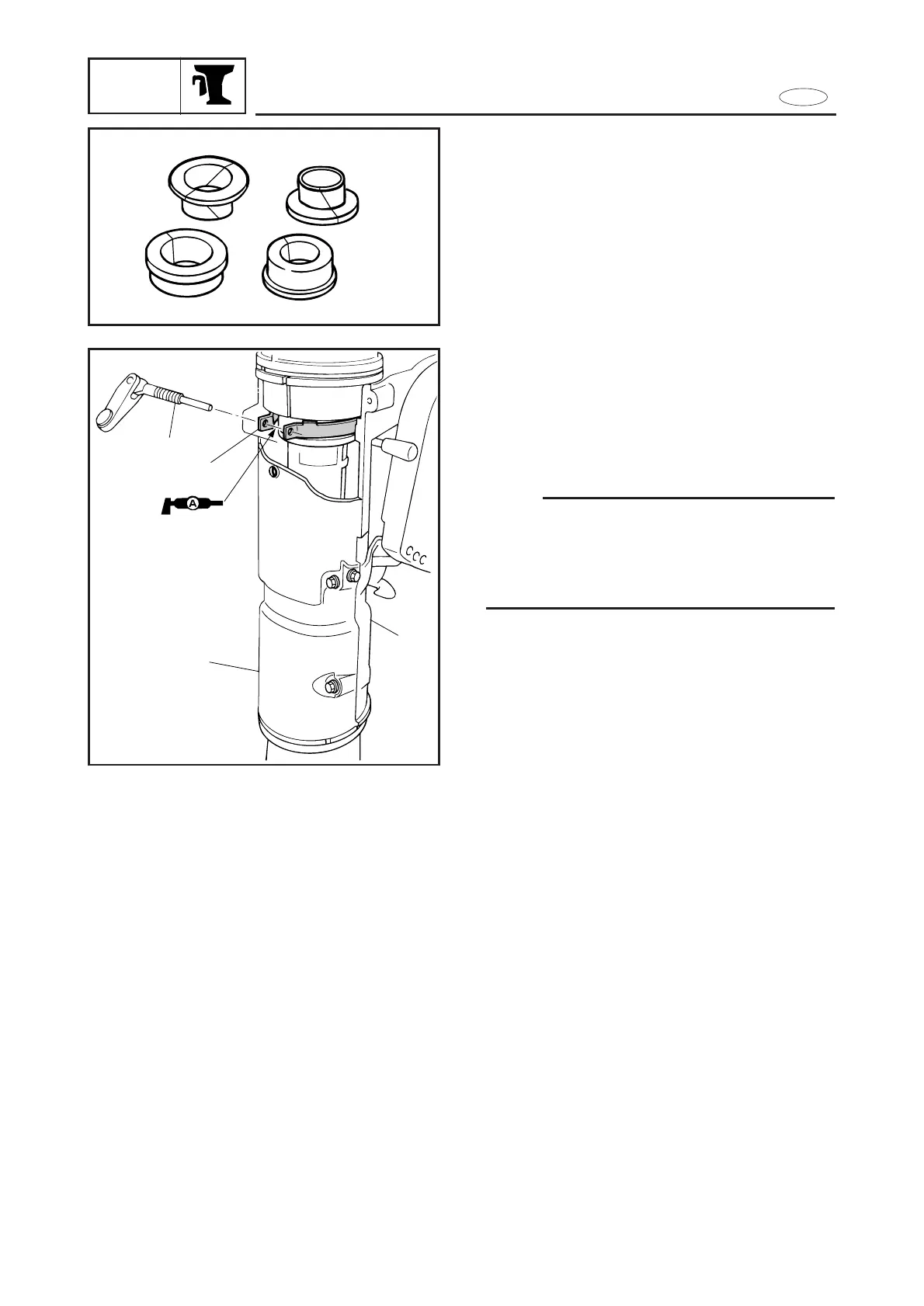

SERVICE POINTS
Bushing inspection
1. Inspect:
9Bushing
Damage/Crack
® Replace.
Friction plate installation
1. Install:
9Friction plate 1
9Swivel bracket ass’y 1 2
9Swivel bracket ass’y 2 3
9Steering friction screw 4
NOTE:
Apply grease to the friction plate 1 and
set to the swivel bracket 1 ass’y 2 as
shown, then install the swivel bracket ass’y
2 3 and tighten the friction screw 4.
7-9
