Yamaha F4A - Lower Unit Removal

E
LOWER UNIT
LOWR
1
1
2
SERVICE POINTS

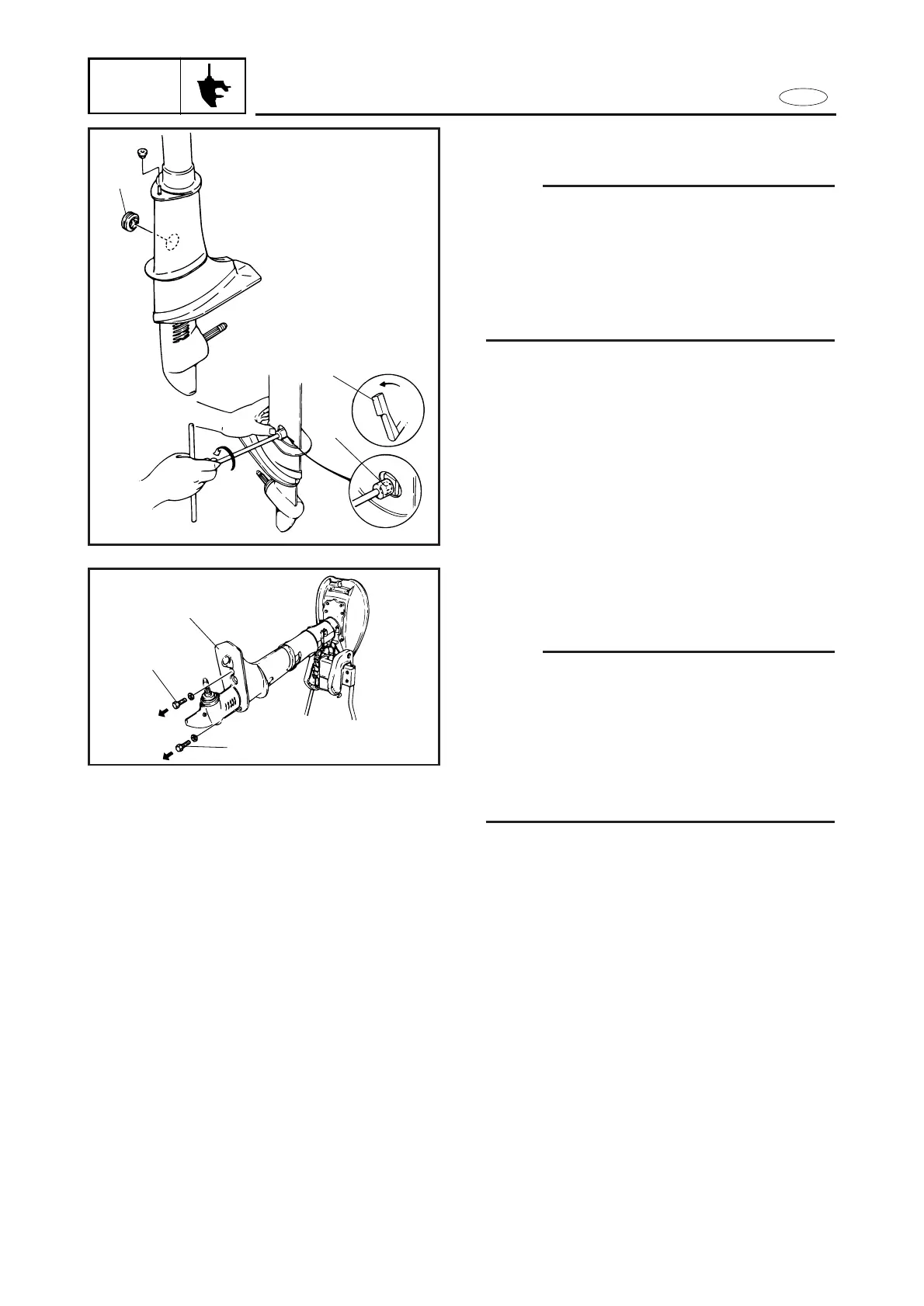

Lower unit removal
NOTE:
9It is possible to remove the Lower unit
from the upper case without removing
the power unit.
9Set the shift lever 1 to “REVERSE“ posi-
tion, then remove and install the lower
unit.
1. Remove:
9Grommet 2
2. Loosen:
9Bolt 3 (shift rod connector)
3. Remove:
9Bolt 1 (lower unit)
9Lower unit 2
NOTE:
For long transom model:
9When removing, screw out the bolt (rear)
from upper case and remove the lower
unit with extension.
9When installing, hold the bolt (rear) in
hole of the extension and install the lower
unit with extension to the upper case.
6-3
R
1
2
3
