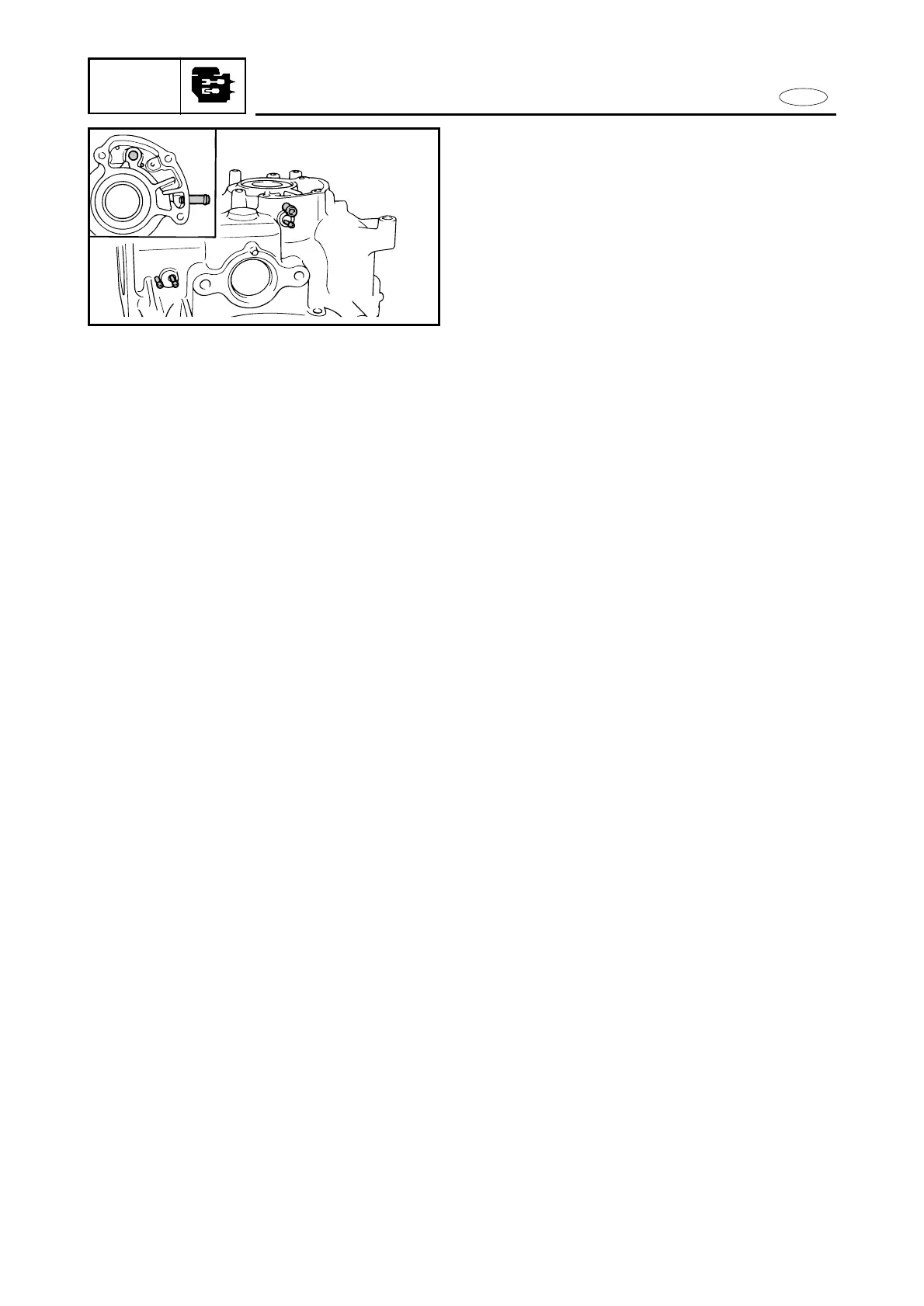

BREATHER VALVE

POWR

SERVICE POINTS

Breather valve inspection

1. Inspect:

9Breather valve

Damage/Crack/bend ® Replace.

Breather route inspection

1. Inspect:

9Breather hose 1 (large)

Crack/Leak/Damage ® Replace.

9Breather hole

Clog ® Clean.

9Breather hose 2 (small)

Crack/Leak/Damage ® Replace.

5-25
