Yamaha F4A - Recoil Starter

E
RECOIL STARTER
POWR
RECOIL STARTER

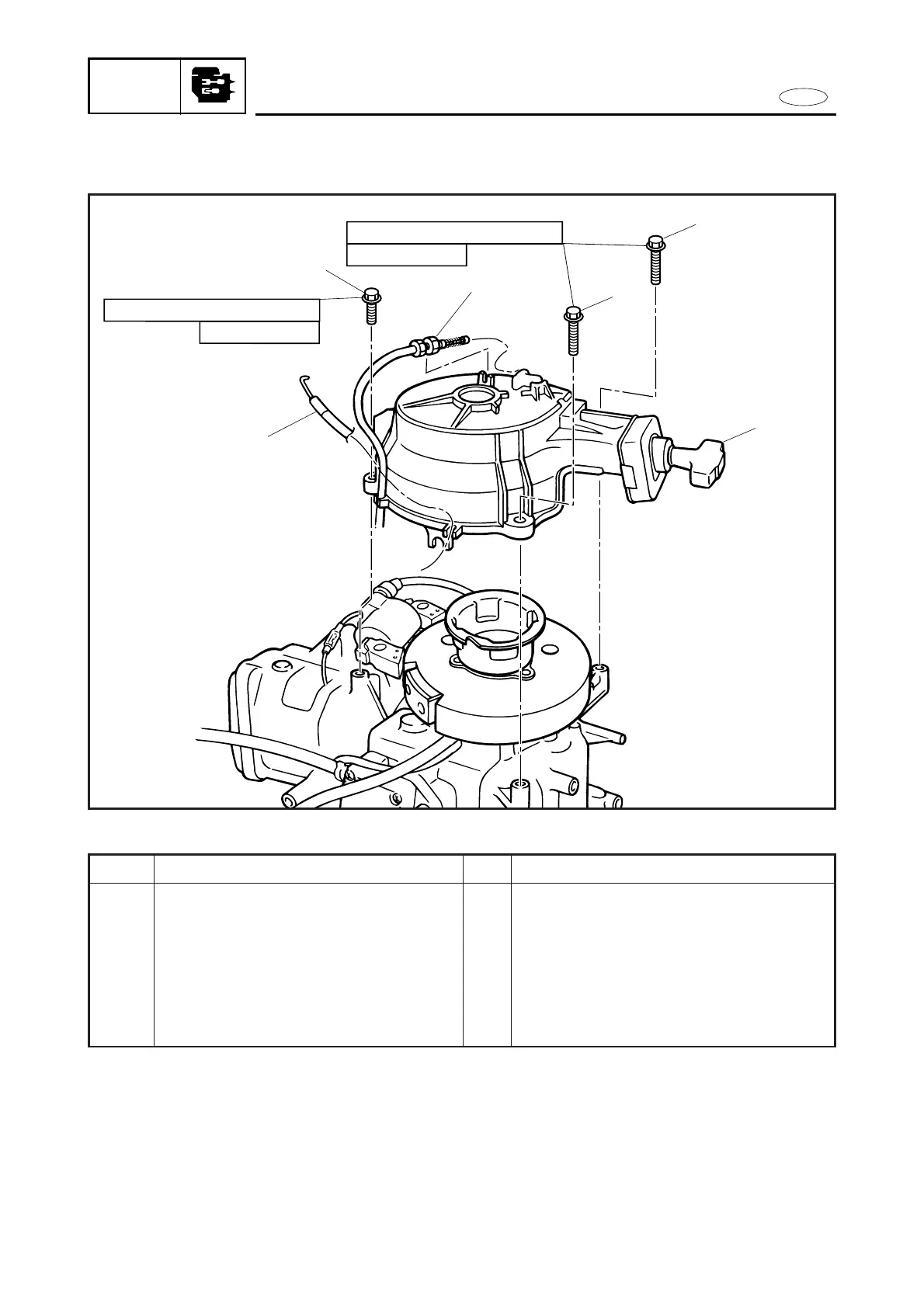

EXPLODED DIAGRAM
3
3
5
1
4
2
8 Nm (0.8 m•kg, 5.8 ft•lb)
M6 x 35 mm
M6 x 20 mm
8 Nm (0.8 m•kg, 5.8 ft•lb)
5-1
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
Q’ty
1
1
2
1
1
Service points
Follow the left “Step” for removal.
Reverse the removal steps for installation.
Procedure/Part name
RECOIL STARTER REMOVAL
Start-in-gear protection cable
Choke wire
Bolt with washer (recoil starter)
Bolt with washer (recoil starter)
Recoil starter ass’y
