Yamaha F4A - Page 128

E
RECOIL STARTER
POWR

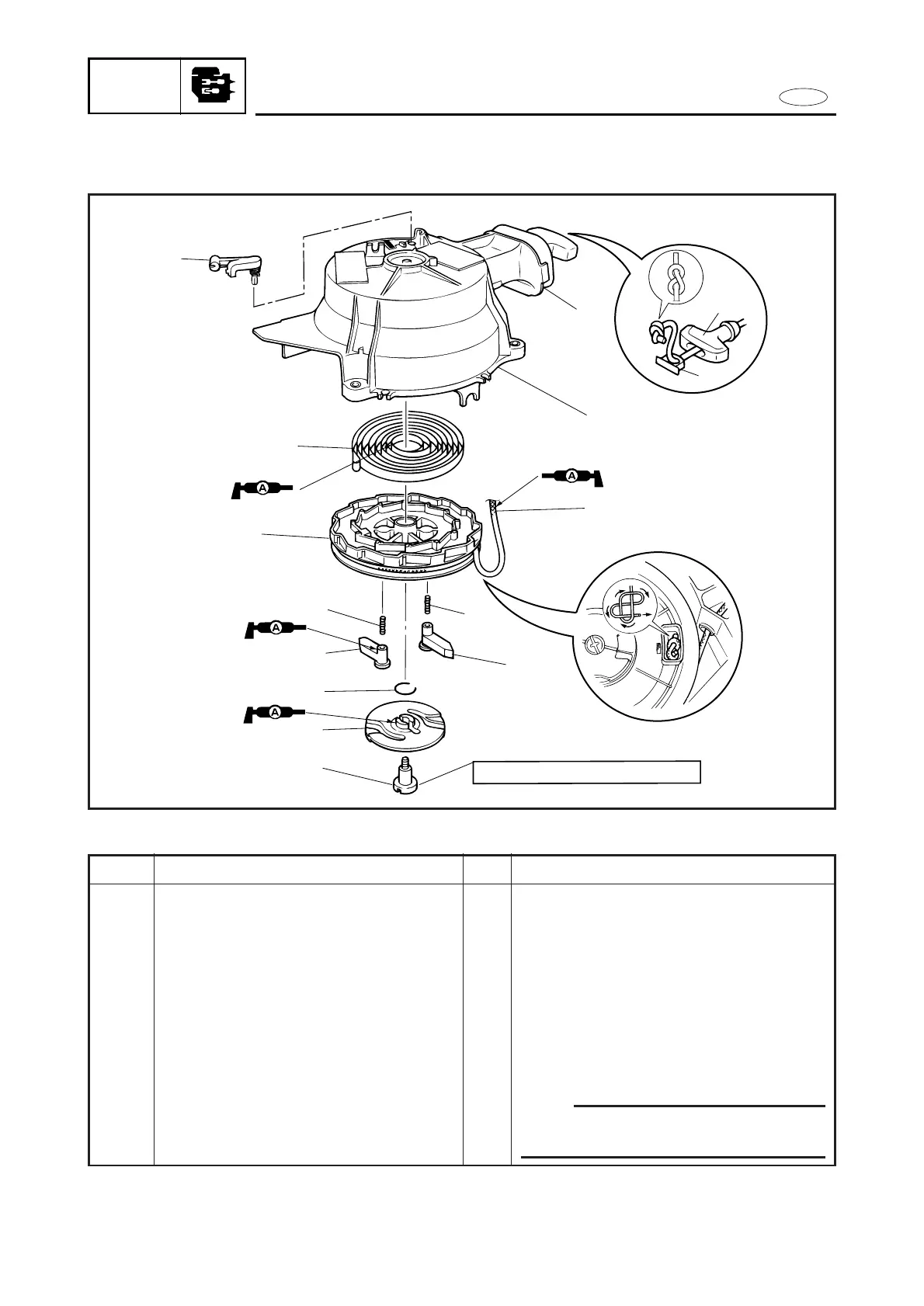

EXPLODED DIAGRAM
1
2
7
3
3
4
4
5
9
q
6
w
e
8
0
6.5 Nm (0.65 m•kg, 47 ft•lb)
5-2
REMOVAL AND INSTALLATION CHART
Step
1
2
3
4
5
6
7
8
9
=
Q’ty
1
1
2
2
1
1
1
1
1
Service points
Follow the left “Step” for disassembly.
NOTE:
Apply grease and make sure to reef
knot both ends, after installation.
Procedure/Part name
RECOIL STARTER DISASSEMBLY
Bolt (drive plate)
Drive plate
Drive pawl
Pawl springs
Sheave drum
Spiral spring
Clip (drive plate)
Plate (starter handle)
Starter rope
