E
FLYWHEEL ROTOR ASS’Y
POWR
SERVICE POINTS

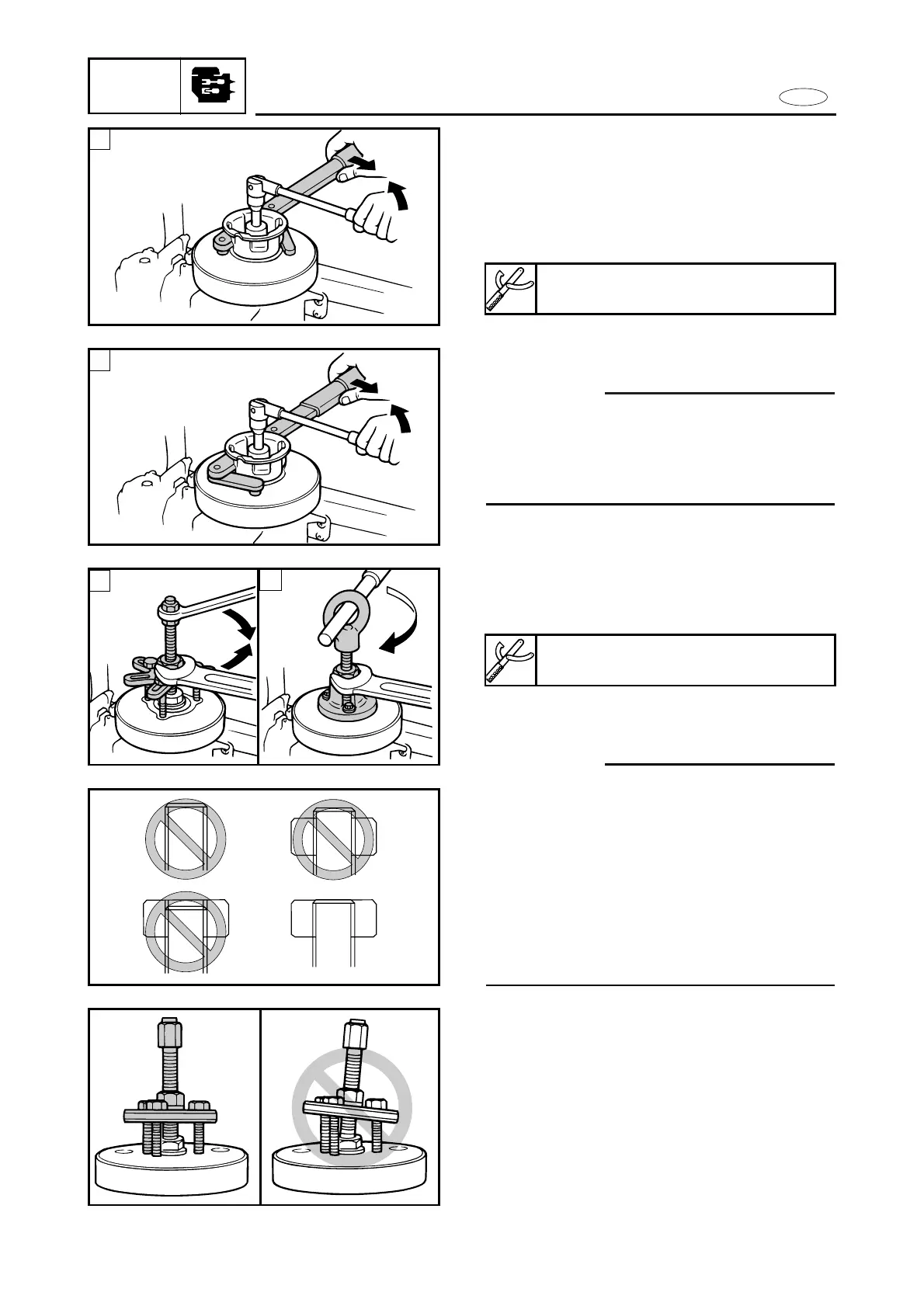

Flywheel rotor ass’y removal
1. Remove:
9Rotor nut
9Washer
9Starter pulley
A For USA and CANADA
B Except for USA and CANADA
cC
The major load should be applied in the
direction of the arrows. If the loads not
applied as shown, the flywheel holder
may easily slip off.
2. Remove:
9Flywheel rotor ass’y
9Woodruff key
A For USA and CANADA
B Except for USA and CANADA
cC
9Keep the nut side flush with the crank-
shaft end until the flywheel rotor ass’y
comes off the tapered portion of the
crankcase.
9To prevent damage to the engine or
tools, screw in the universal-puller set
bolts evenly and completely so that the
universal puller plate is parallel to the fly-
wheel rotor ass’y.
5-9
Flywheel holder:
YB-06139/90890-06522
Flywheel puller:
YB-06117/90890-06521
A
B
A
B
