UPPER CASE ASS’Y
BRKT

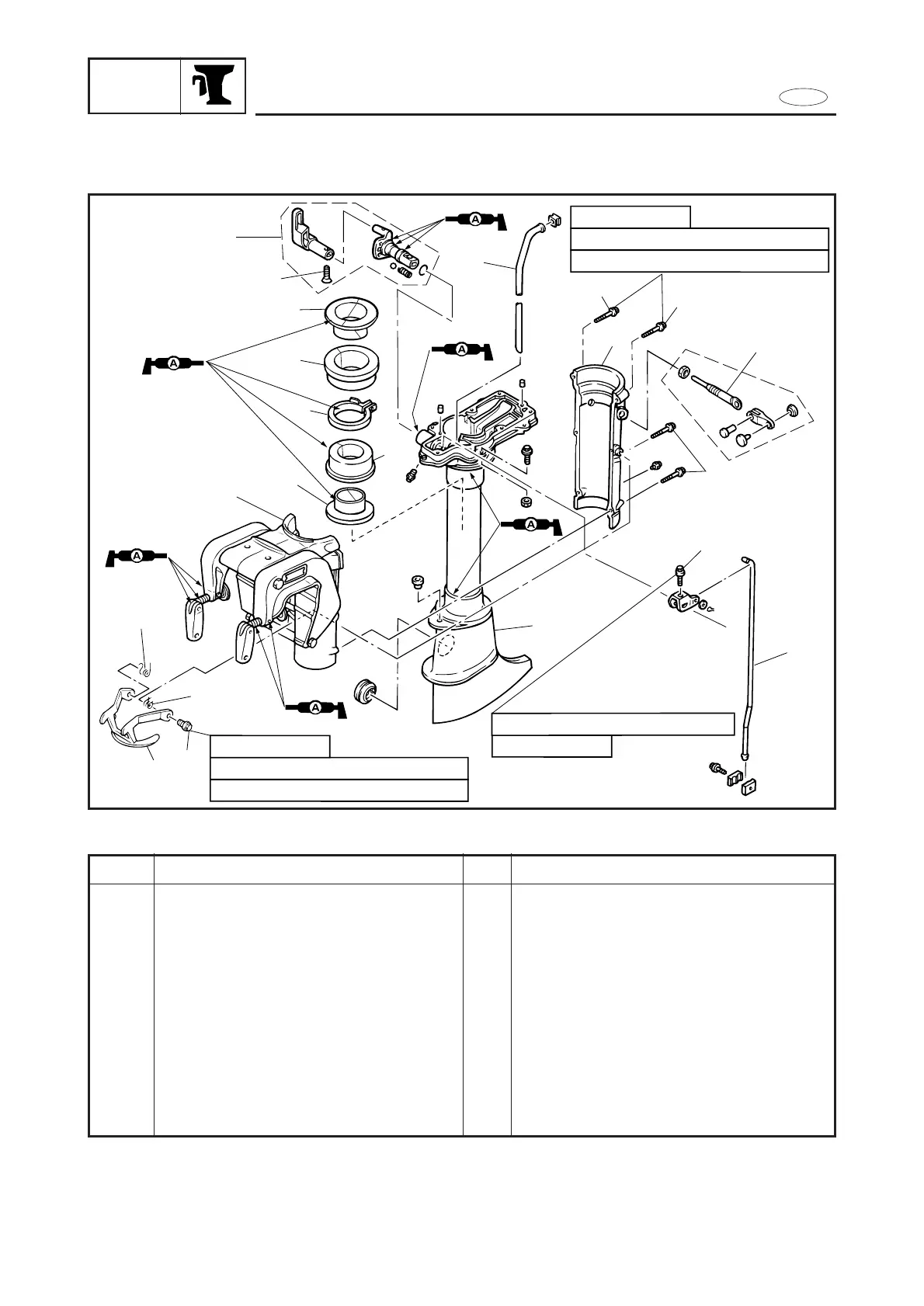

EXPLODED DIAGRAM
12
9
9
7
8
18
11
10
6
5
13
17
15
10
10
3
4
16
14
2
1
M6 x 25 mm
4.5 Nm (0.45 m•kg, 3.25 ft•lb)
1st 3 Nm (0.3 m•kg, 2.17 ft•lb)
2nd 8 Nm (0.8 m•kg, 5.8 ft•lb)
M6 x 10 mm
1st 3 Nm (0.3 m•kg, 2.17 ft•lb)
2nd 8 Nm (0.8 m•kg, 5.8 ft•lb)
M6 x 35 mm
7-8
REMOVAL AND INSTALLATION CHART
Step
9
10
11
12
13
14
15
16
17
18
Q’ty
2
6
1
1
1
1
1
1
1
1
Service points
Reverse the disassembly steps for installation.
Procedure/Part name
Spring
Bolt (swivel bracket)
Swivel bracket 2
Swivel bracket 1 ass’y
Pivot shaft bushing 2
Pivot shaft bushing 1
Pivot shaft bushing 3
Pivot shaft bushing 4
Friction plate
Upper casing
