ELECTRICAL ANALYSIS
ELEC
8 When measuring the peak voltage,
connect the peak voltage adaptor to
the digital tester and switch the selec-
tor to the DC voltage mode.
NOTE:
9Make sure that the adaptor leads are
properly installed in the digital circuit
tester.
9Make sure that the positive pin (the "+"
mark facing up as shown) on the adaptor
is installed into the positive terminal of
the tester.
9The test harness is needed for the follow-
ing tests.

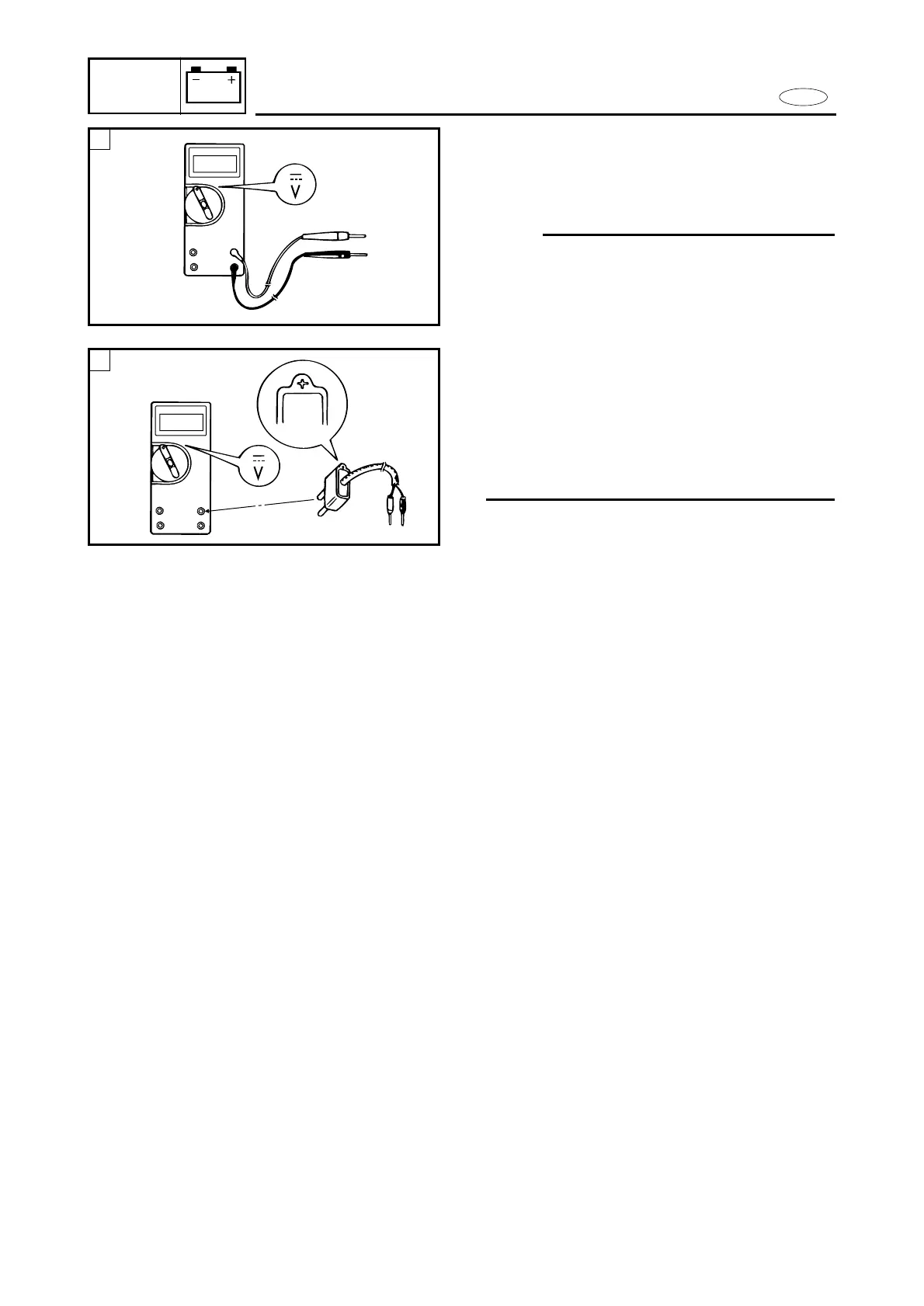

A Voltage measurement
B Peak voltage measurement
8-4
A
B
