Yamaha MX360 - Checking the Valve Lifter; Installing the Valve Lifter, Balancer Shaft, and Camshaft; Checking the Crankcase Cover

PISTON, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
3-50
1
2
3
4
5
6
7
8
9
10
ENGINE

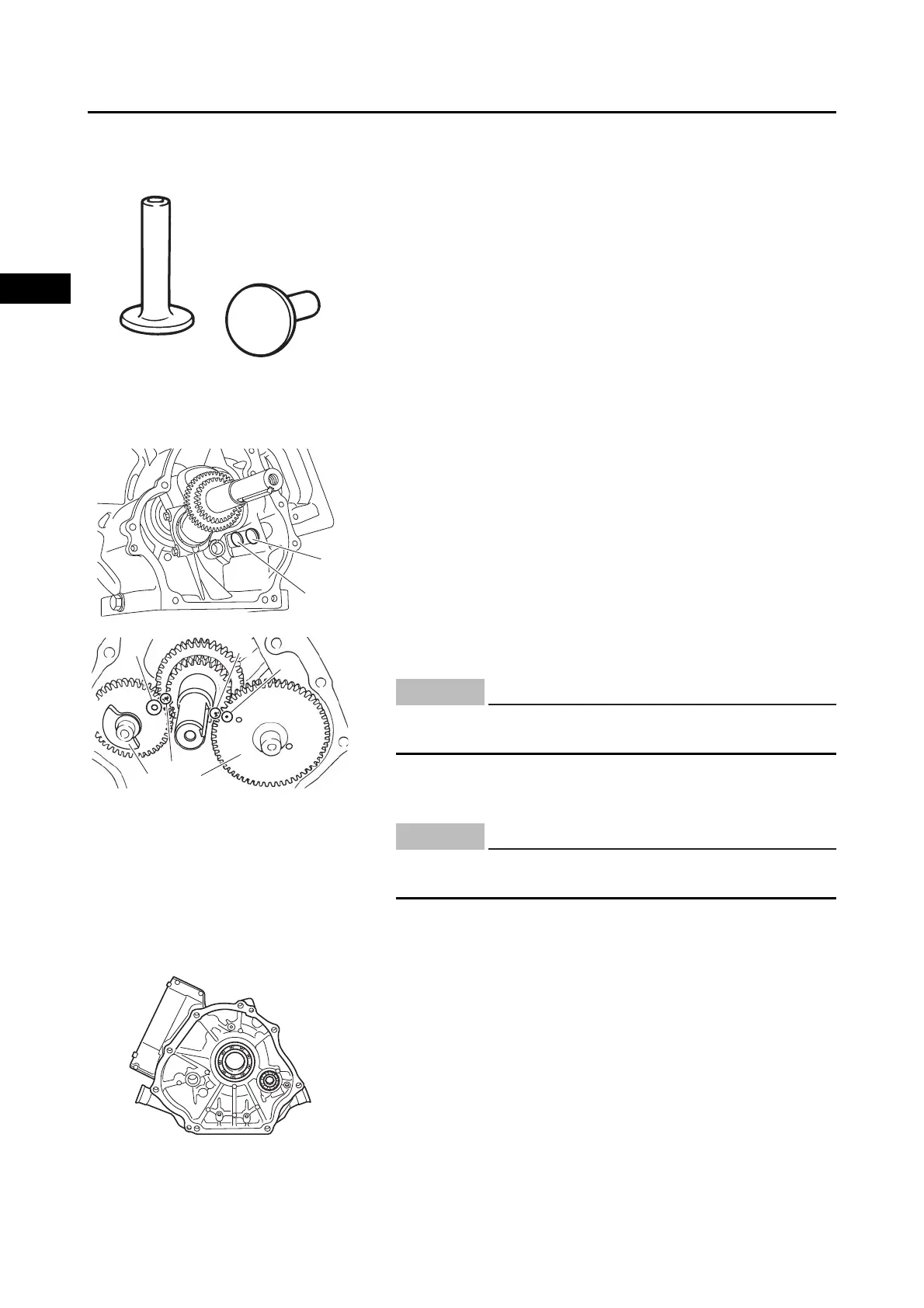

CHECKING THE VALVE LIFTER
1.
Check:
• Valve lifter
Damage  Re
place.
INSTALLING THE VALVE LIFTER, BALANCER
SHAFT, AND CAMSHAFT
1.
Install:
• Intake valve lifter “1”
• Exhaust valve lifter “2”
2.
Install:
• Balancer shaft “1”
3.
Install:
• Camshaft “2”
CHECKING THE CRANKCASE COVER
1.
Check:
• Crankcase cover
Damage  Replace.
• Bearing
Noise/wear/rotational failure  Replace.
1
2
12
a
b
c
d
Be sure to align the balancer shaft “1” gear mark “a”
with the crankshaft gear mark “b”.
Be sure to align the camshaft “2” gear mark “c” with
the crankshaft gear mark “d”.
