AIR FILTER
3-4
1
2
3
4
5
6
7
8
9
10
ENGINE
MX360
Order Job/Parts to remove Q’ty Remarks

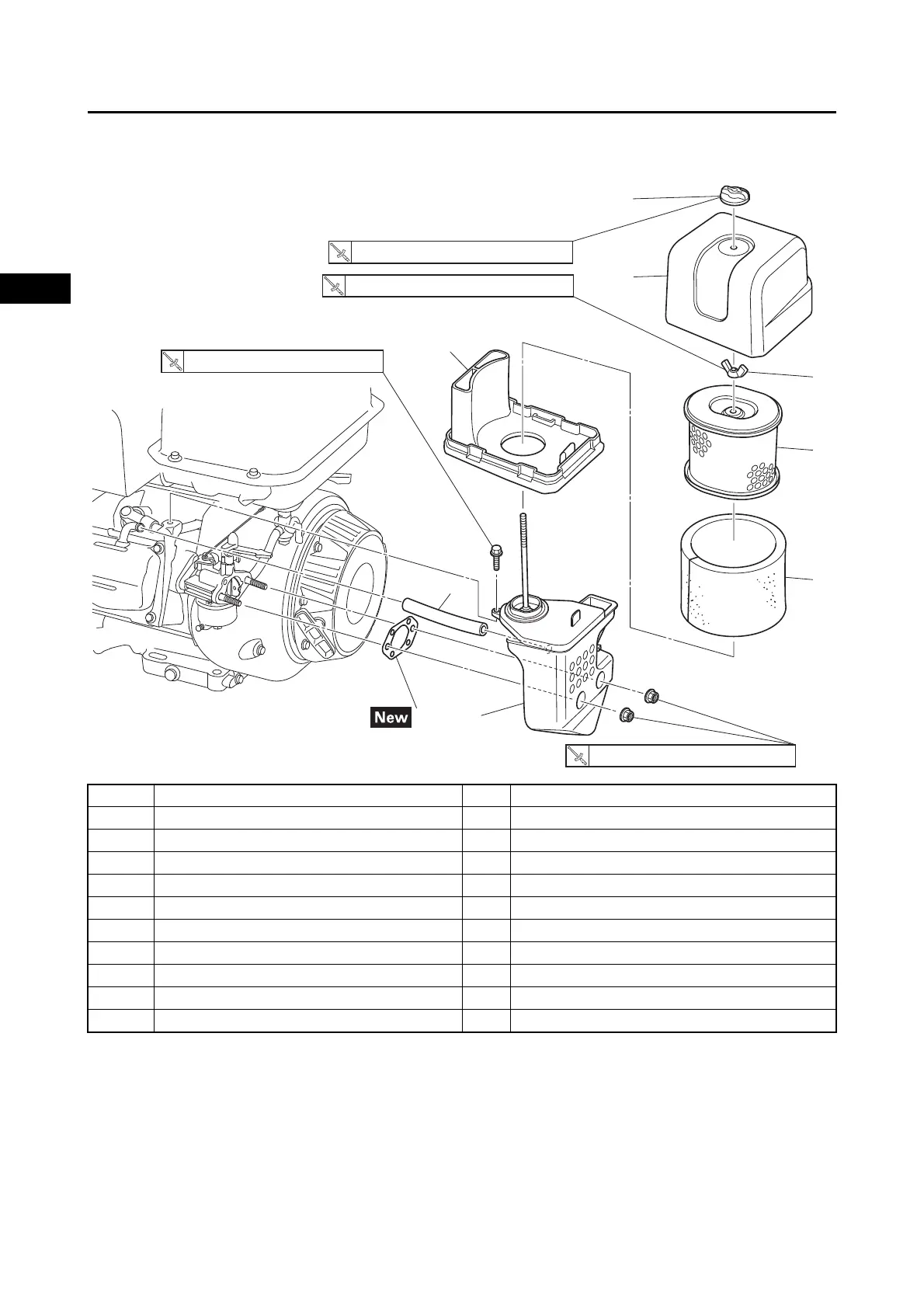

Removing the air filter Remove the parts in the order listed.
1 Air filter cover nut 1
2 Air filter cover 1
3 Air filter element nut 1
4 Air filter element case 1
5 Air filter element 1
6 Air filter case 1
7 Breather hose 1
8 Duct 1
9 Gasket 1
1
2
3
4
5
6
7
89
15 N・m (1.5 kgf・m, 11 lb・ft)
0.9 N・m (0.09 kgf・m, 0.66 lb・ft)
1.6 N・m (0.16 kgf・m, 1.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
