Yamaha MX360 - INSTALLING the THROTTLE LEVER ASSEMBLY (Equipped Models); Adjusting the Governor

GOVERNOR
3-30
1
2
3
4
5
6
7
8
9
10
ENGINE
4.
Adjust:
• Governor
(Refer to “ADJUSTING THE GOVERNOR” on page
3-30)

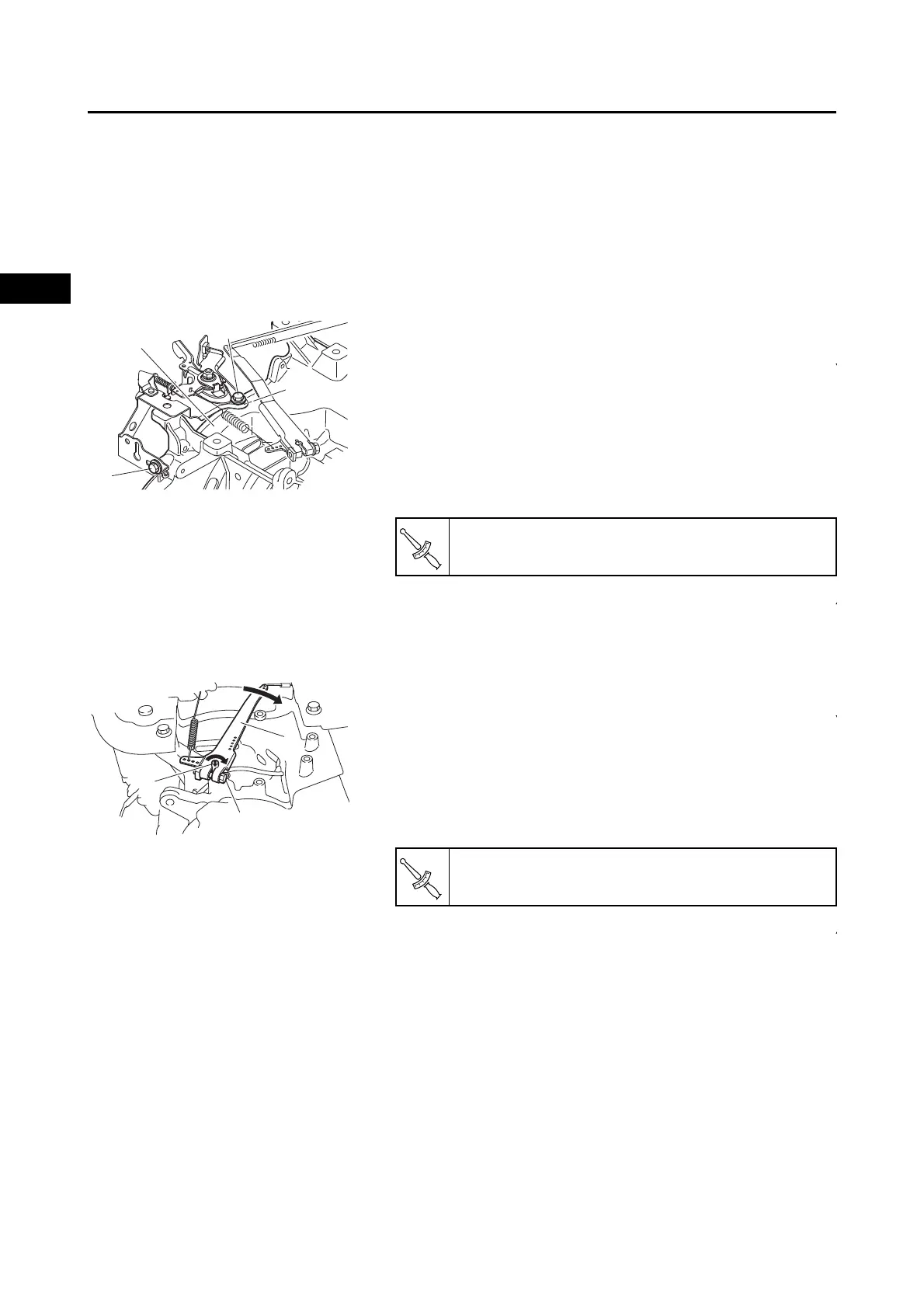

INSTALLING THE THROTTLE LEVER ASSEMBLY
(Equipped models)
1.
Tighten:
• Throttle lever assembly bolt
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Tighten the throttle lever assembly bolt “1” while
pushing the hole “a” for installation of the throttle
lever assembly against the crankcase “b”.
b. Tighten the throttle lever assembly bolt “2”.
c. Tighten the throttle lever assembly bolts “1” and “2”
to
the specified torque.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
ADJUSTING THE GOVERNOR
1.
Adjust:
• Governor
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Adjustment steps:
a. Loosen the governor arm bolt “1”.
b. Turn the governor arm “2” clockwise until it stops.
c. Turn the governor fork “3” clockwise until it stops.
d. Tighten the governor arm bolt “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
1
2
a
b
Throttle lever assembly bolt:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
T
R
.
.
1
2
3
Governor arm bolt:
8 N·m (0.8 kgf·m, 5.9 lb·ft)
T
R
.
.
