MUFFLER
3-8
1
2
3
4
5
6
7
8
9
10
ENGINE

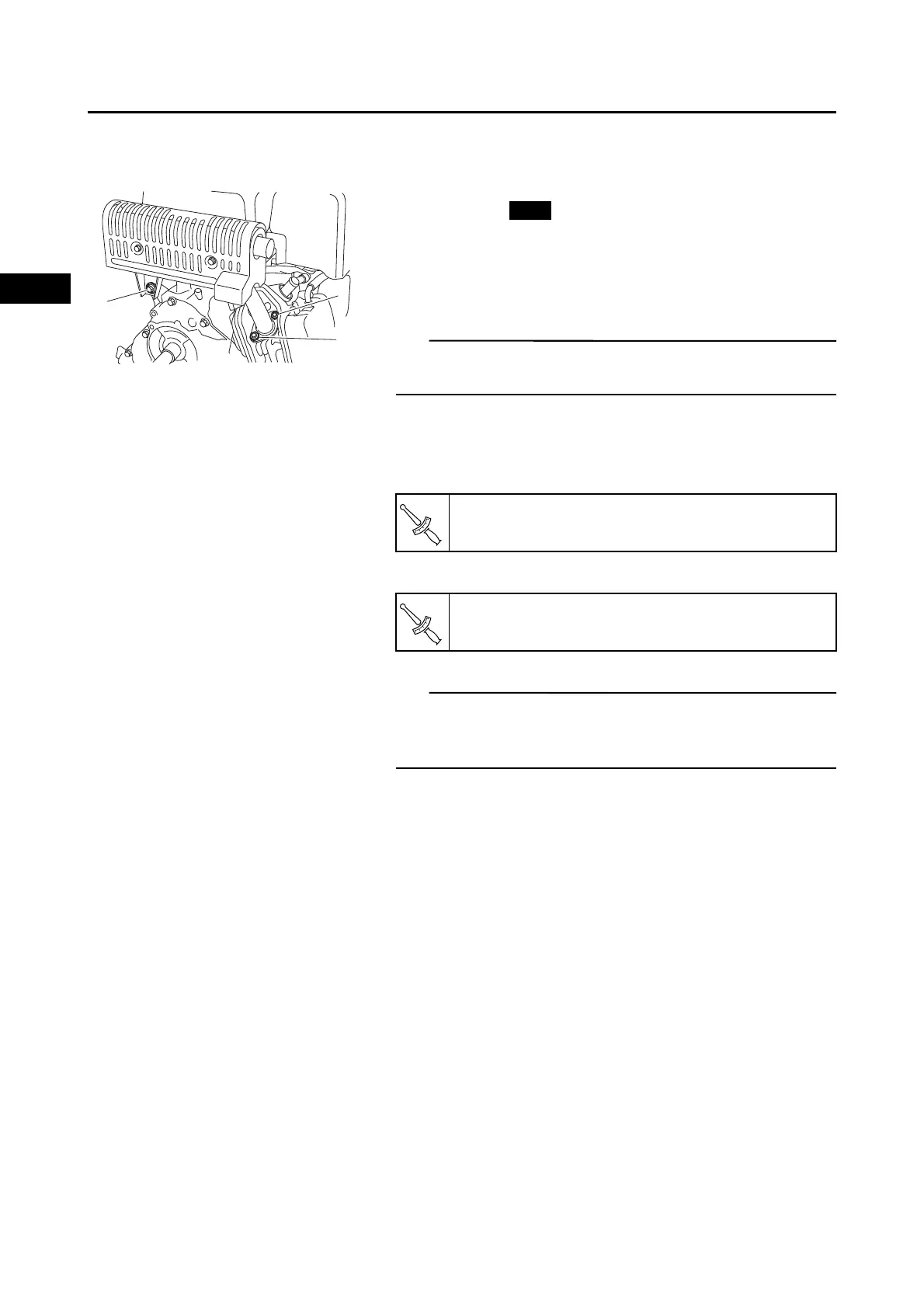

INSTALLING THE MUFFLER
1.
Install:
•Gasket
• Muffler assembly
• Muffler nut “1”
• Muffler nut “2”
• Muffler bolt “3”
TIP
Temporarily tighten the muffler nut “1”, muffler nut “2”, and
muffler bolt “3” until just comes in contact with the surface.
2.
Tighten:
• Muffler nut “1”
• Muffler nut “2”
• Muffler bolt “3”
TIP
Tighten the muffler nuts and muffler bolt to the specified
torque in order of muffler nut “1”, muffler nut “2”, and muf-
fler bolt “3”.
2
1
3
New
Muffler nut:
20 N·m (2.0 kgf·m, 15 lb·ft)
Muffler bolt:
20 N·m (2.0 kgf·m, 15 lb·ft)
T
R
.
.
T
R
.
.
