ENGINE
VALVE

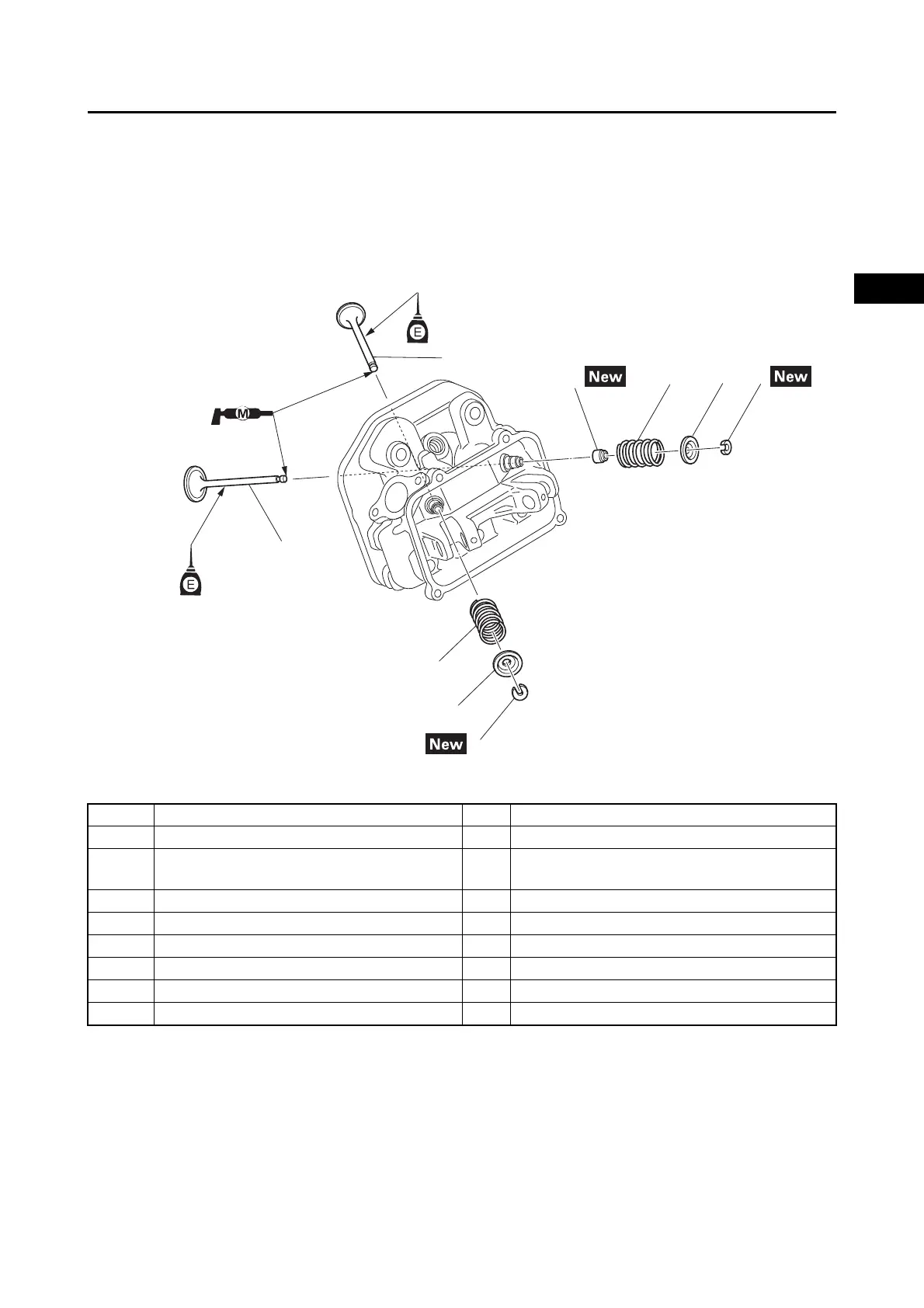

Order Job/Parts to remove Q’ty Remarks
Removing the valve Remove the parts in the order listed.
Cylinder head assembly
Refer to “CYLINDER HEAD COVER, CYLIN-
DER HEAD” on page 3-33.
1 Valve cotter 2
2 Valve spring retainer 2
3 Valve spring 2
4 Exhaust valve 1
5 Intake valve 1
6 Valve stem seal 1 Intake side only.
1
2
3
5
6
4
1
2
3
