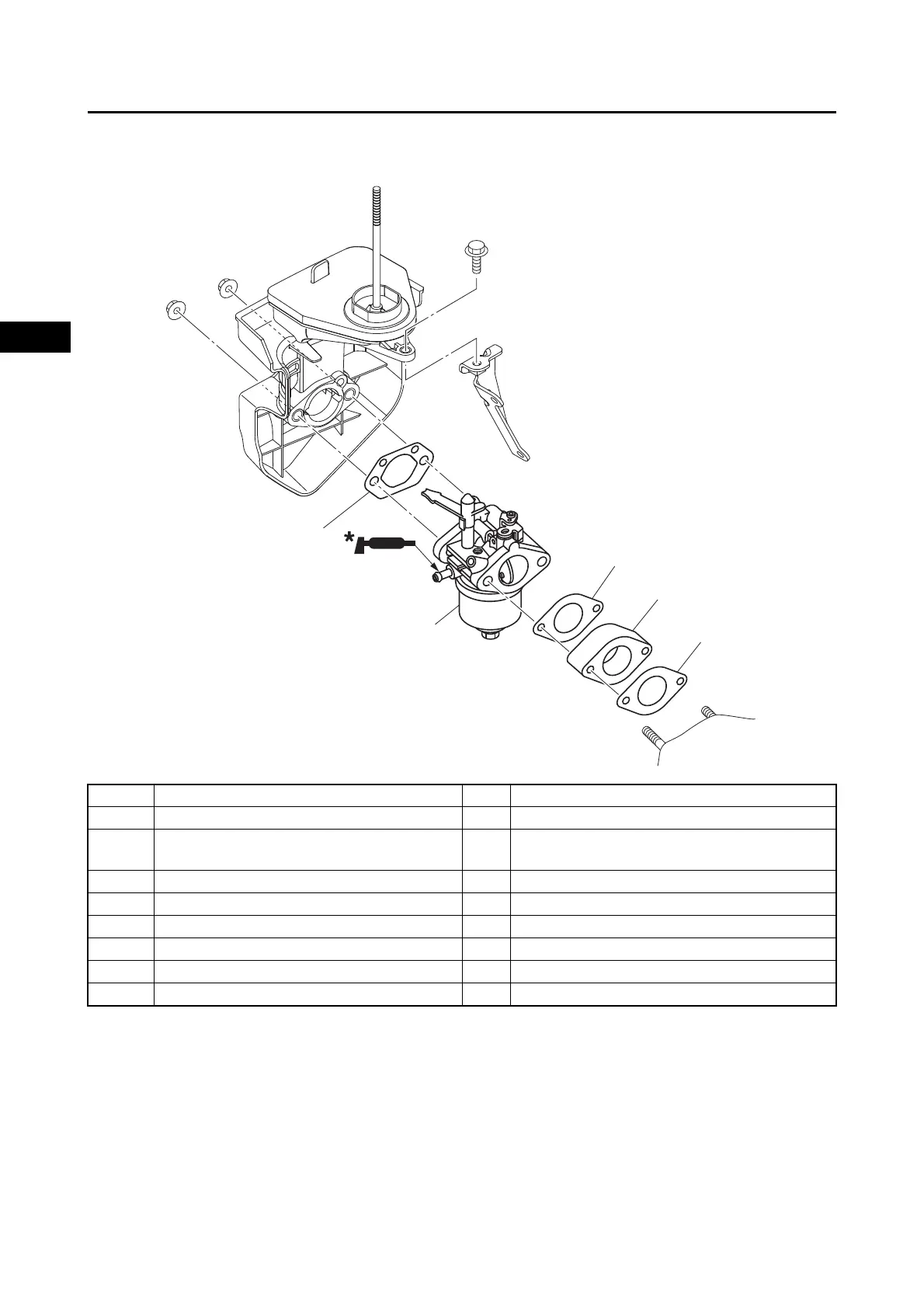

REMOVING THE CARBURETOR
4-2
1
2
3
4
5
6
7
8
9
10
CARBURETOR
MX360
*P-80®GRIP-IT
When installing the fuel hose, use a brush to apply a small amount of P-80®GRIP-IT as an insertion
auxiliary agent to the nipple of the installation-destination pipe.
Order Job/Parts to remove Q’ty Remarks
Removing the carburetor Remove the parts in the order listed.
Fuel tank
Refer to “FUEL TANK (Equipped models)” on
page 3-5.
Air filter Refer to “AIR FILTER” on page 3-3.
1Gasket 1
2 Carburetor assembly 1
3Gasket 1
4 Joint 1
5Gasket 1
1
2
3
4
5
