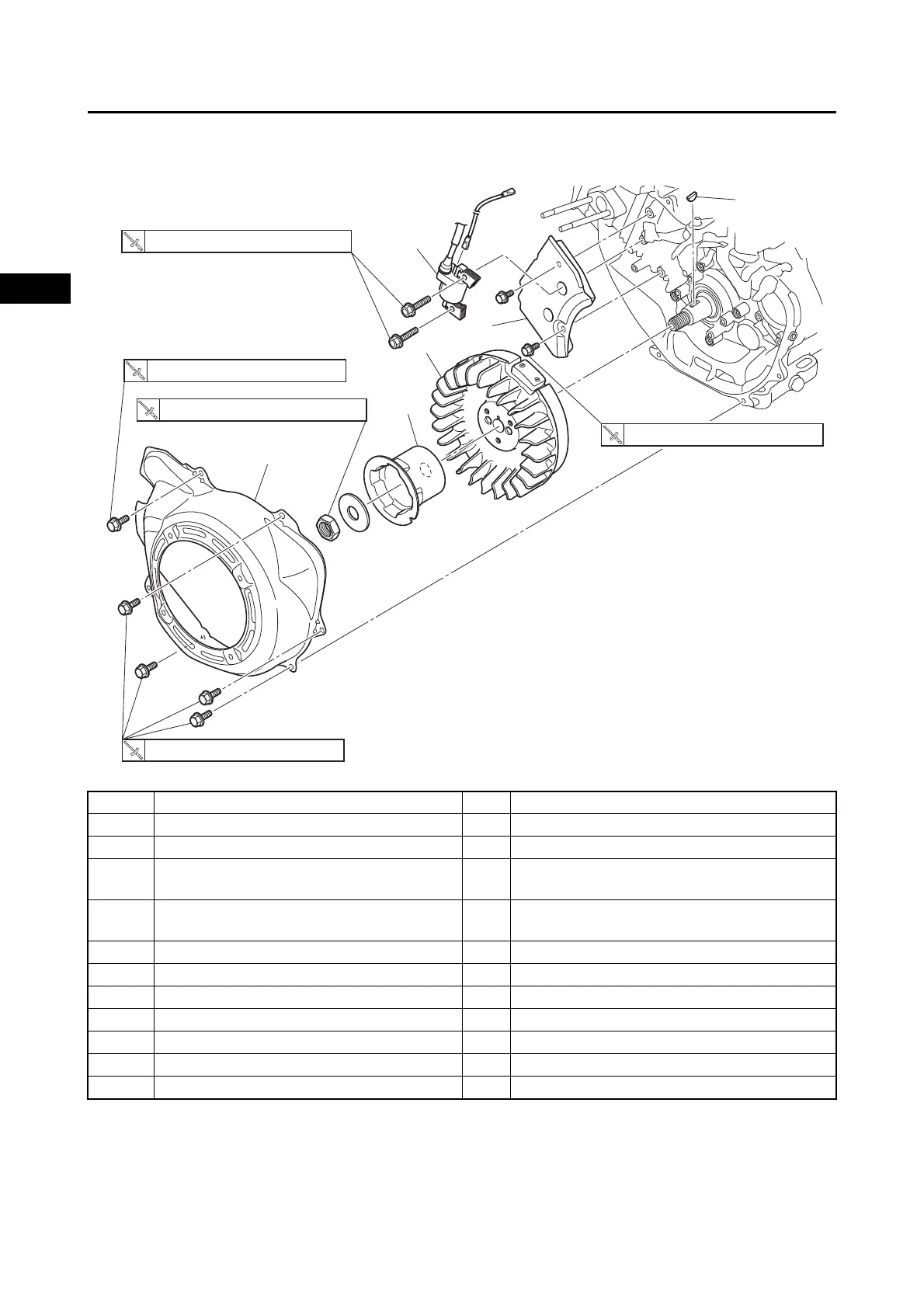

FLYWHEEL
3-18
1
2
3
4
5
6
7
8
9
10
ENGINE
MX360
Order Job/Parts to remove Q’ty Remarks
Removing the flywheel Remove the parts in the order listed.
Air filter Refer to “AIR FILTER” on page 3-3.
Fuel tank
Refer to “FUEL TANK (Equipped models)” on
page 3-5.
Carburetor
Refer to “REMOVING THE CARBURETOR”
on page 4-1.
Recoil starter assembly Refer to “RECOIL STARTER” on page 3-9.
1 Flywheel cover 1
2 TCI unit 1
3 Starter pulley 1
4 Flywheel 1
5 Woodruff key 1
6 Cylinder air shroud plate 1
1
2
3
4
6
5
10 N・m (1.0 kgf・m, 7.4 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
120 N・m (12 kgf・m, 89 lb・ft)
