GOVERNOR
3-26
1
2
3
4
5
6
7
8
9
10
ENGINE

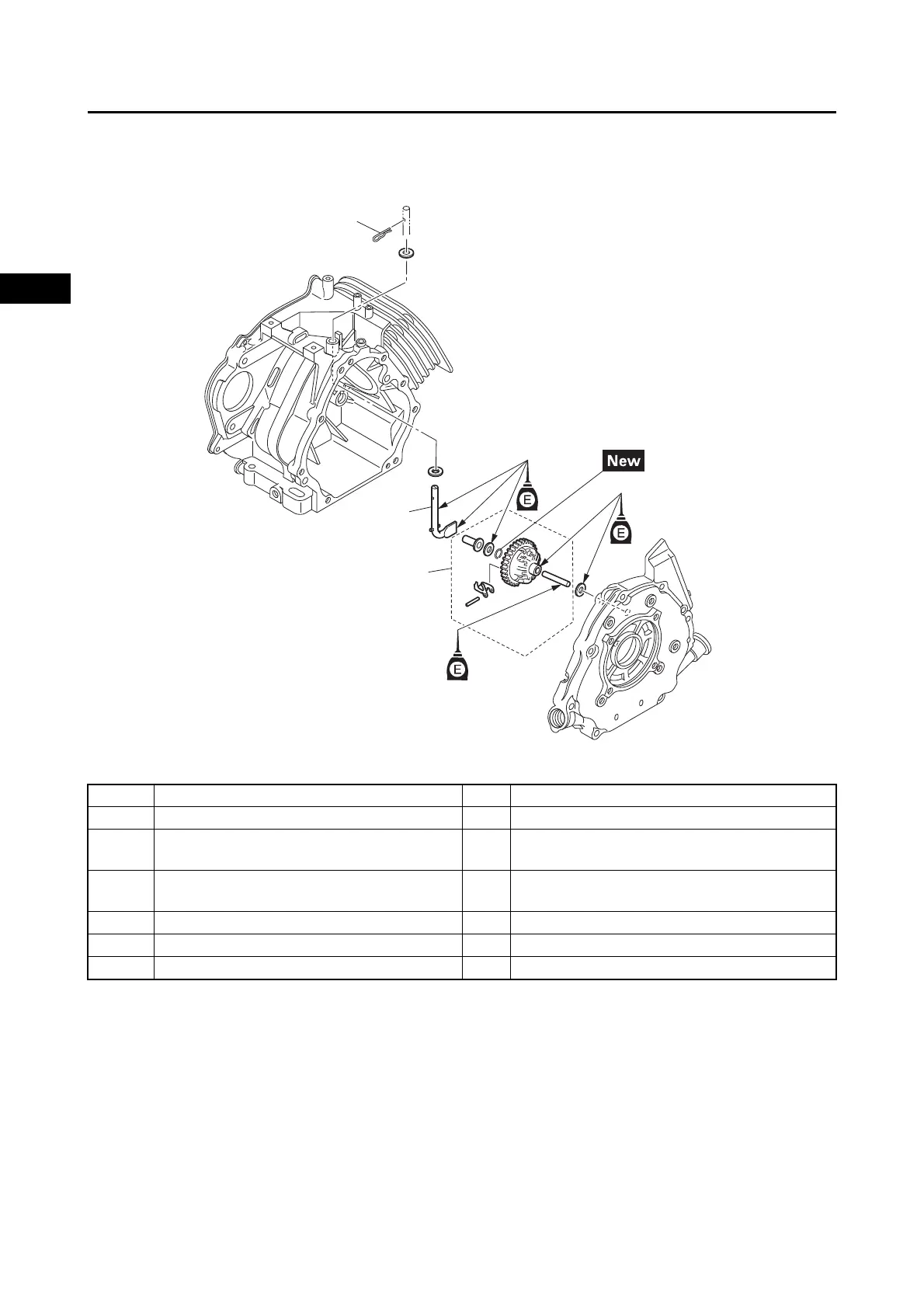

FLYWEIGHT SHAFT ASSEMBLY (MZ360/MZ400)
Order Job/Parts to remove Q’ty Remarks
Removing the flyweight shaft assembly Remove the parts in the order listed.
Engine switch and oil warning unit
Refer to “ENGINE SWITCH AND OIL
WARNING UNIT” on page 3-31.
Crankcase cover
Refer to “PISTON, CAMSHAFT, CRANK-
CASE, AND CRANKSHAFT” on page 3-44.
1 Clip 1
2 Governor fork 1
3 Flyweight shaft assembly 1
3
2
1
