Yamaha MX360 - Flyweight Shaft Assembly (Mx360)

GOVERNOR
3-27
1
2
3
4
5
6
7
8
9
10
ENGINE

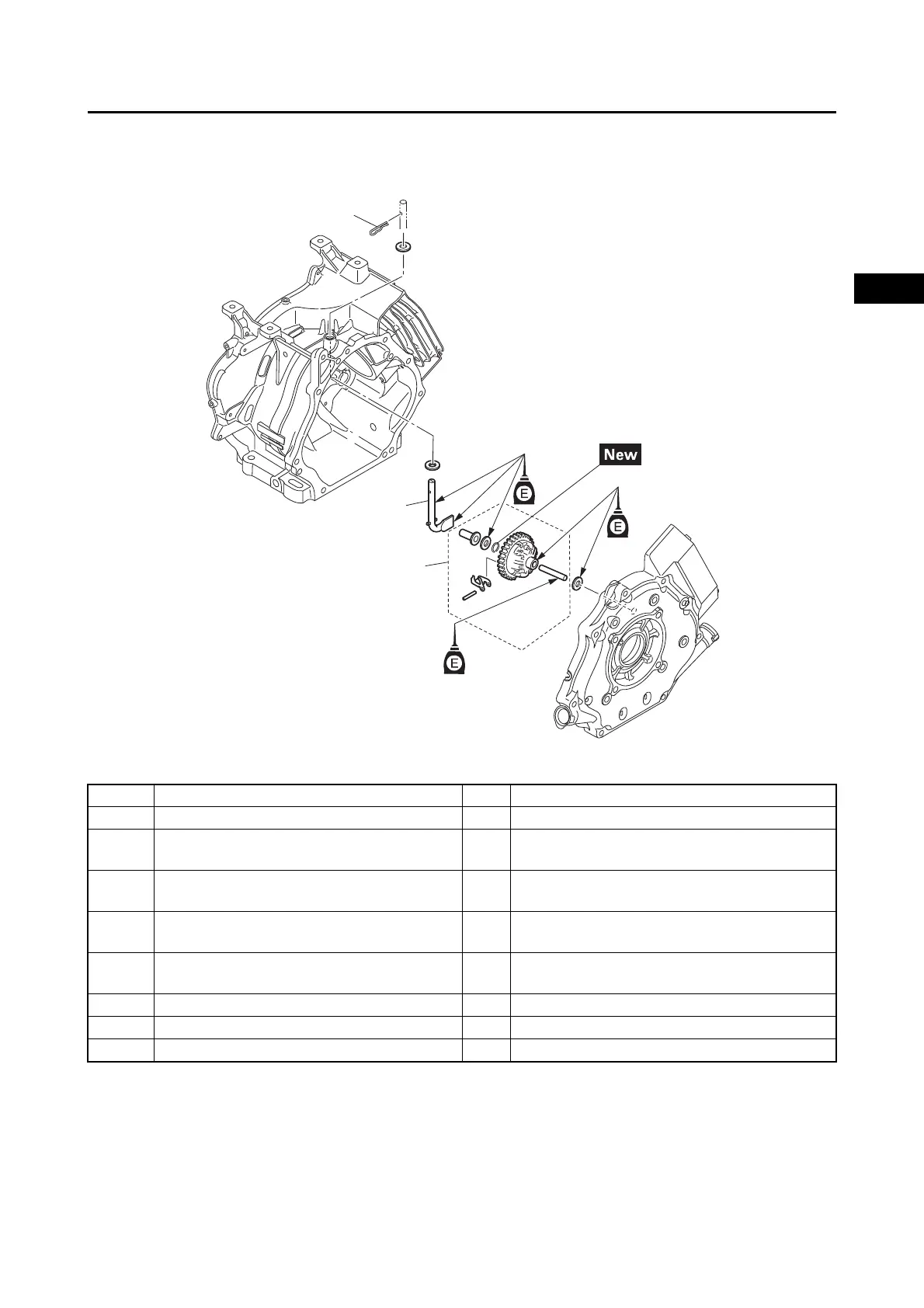

FLYWEIGHT SHAFT ASSEMBLY (MX360)
Order Job/Parts to remove Q’ty Remarks
Removing the flyweight shaft assembly Remove the parts in the order listed.
Fuel tank
Refer to “FUEL TANK (Equipped models)” on
page 3-5.
Fuel tank stay
Refer to “FUEL TANK (Equipped models)” on
page 3-5.
Engine switch and oil warning unit
Refer to “ENGINE SWITCH AND OIL
WARNING UNIT” on page 3-31.
Crankcase cover
Refer to “PISTON, CAMSHAFT, CRANK-
CASE, AND CRANKSHAFT” on page 3-44.
1 Clip 1
2 Governor fork 1
3 Flyweight shaft assembly 1
3
2
1
