PERIODIC MAINTENANCE
2-11
1
2
3
4
5
6
7
8
9
10
PERIODIC CHECKS AND ADJUSTMENTS
2.
Check:
• Fuel tank filter
Damage  Replace.
Dirt/clog  Clean.
TIP
Clean the fuel tank filter with clean gasoline, and then dry
it thoroughly.
3.
Install:
• Fuel tank filter
• Fuel tank cap

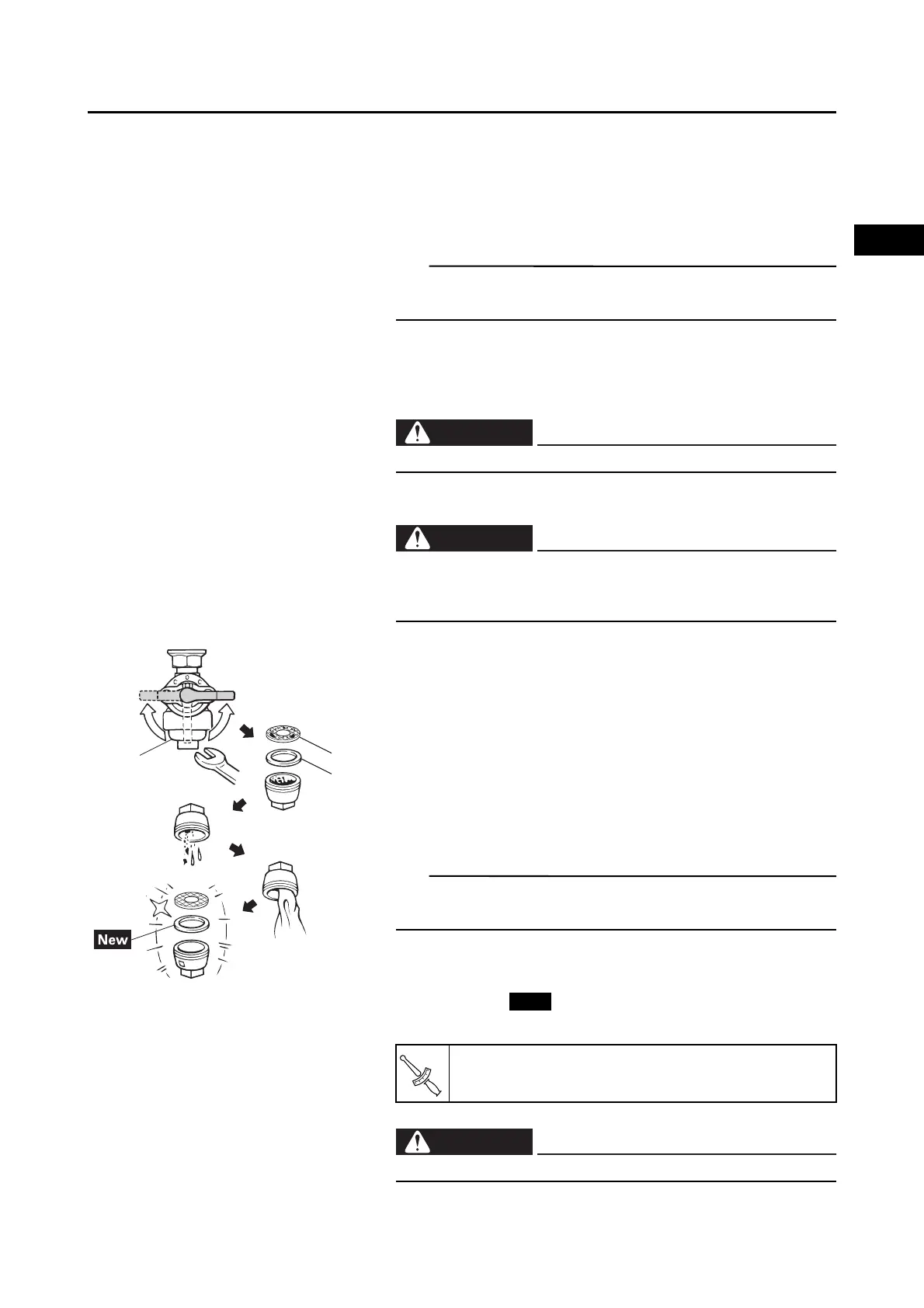

FUEL COCK STRAINER
1.
Turn the fuel cock lever to the “OFF” position.
2.
Remove:
• Strainer cup “1”
•Gasket “2”
• Fuel cock strainer “3”
3.
Check:
• Fuel cock strainer
Damage  Re
place.
Dirt/clog  Clean
.
TIP
Clean the fuel cock strainer with clean gasoline, and then
dry it thoroughly.
4.
Install:
• Fuel cock strainer
•Gasket
• Strainer cup
Make sure that the fuel tank cap is tightened securely.
Do not smoke, and keep away from open flames,
spa
rks, or any other source of fire when handling or in
the vicinity of fuel.
WARNING
WARNING
1
3
2
Strainer cup:
1.3 N·m (0.13 kgf·m, 0.95 lb·ft)
Make sure that the strainer cup is tightened securely.
New
T
R
.
.
WARNING
