Yamaha MX360 - Models); Adjusting the Engine Speed

PERIODIC MAINTENANCE
2-16
1
2
3
4
5
6
7
8
9
10

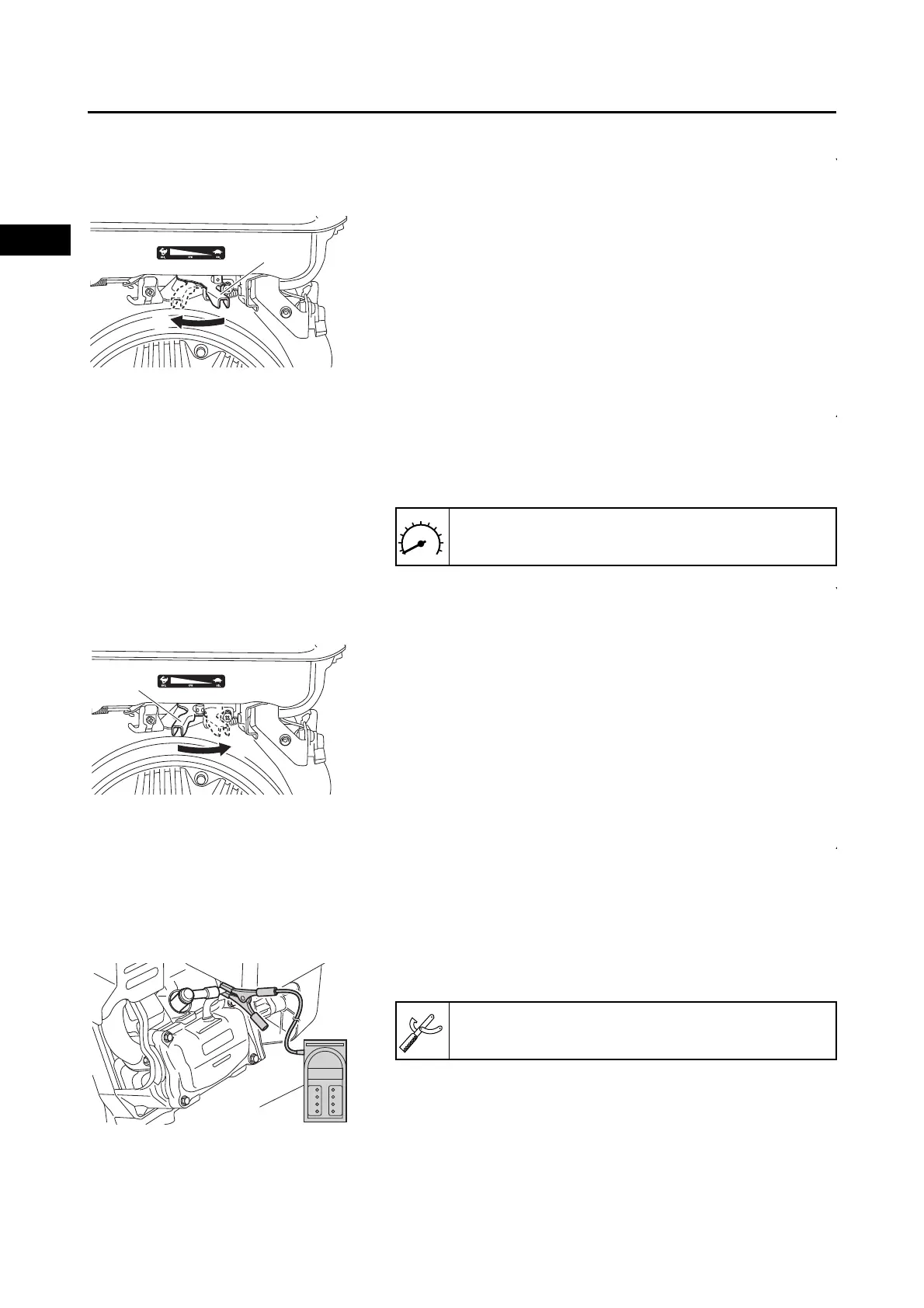

PERIODIC CHECKS AND ADJUSTMENTS
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Measurement steps:
a. Move the throttle lever “1” to the high engine speed
position “a”.
b. Check the high engine speed.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4.
Measure:
• Low engine speed (with no load)
Out of specification  Adjust.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Measurement steps:
a. Move the throttle lever “1” to the low engine speed
position “a”.
b. Check the low engine speed.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
ADJUSTING THE ENGINE SPEED (No throttle
lever models)
1.
Warm up the engine for several minutes.
2.
Attach:
• Digital tachometer “1”
1
a
Low engine speed:
1900–2100 r/min (MX360)
1
a
1
Digital tachometer:
90890-06760, YU-39951-B
