AIR FILTER
3-3
1
2
3
4
5
6
7
8
9
10
ENGINE

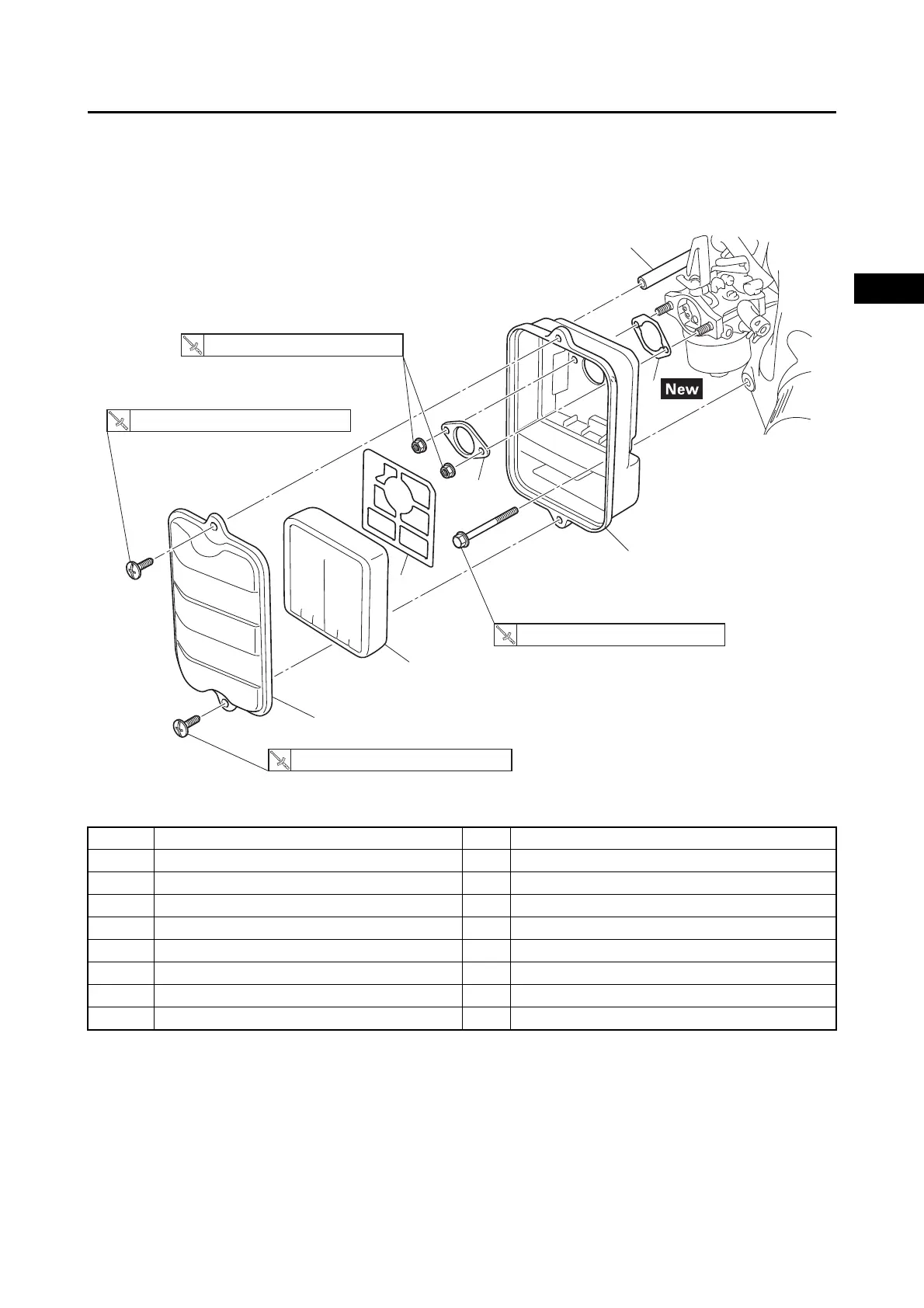

AIR FILTER
MZ360/MZ400
Order Job/Parts to remove Q’ty Remarks
Removing the air filter Remove the parts in the order listed.
1 Air filter cover 1
2 Air filter element 1
3 Element fitting plate 1
4 Plate 1
5 Breather hose 1
6 Air filter case 1
7 Gasket 1
1
2
3
6
4
7
5
10 N・m (1.0 kgf・m, 7.4 lb・ft)
1.6 N・m (0.16 kgf・m, 1.2 lb・ft)
1.6 N・m (0.16 kgf・m, 1.2 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft)
