PERIODIC CHECKS AND ADJUSTMENTS

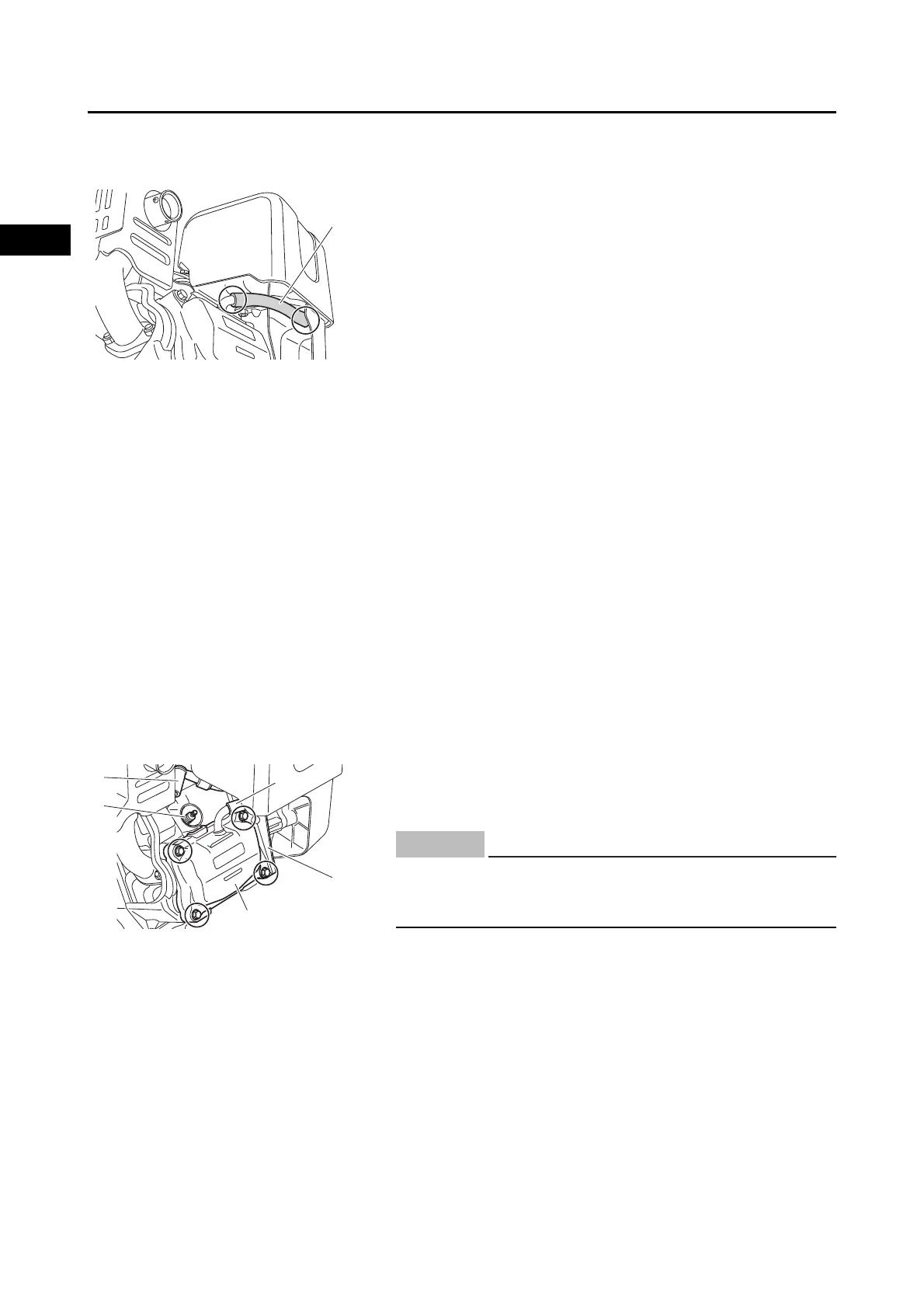

BREATHER HOSE
1.
Check:
• Breather hose “1”
Crack/damage  Rep
lace.
Poor connection  Co
nnect.
CYLINDER HEAD DECARBONIZATION
1.
Remove:
• Cylinder head assembly
(Refer to “CYLINDER HEAD COVER, CYLINDER
HEAD” on page 3-33)
2.
Eliminate:
• Carbon deposits
(Refer to “CHECKING THE CYLINDER HEAD” on
page 3-35)
3.
Install:
• Cylinder head assembly
(Refer to “INSTALLING THE CYLINDER HEAD
ASSEMBLY” on page 3-36)
ADJUSTING THE VALVE CLEARANCE
1.
Remove:
• Spark plug cap “1”
• Spark plug “2”
2.
Remove:
• Breather hose “3”
• Air filter case stay “4” (MX360)
• Cylinder head cover “5”
• Cylinder head cover gasket
1
1
2
3
4
5
Before removing the spark plug, use compressed air
to clean the cylinder head cover to prevent dirt from
falling into the engine.
NOTICE
