DISASSEMBLING THE CARBURETOR
4-3
1
2
3
4
5
6
7
8
9
10
CARBURETOR

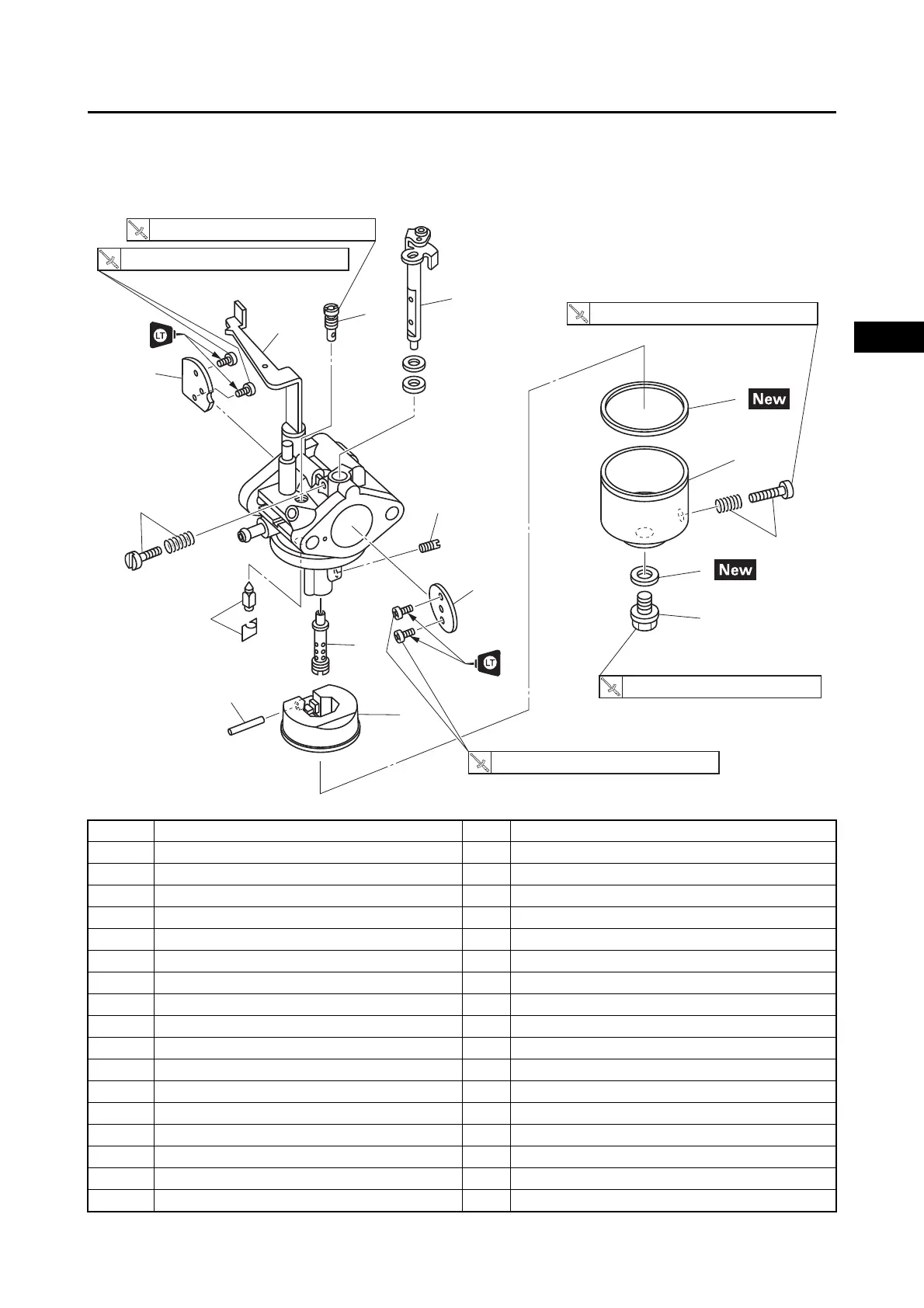

DISASSEMBLING THE CARBURETOR
MZ360/MZ400
Order Job/Parts to remove Q’ty Remarks
Disassembling the carburetor Disassemble the parts in the order listed.
1 Drain screw/spring 1/1
2 Float chamber bolt 1
3 Gasket 1
4 Float chamber 1
5 Gasket 1
6 Float pin 1
7 Float 1
8 Needle assembly 1
9 Main nozzle 1
10 Throttle valve 1
11 Throttle stop screw/spring 1/1
12 Main jet 1
13 Pilot jet 1
14 Throttle shaft 1
15 Choke valve 1
16 Choke lever 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0.7 N・m (0.07 kgf・m, 0.52 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
1.3 N・m (0.13 kgf・m, 0.95 lb・ft)
1.2 N・m (0.12 kgf・m, 0.88 lb・ft)
0.7 N・m (0.07 kgf・m, 0.52 lb・ft)
