Yamaha MX360 - CHECKING the STARTER MOTOR OPERATION (Equipped Models); Checking the Wire Harness

ELECTRICAL COMPONENTS
5-14
1
2
3
4
5
6
7
8
9
10
ELECTRICAL
b. Check the oil level switch continuity.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
CHECKING THE STARTER MOTOR OPERATION
(Equipped models)
1.
Check:
• Starter motor operation
Does not operate  Perform the electric starting
system troubleshooting, starting with step 4.
(Refer to “ELECTRIC STARTING SYSTEM
(Equipped models)” on page 6-2)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

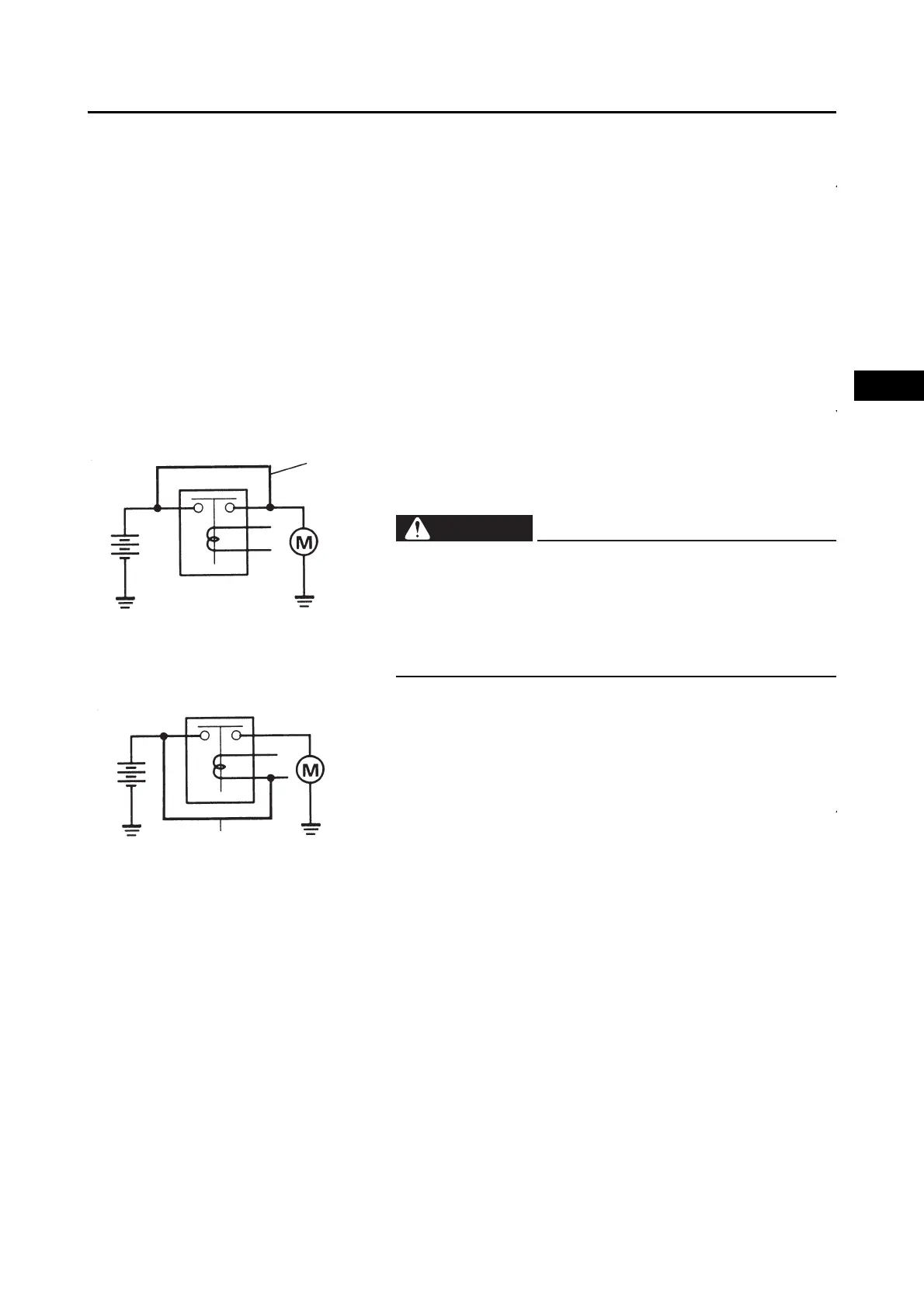

a. Connect the jumper lead “1” to the starter relay ter-
minals on the battery side and the starter motor
side
.
b. Check the starter motor operation.
c. Disconnect the engine switch coupler.
d. Connect the jumper lead “1” to the starter relay
coupler
.
e. Check the starter motor operation.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
CHECKING THE WIRE HARNESS
1.
Check:
• Terminal of the connector
Contamination, rust or disconnection  Clean or
replace the connector.
1
• A wire that is used as a jumper lead must have at
least the same capacity of the battery lead, other-
wise the jumper lead may burn.
• This check is likely to produce sparks, therefore,
make sure no flammable gas or fluid is in the vicin-
ity.
WARNING
1
