ENGINE SWITCH AND OIL WARNING UNIT
3-31
1
2
3
4
5
6
7
8
9
10
ENGINE

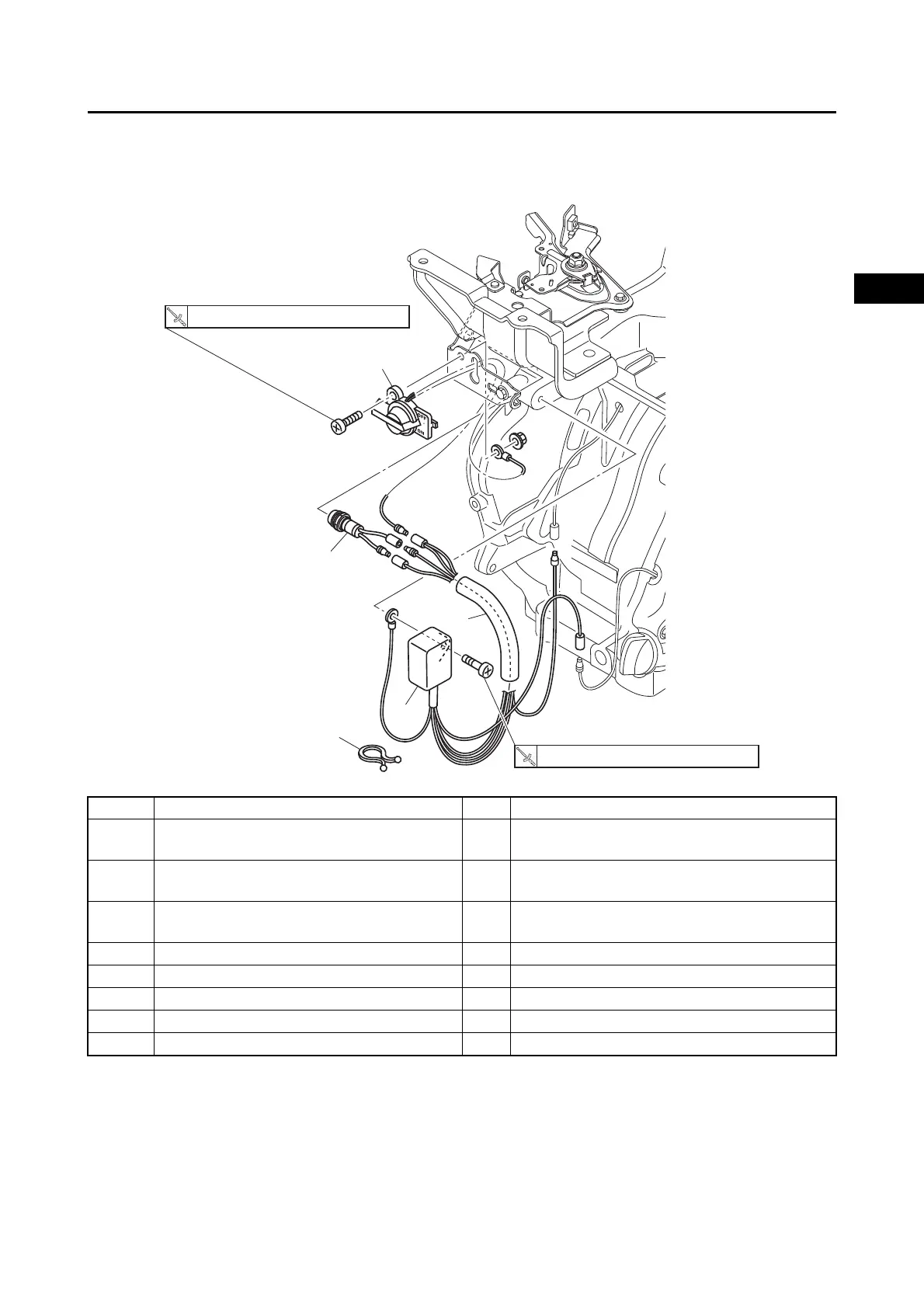

ENGINE SWITCH AND OIL WARNING UNIT
Order Job/Parts to remove Q’ty Remarks
Removing the engine switch and oil
warning unit
Remove the parts in the order listed.
Fuel tank
Refer to “FUEL TANK (Equipped models)” on
page 3-5.
Fuel tank stay
Refer to “FUEL TANK (Equipped models)” on
page 3-5.
1 Engine switch 1
2 Oil warning light 1 With oil warning model
3 Wire harness protector 1 With oil warning model
4 Oil warning unit 1 With oil warning model
5 Clamp 1 With oil warning model
4.5 N・m (0.45 kgf・m, 3.3 lb・ft)
1
2
3
4
5
4.5 N・m (0.45 kgf・m, 3.3 lb・ft)
