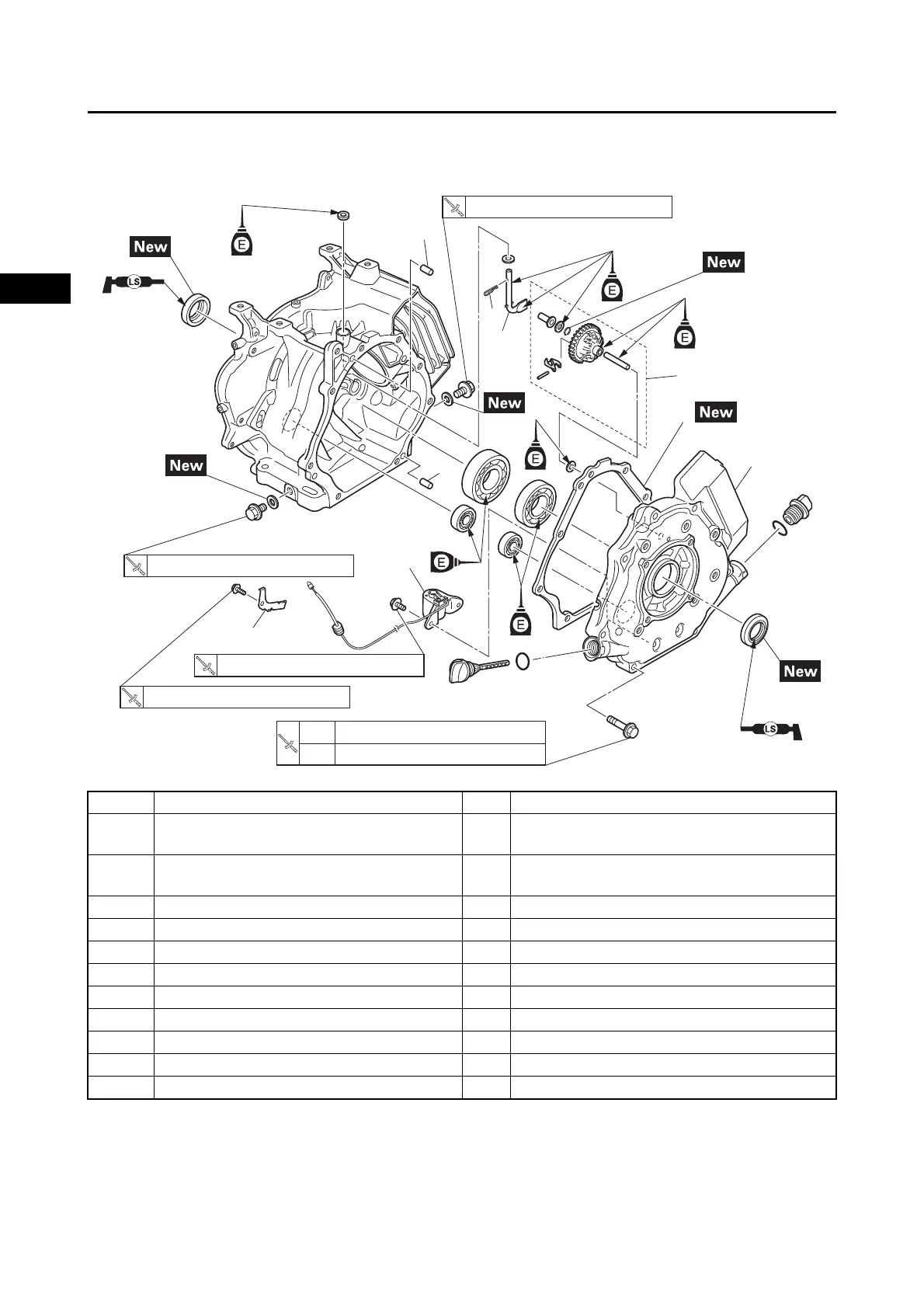

PISTON, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
3-46
1
2
3
4
5
6
7
8
9
10
ENGINE
MX360
Order Job/Parts to remove Q’ty Remarks
Removing the piston, camshaft, crank-
case, and crankshaft
Remove the parts in the order listed.
Cylinder head assembly
Refer to “CYLINDER HEAD COVER, CYLIN-
DER HEAD” on page 3-33.
Flywheel Refer to “FLYWHEEL” on page 3-17.
1 Crankcase cover 1
2 Gasket 1
3 Dowel pin 2
4 Clamp 1
5 Oil level switch 1
6 Flyweight shaft assembly 1
7 Clip 1
8 Governor fork 1
1
2
3
3
4
5
6
7
8
27 N・m (2.7 kgf・m, 20 lb・ft)
27 N・m (2.7 kgf・m, 20 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
1st
2nd
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
