RECOIL STARTER
3-9
1
2
3
4
5
6
7
8
9
10

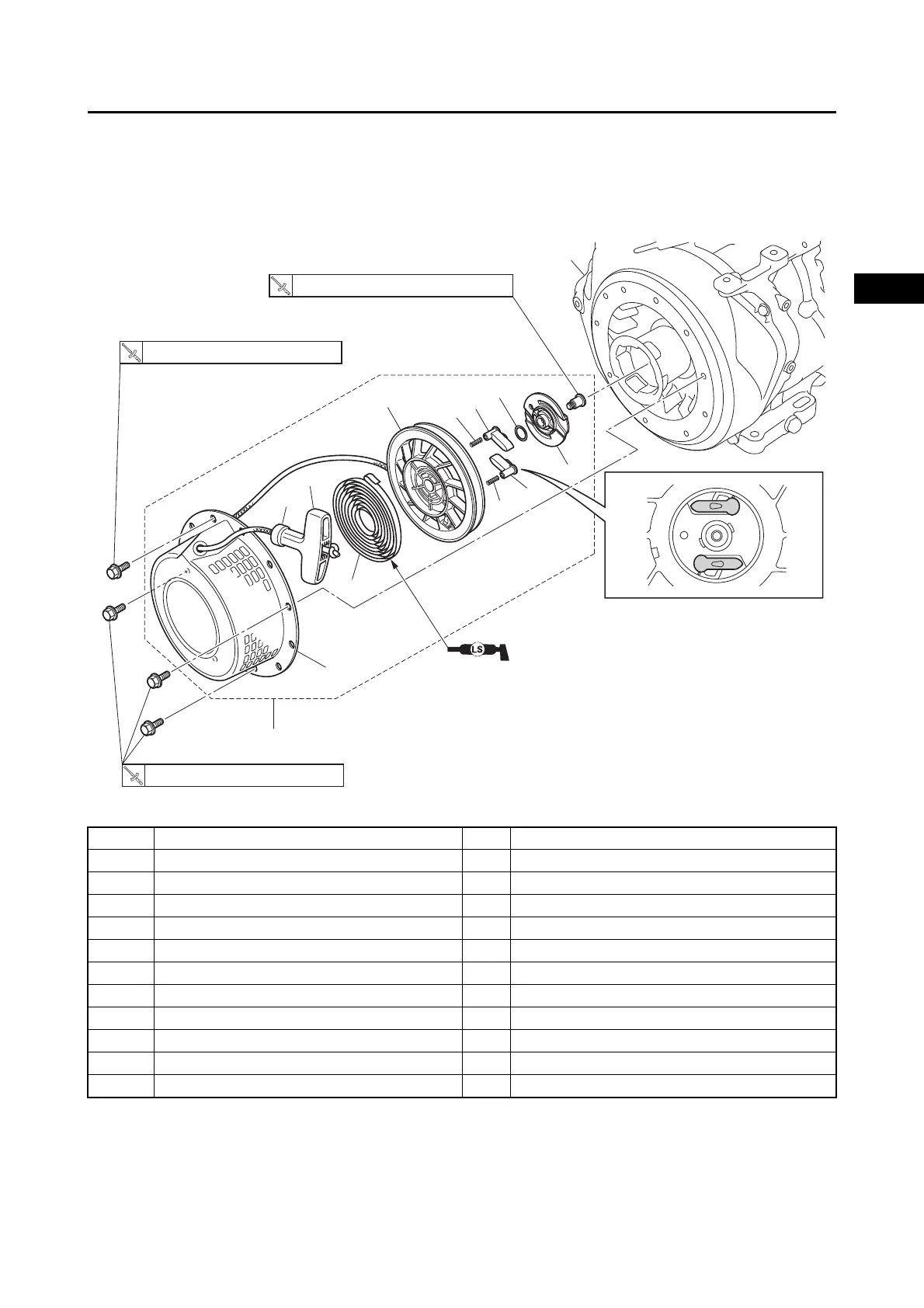

ENGINE
RECOIL STARTER
MZ360/MZ400
Order Job/Parts to remove Q’ty Remarks
Removing the recoil starter Remove the parts in the order listed.
1 Recoil starter assembly 1
2 Starter handle 1
3 Drive plate 1
4 Clip 1
5 Drive pawl 2
6 Spring 2
7 Sheave drum 1
8 Starter spring 1
9 Starter case 1
10 Starter rope 1
1
2
3
4
5
5
6
6
7
8
9
10
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
5.4 N・m (0.54 kgf・m, 4.0 lb・ft)
