RECOIL STARTER
3-15
1
2
3
4
5
6
7
8
9
10
ENGINE
2.
Check:
•Drive pawls “1”
• Drive plate “2”
Wear/damage  Replace.
• Springs “3”
• Compression spring “4”
Cracks/damage  Replace.

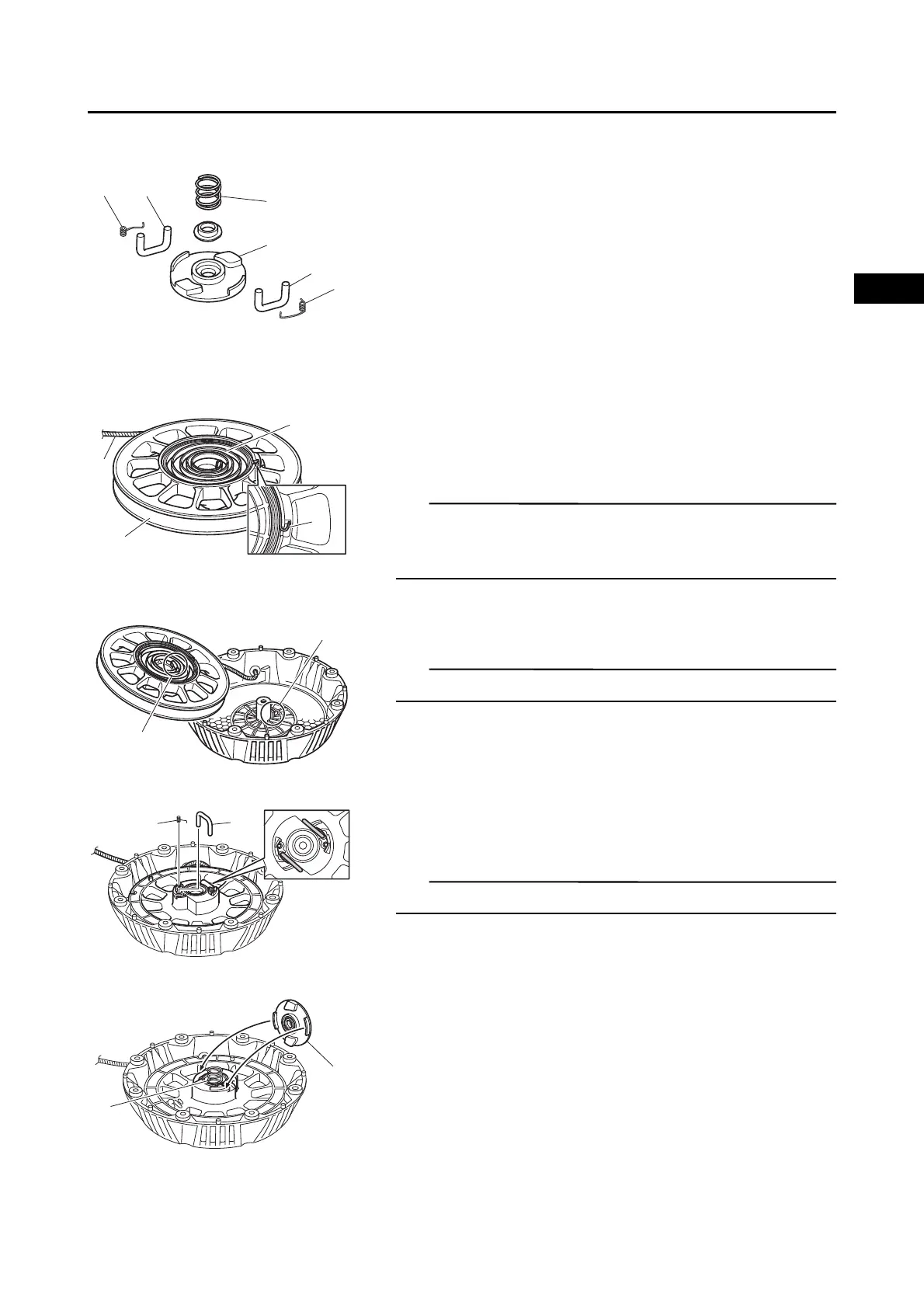

ASSEMBLING THE RECOIL STARTER (MX360)
1.
Install:
• Starter rope “1”
• Starter spring “2”
• Sheave drum “3”
TIP
Engage the spring hook “a” with the drum slit, then wind
the spring counterclockwise into the drum from the larger
to the smaller diameter.
2.
Install:
• Sheave drum assembly
TIP
Engage the spring hook “a” with the starter case hook “b”.
3.
Install:
• Springs “1”
•Drive pawls “2”
TIP
Set the ends of the springs “1” outside the drive pawls “2”.
4.
Install:
• Compression spring “1”
• Drive plate/Clip “2”
31
4
2
1
3
1
2
3
a
a
b
1
2
1
2
