FUEL TANK (Equipped models)
3-5
1
2
3
4
5
6
7
8
9
10
ENGINE

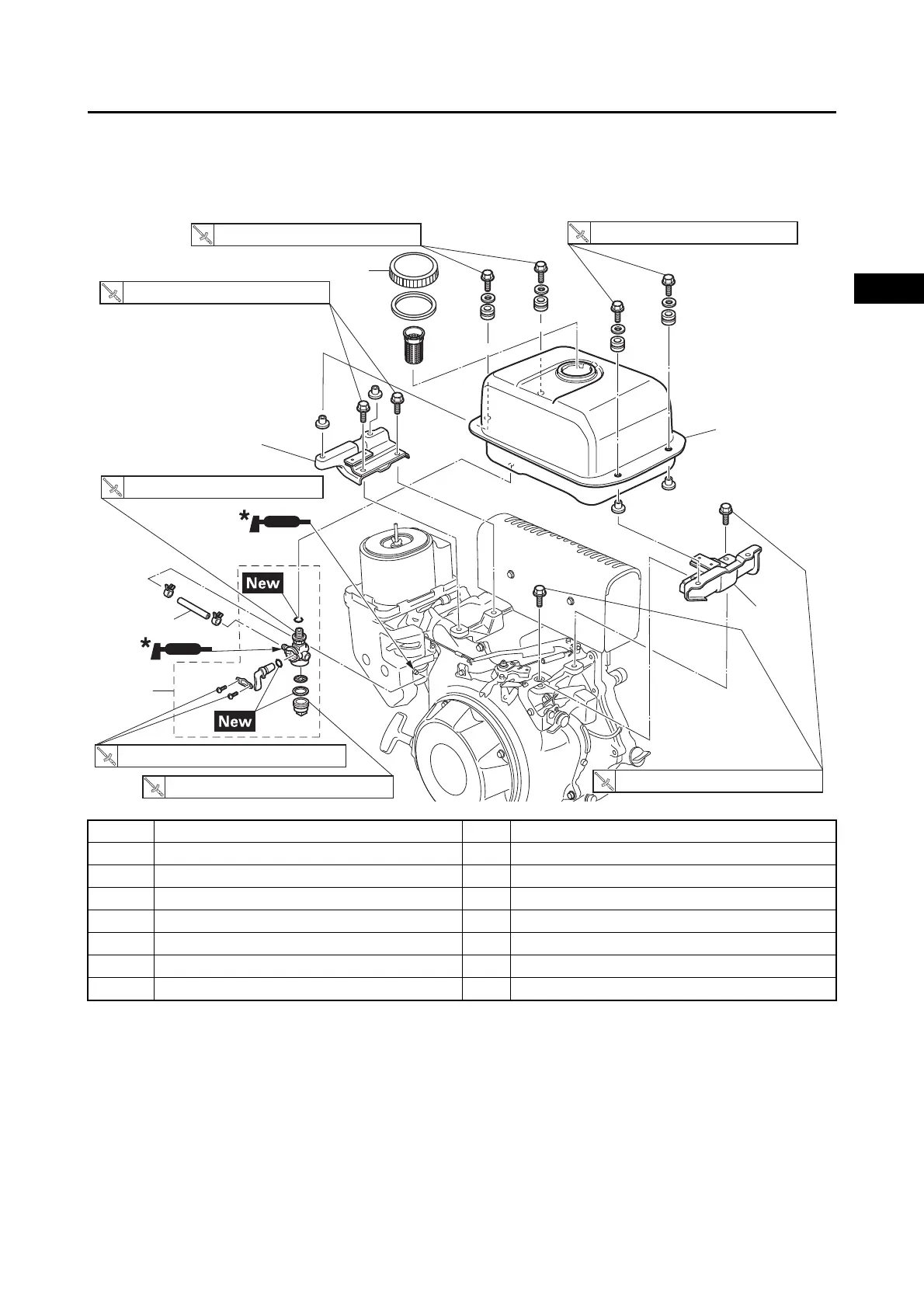

FUEL TANK (Equipped models)
EXCEPT FOR MX360C46A5
*P-80®GRIP-IT
When installing the fuel hose, use a brush to apply a small amount of P-80®GRIP-IT as an insertion
auxiliary agent to the nipple of the installation-destination pipe.
Order Job/Parts to remove Q’ty Remarks
Removing the fuel tank Remove the parts in the order listed.
1 Fuel hose 1 Turn the fuel cock lever to the “OFF” position.
2Fuel tank 1
3 Fuel tank stay 1 1
4 Fuel tank stay 2 1
5 Fuel tank cap 1
6 Fuel cock assembly 1
3
4
6
5
1
2
1.3 Nm (0.13 kgfm, 0.95 lbft)
6 Nm (0.6 kgfm, 4.4 lbft)
10 Nm (1.0 kgfm, 7.4 lbft)
10 Nm (1.0 kgfm, 7.4 lbft)
29 Nm (2.9 kgfm, 21 lbft)
29 Nm (2.9 kgfm, 21 lbft)
0.8 Nm (0.08 kgfm, 0.59 lbft)
