PISTON, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
3-60
1
2
3
4
5
6
7
8
9
10
ENGINE
3.
Adjust:
• Crankshaft free play
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Adjustment steps:

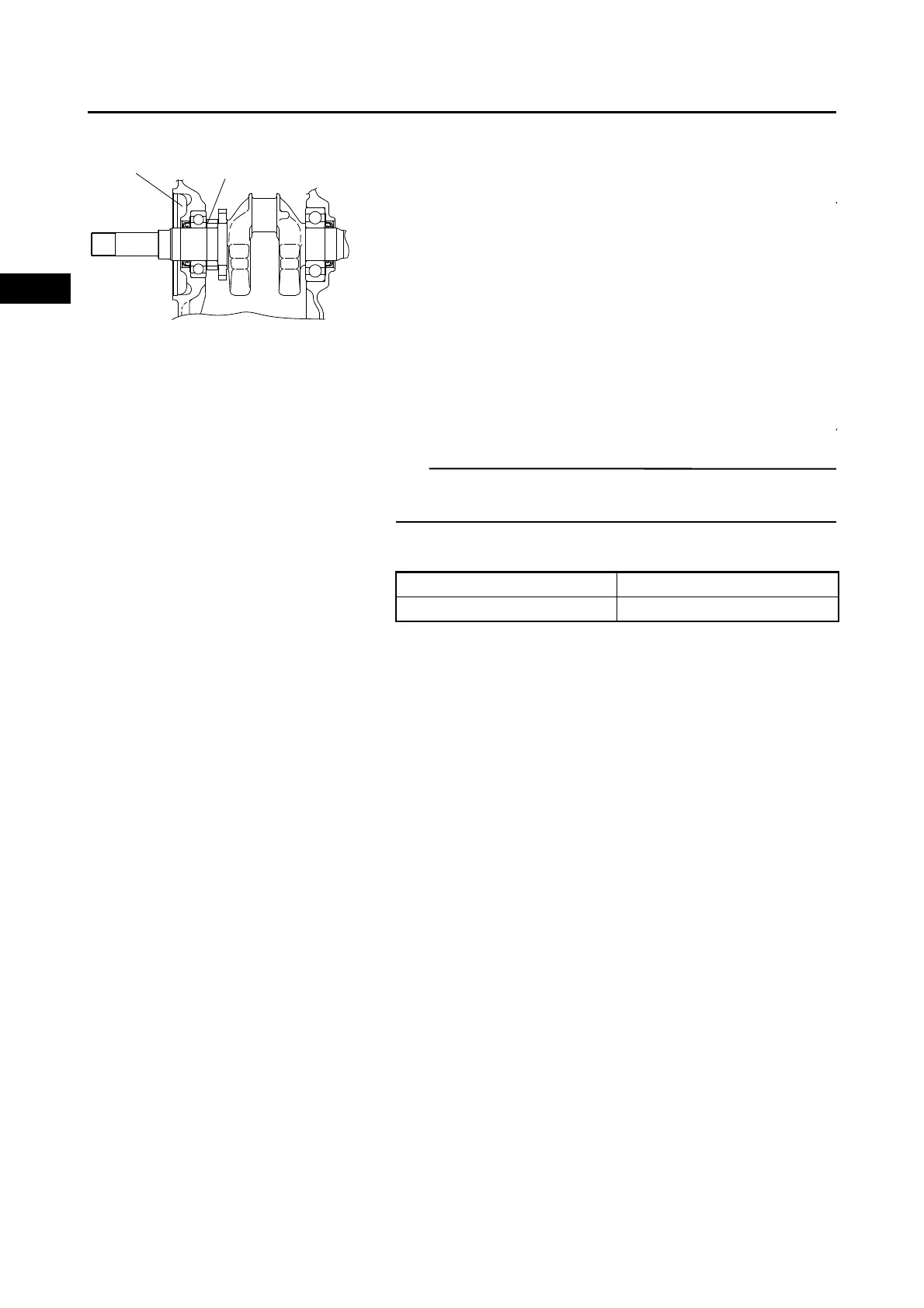

a. Remove the crankcase cover “1”. (Refer to “PIS-
TON, CAMSHAFT, CRANKCASE, AND CRANK-
SHAFT” on page 3-44)
b. Install or remove the shim “2” of the proper thick-
ness.
c. Install the crankcase cover “1”. ( Refer to “INSTALL-
ING THE CRANKCASE COVER” on page 3-51)
d. Measure the crankshaft free play again.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
TIP
Repeat these steps until the free play is within specifica-
tion.
Shim thickness table:
12
Part number Shim thickness
7CT-E1561-00 0.1+0.03
