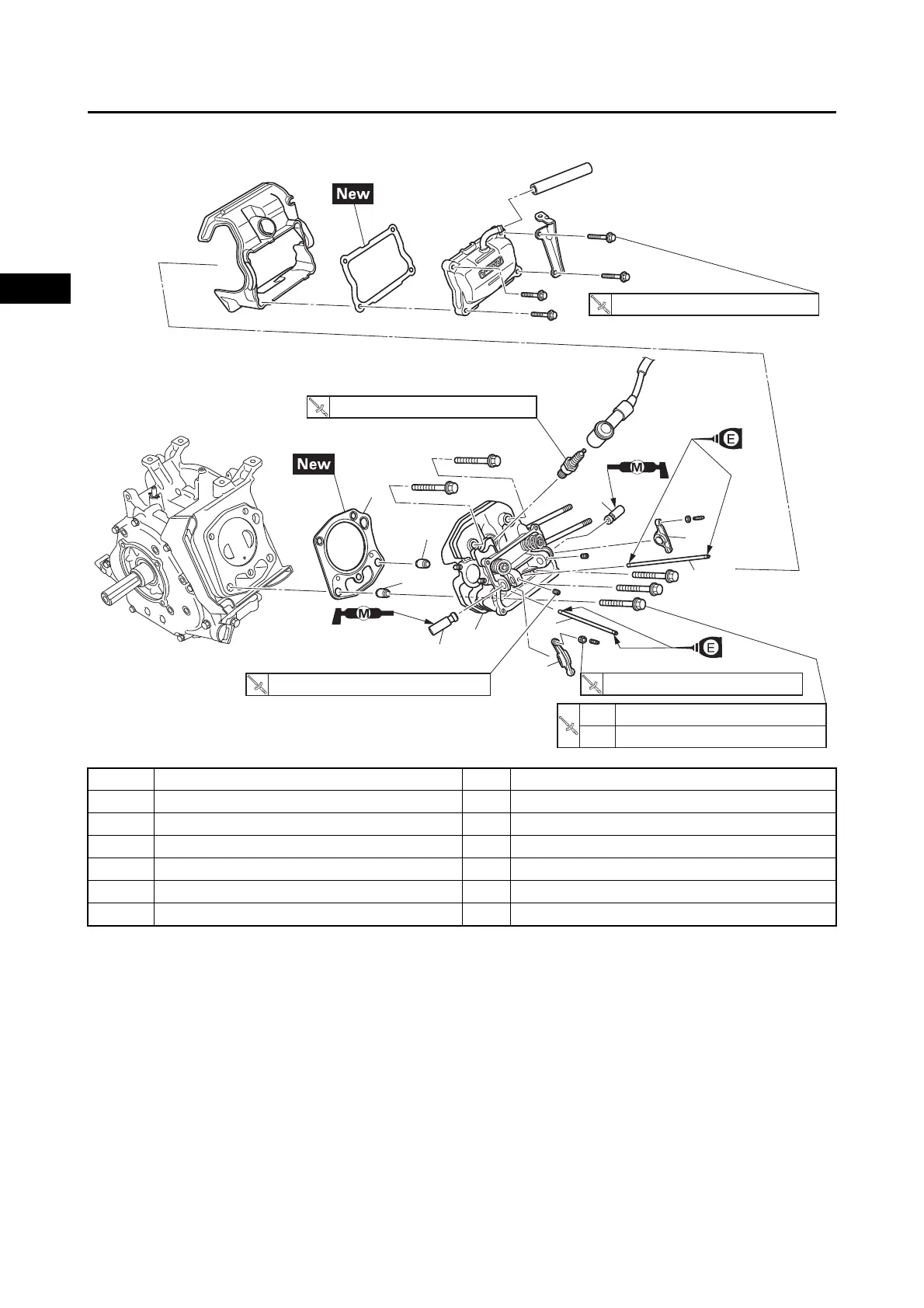

CYLINDER HEAD COVER, CYLINDER HEAD
3-34
1
2
3
4
5
6
7
8
9
10
ENGINE
Order Job/Parts to remove Q’ty Remarks
10 Rocker arm shaft 2
11 Rocker arm 2
12 Push rod 2
13 Cylinder head assembly 1
14 Cylinder head gasket 1
15 Dowel pin 2
10
11
12
12
11
13
10
15
15
14
7 N・m (0.7 kgf・m, 5.2 lb・ft)
11 N・m (1.1 kgf・m, 8.1 lb・ft)
20 N・m (2.0 kgf・m, 15 lb・ft)
2.3 N・m (0.23 kgf・m, 1.7 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
1st
2nd
