Yamaha MX360 - Page 91

VALVE
3-41
1
2
3
4
5
6
7
8
9
10
ENGINE
3.
Insert the valve into the valve guide and use a valve
lapper to contact the valve face with the valve seat.
TIP
Do not rotate the valve while the valve face is contacting
the valve seat.

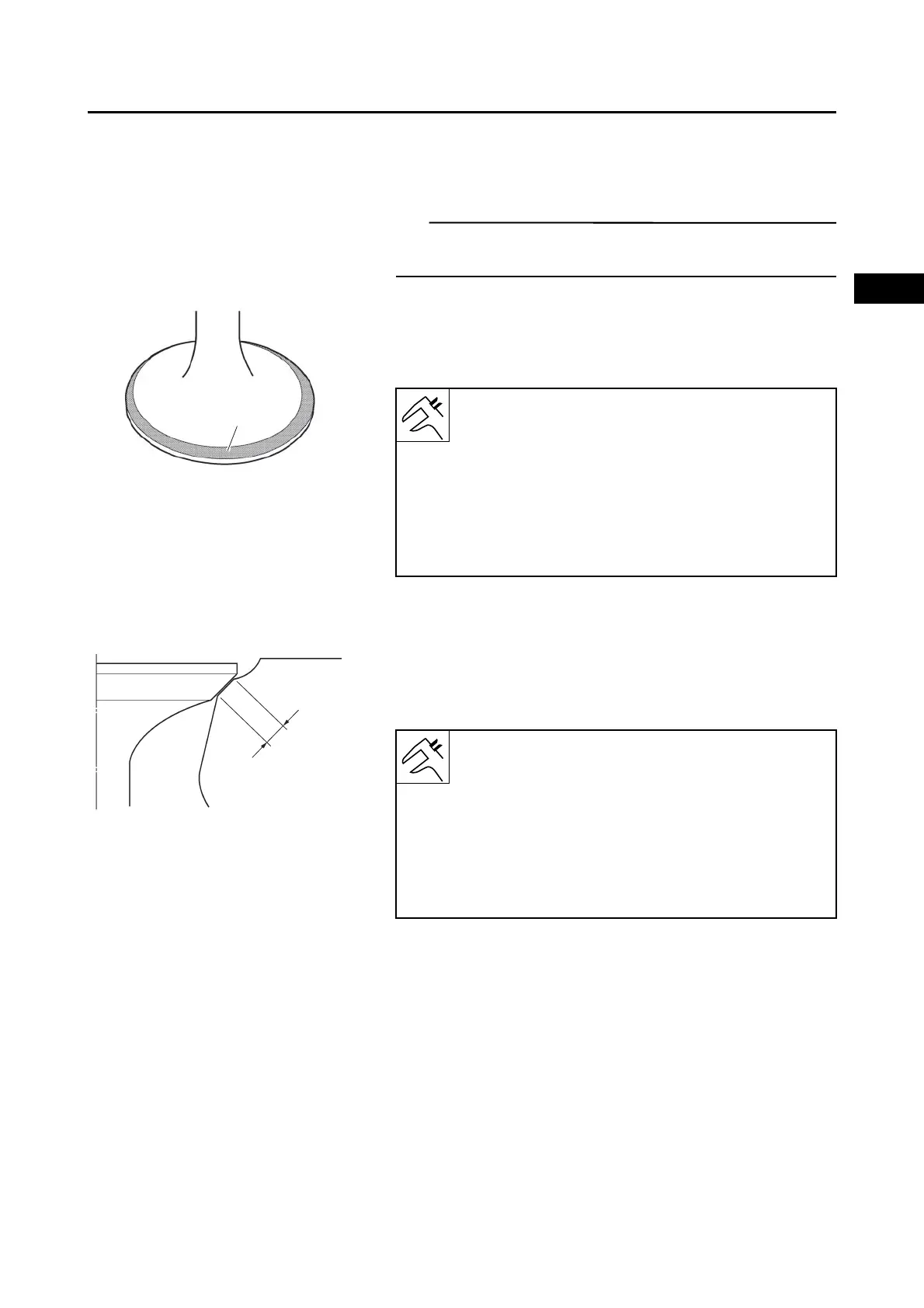

4.
Measure:
• Valve face contact width “a”
Make sure that the contact width along the entire
v
alve face is within specifications.
Out of specification/rough/eccentric wear 
Replace.
5.
Measure:
• Valve seat contact width “a”
Make sure that the contact width along the entire
valve seat is within specifications.
Out of specification/rough/eccentric wear 
Replace.
a
Valve face contact width (Intake):
0.7–0.9 mm (0.0276–0.0354 in)
Valve face contact width (Exhaust):
0.7–0.9 mm (0.0276–0.0354 in)
Limit (Intake):
1.4 mm (0.0551 in)
Limit (Exhaust):
1.4 mm (0.0551 in)
a
Valve seat contact width (Intake):
0.7–0.9 mm (0.0276–0.0354 in)
Valve seat contact width (Exhaust):
0.7–0.9 mm (0.0276–0.0354 in)
Limit (Intake):
1.4 mm (0.0551 in)
Limit (Exhaust):
1.4 mm (0.0551 in)
