11 LED Indicator on Each Circuit Board
FS100 11.1 6 LED-Spot Indicator on the Main CPU Circuit Board (CPU201R)
11-2
11.1 6 LED-Spot Indicator on the Main CPU Circuit Board
(CPU201R)

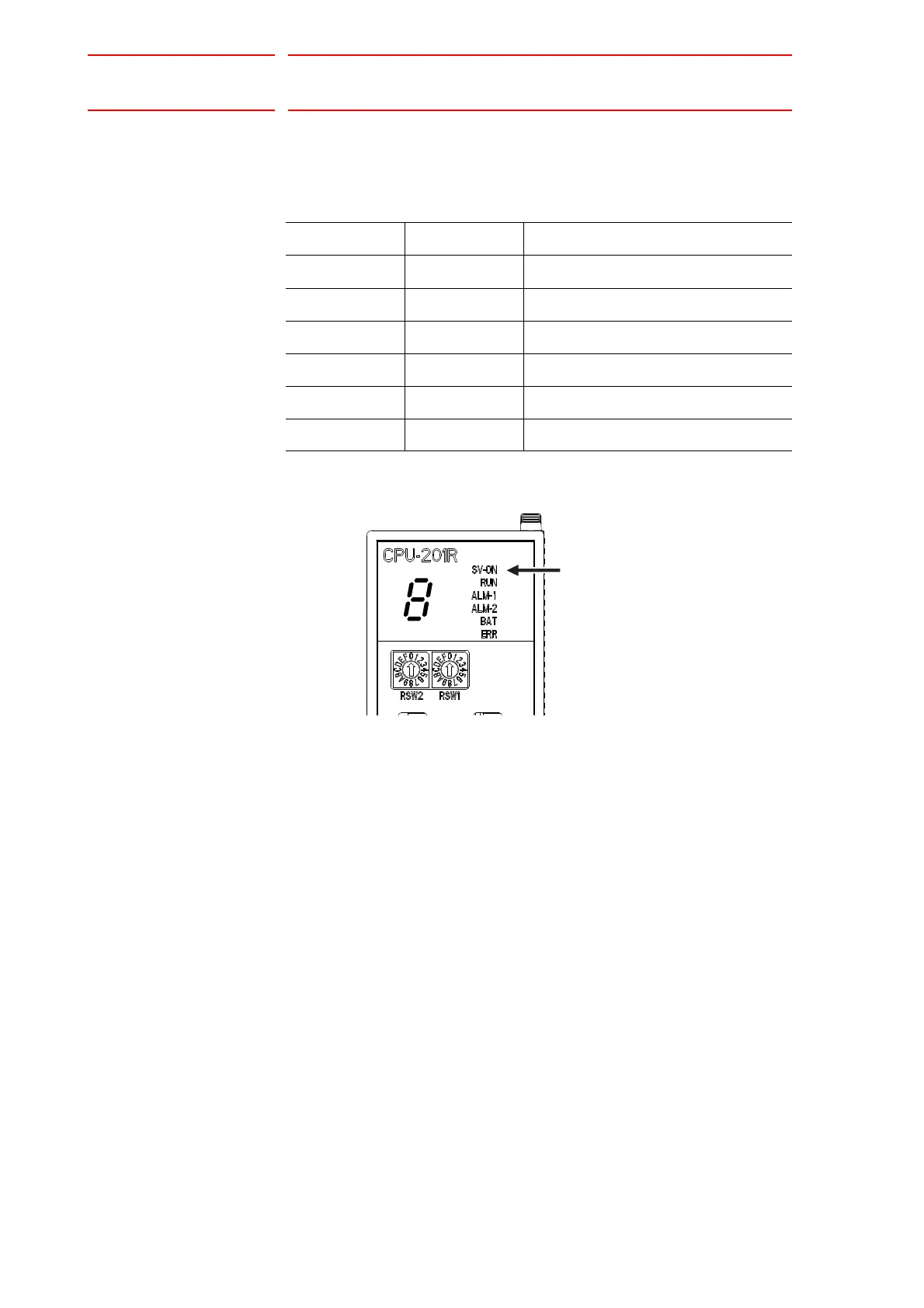

CPU201R board shows its operation status with 6 LED-spot indicator.
Indication LED Color Board Status when LED is lit
SV-ON Green While the SERVO power is turned ON.
RUN Green While in operation
ALM-1 Red Occurrence of a major error
ALM-2 Red Occurrence of a minor error
BAT Red Battery alarm
ERR Red Error
6 LED-Spot Indicator
