YASKAWA L1000A CIMR-LC F Series User Manual

6 DCP Interface
YASKAWA TOEPC710616134G AC Drive L1000A Technical Manual Addendum 27
Example 2 :

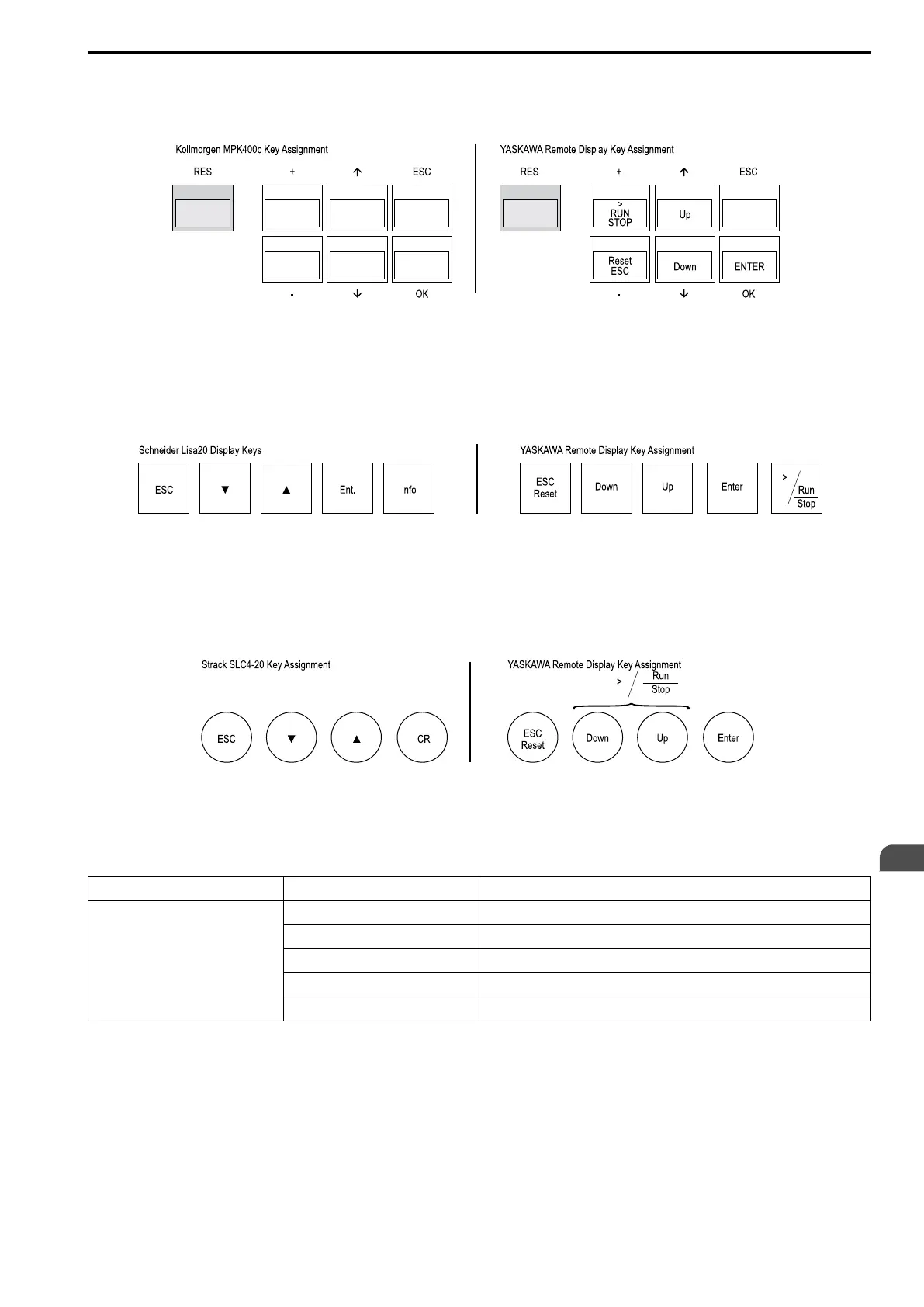

Kollmorgen lift controller MPK400c supports only 5 keys to remotely operate the drive controller. Key layout and
assignment to the buttons:
The button "ESC/Reset" functions like "ESC" in the programming menu, and like "Reset" in the fault display. The
button "Run/Stop" issues a RUN command when not during RUN, and issues a STOP command when during
RUN.
Example 3 :
Schneider Steuerungstechnik GmbH Lisa20 controller supports only 5 keys to remotely operate the drive
controller. Key layout and assignment to the buttons:
The button "ESC/Reset" functions like "ESC" in the programming menu, and like "Reset" in the fault display. The
button "Run/Stop" issues a RUN command when not during RUN, and issues a STOP command when during
RUN.
Example 4 :
Strack Lift Automation SLC4-20 controller supports only 4 keys to remotely operate the drive controller. Key
layout and assignment to the buttons:
The button "ESC/Reset" functions like "ESC" in the programming menu, and like "Reset" in the fault display. The
button "Run/Stop" issues a RUN command when not during RUN, and issues a STOP command when during
RUN. To use the functions ">" or "RUN/STOP" press the buttons "Down" and "Up" at the same time.
Characters for Extended Data Communication
1st Character 49 (Hex) ‘I’ character - Internal command
2nd Character
30 (Hex) ‘0’ character - Manufacturer identification
31 (Hex) ‘1’ character - Determine data byte 2 and 3 content
32 (Hex) ‘2’ character - Switching function
37 (Hex) ‘7’ character - Travel distance parameter
39 (Hex) ‘9’ character - Actual position
■ Drive Controller Remote Display Control (1F (Hex))
In this mode, the display of the lift controller is used for outputting the drive controller's menu texts. Switching to
this mode is initiated with the character string (STX) (1F (hex)) and ends with an (ETX) character. The lift
controller recognizes a display control character (line, cursor position) immediately and outputs the subsequently
transmitted characters at the required position.
The drive controller starts transferring remote display information as soon as a remote key command has been
received from the lift controller. When no remote key has been pressed for more than 30 seconds, the drive
controller stops sending remote display information.
