6 DCP Interface
54 YASKAWA TOEPC710616134G AC Drive L1000A Technical Manual Addendum

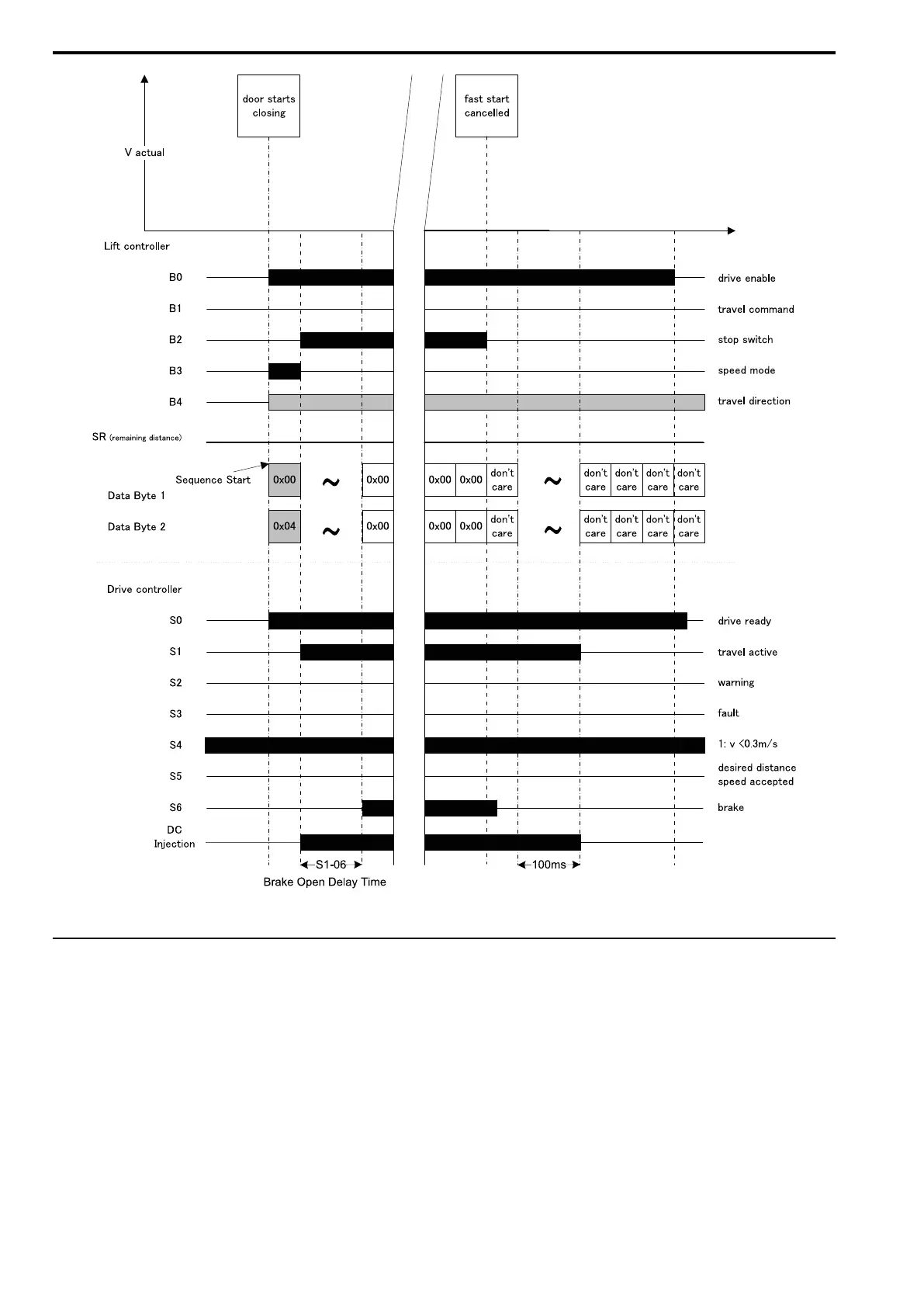

Figure 6.21 Premature Termination DCP4
◆ DCP Fast-Stop Function
The Fast-Stop Function stops the motor with a dedicated Fast-Stop ramp. It can be used to position the car during
commissioning or as failure reaction after an identified malfunction. The electrical braking method is often faster
than stopping with mechanical brake.
The functionality is independent of operation mode DCP3 or DCP4.
■ Activation of the Fast-Stop Function
The control of the Fast-Stop Function is based on the Fast-Start function control.
The Fast-Stop function is activated using an additional speed mode command (DCP3: B3=1, B2=1, B1=1, B0=1;
DCP4: B3=1, B2=1, B1=0, B0=1) during the travel, applying speed VF (4h) in the data bytes.

YASKAWA L1000A CIMR-LC F Series Specifications

General

Enclosure Rating	IP20
Frequency Range	50/60Hz
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Interface	Modbus
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
