YASKAWA L1000A CIMR-LC F Series User Manual

9 Replacement Instructions for Smart Controller Drives
76 YASKAWA TOEPC710616134G AC Drive L1000A Technical Manual Addendum

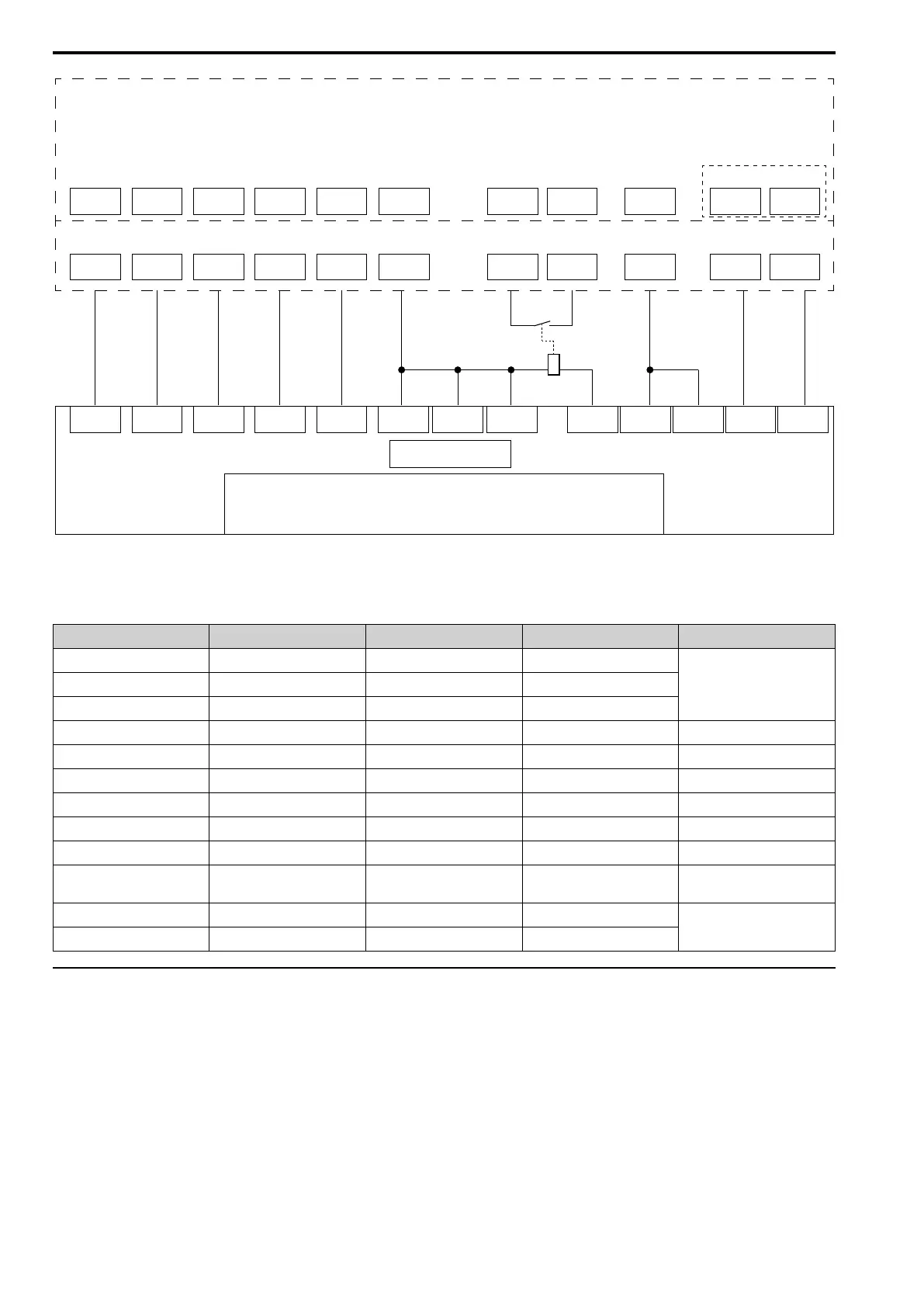

Figure 9.3 Wiring Between Controller and Drive Terminals
The following table summarizes the terminal connections in the old and new configurations.
Table 9.2 Terminal Connections
Controller SMCCFC Terminal Vacon Drive Terminal YASKAWA L1000A Terminal Brake Relay Function
- M2 A1
Connection for Brake Relay1 26 - 4
3 25 - 3
5 6 SP, M1 - -
6 8 S1 - Direction / Run
7 20 M4 - -
8 14 S3 - Nominal / Fast Speed
9 15 S6 - Inspection / Leveling
10 16 S7 - Landing Zone
11 17
SC, SN, M3
A2 (Relay Coil)
- Connection for Brake Relay
1 22 M5 -
Safety Circuit
3 23 M6 -
◆ Start Up
After wiring, power on the drive and follow these steps
1. Enter the programming mode of the L1000A.
2. Set parameter d1-18 = 4 [Smart Replacement].
This operation sets I/Os to operate with the Smart controller.
3. Set drive parameters.
With this step, you enter motor data to the drive.
Yaskawa L1000A Drive
S1 S3 S6 S7 M4 M3 SC
Terminal Numbering
SN M2 S M1 M5 M6
8 14 15 16 20 17 25 26 22 236
Safety Circuit
1 3
Brake Signal 24 V
3 1 56 8 9 10 7
Up/
Down
High
Speed
Slow
Speed
Landing
Zone
Slow
Down 0 V
Terminal Numbering XFCL Terminal
Controller (SMCCFC Board)/Drive Terminals
11
Terminal Numbering Old Drive
3 4
A1 A2

YASKAWA L1000A CIMR-LC F Series Specifications

General

Enclosure Rating	IP20
Frequency Range	50/60Hz
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Interface	Modbus
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
