YASKAWA L1000A CIMR-LC F Series User Manual

9 Replacement Instructions for Smart Controller Drives
YASKAWA TOEPC710616134G AC Drive L1000A Technical Manual Addendum 77

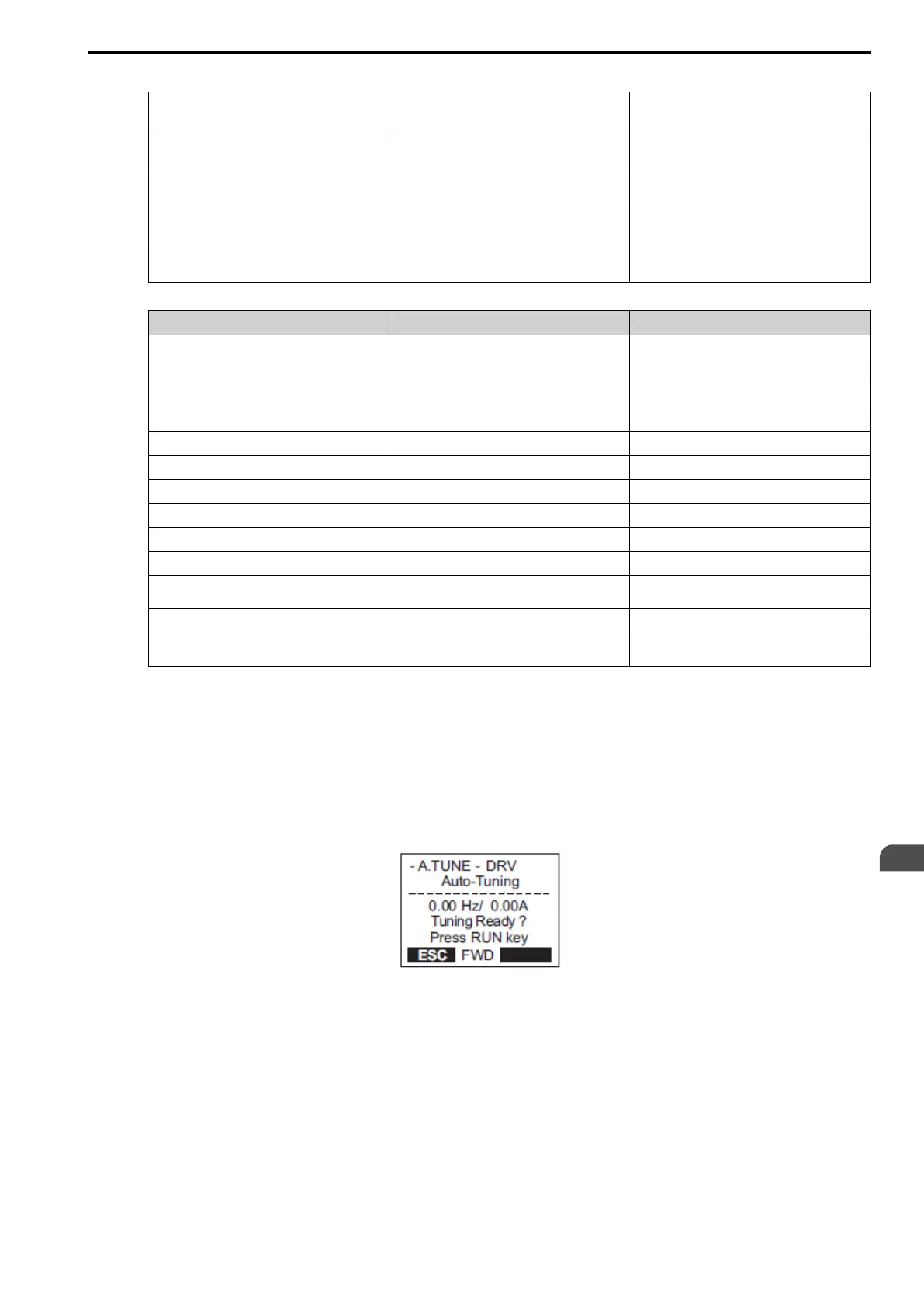

Table 9.3 Motor Nameplate (Example)
U =
Δ / Y 400 ΔV
f =
33 Hz
cos φ 0,85
P =
6.7 kW
I =
13.5 A
RPM =
950 min
-1
Starting Torque =
TA/TN 2.75
S5 240, F/h 50 % ED
Inertia =
I mot 0,32 kgm
2
IEC34 - 1
Protection degree =
IP21
Insulation =
KI F
Table 9.4 Recommended Parameters (Example)
Parameter No. Parameter Name Setting Value
E1-04 Maximum Output Frequency 33 Hz
*1
E1-05 Maximum Voltage 400 V
*1
E1-06 Base Frequency 33 Hz
*1
E1-09 Minimum Output Frequency 0.1 Hz
*1
E2-01 Motor Rated Current 13.5 A
*1
E2-02 Motor Rated Slip 1.30 Hz
*1
E2-03 Motor No Load Current 6 A
*1
E2-11 Motor Rated Power 6.7 kW
*1
S1-07 Brake Close Delay Time 0.3 s
S1-10 Run Command Delay Time 0.4 s
S6-02
Starting Current Error (SE2) Detection Delay
Time
500 ms
S6-03 SE2 Detect Current Level 35 %
S6-04
Output Current Error (SE3) Detection Delay
Time
500 ms
*1 According to the (Example) Motor Nameplate.
4. Enter the Auto-Tuning menu.
5. Set parameter T1-01 = 2 [Stationary Auto-Tuning for Line-to-Line Resistance].
6. Enter the nameplate data in the Auto-Tuning menu.
• T2-02 = Motor Power (kW)
• T2-04 = Motor Current (Amps)
7. After entering the data listed on the motor nameplate, press the UP-button until the following message is
displayed: “0.00 Hz/0.00 A Tuning Ready? Press RUN key”.
Figure 9.4 Tuning ready?
EN

YASKAWA L1000A CIMR-LC F Series Specifications

General

Enclosure Rating	IP20
Frequency Range	50/60Hz
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Interface	Modbus
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
