YASKAWA L1000A CIMR-LC F Series User Manual

9 Replacement Instructions for Smart Controller Drives
YASKAWA TOEPC710616134G AC Drive L1000A Technical Manual Addendum 75
9 Replacement Instructions for Smart Controller Drives
The following describes how to replace the drive in Schindler Smart controllers with a YASKAWA L1000A AC
drives for Lift. This solution has been developed to replace drives used in Smart MRL 001 / 002 controllers.
◆ Requirements
The L1000A can almost directly replace existing drives. The only additional component needed is an external
relay to control the brake.
YASKAWA recommends a relay from the 46.52 series made by Finder. When other relays are used it should be
selected so that the excitation current of the coil does not exceed the specifications of the output M2 on the
L1000A drive. Generally the relay should be selected so that the excitation current is as low as possible.

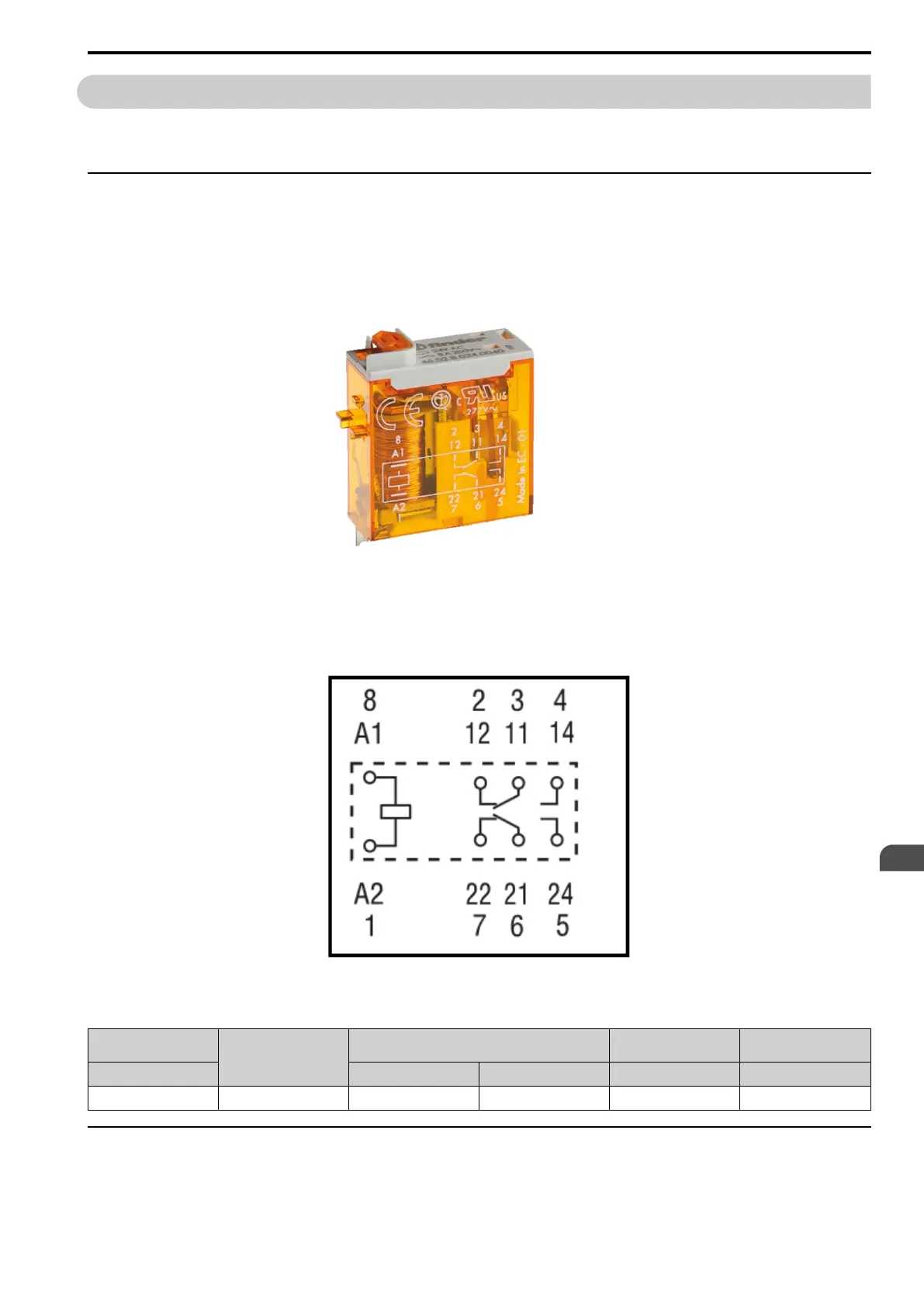

Figure 9.1 Finder Relay
Figure 9.2 Circuit of the Relay
Table 9.1 DC Coil Data
Nominal Voltage
Coil Code
Operating Range Resistance
Rated Coild
Consumption
U
N
[V] U
min
[V] U
max
[V] R [Ω] I at U
N
[mA]
24 9.024 17.5 26.4 1,200 20
◆ Wiring of the L1000A AC Drive for Lift
The following figure shows the wiring between the controller (connector XFCL) and the drive terminals.
EN

YASKAWA L1000A CIMR-LC F Series Specifications

General

Enclosure Rating	IP20
Frequency Range	50/60Hz
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Interface	Modbus
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
