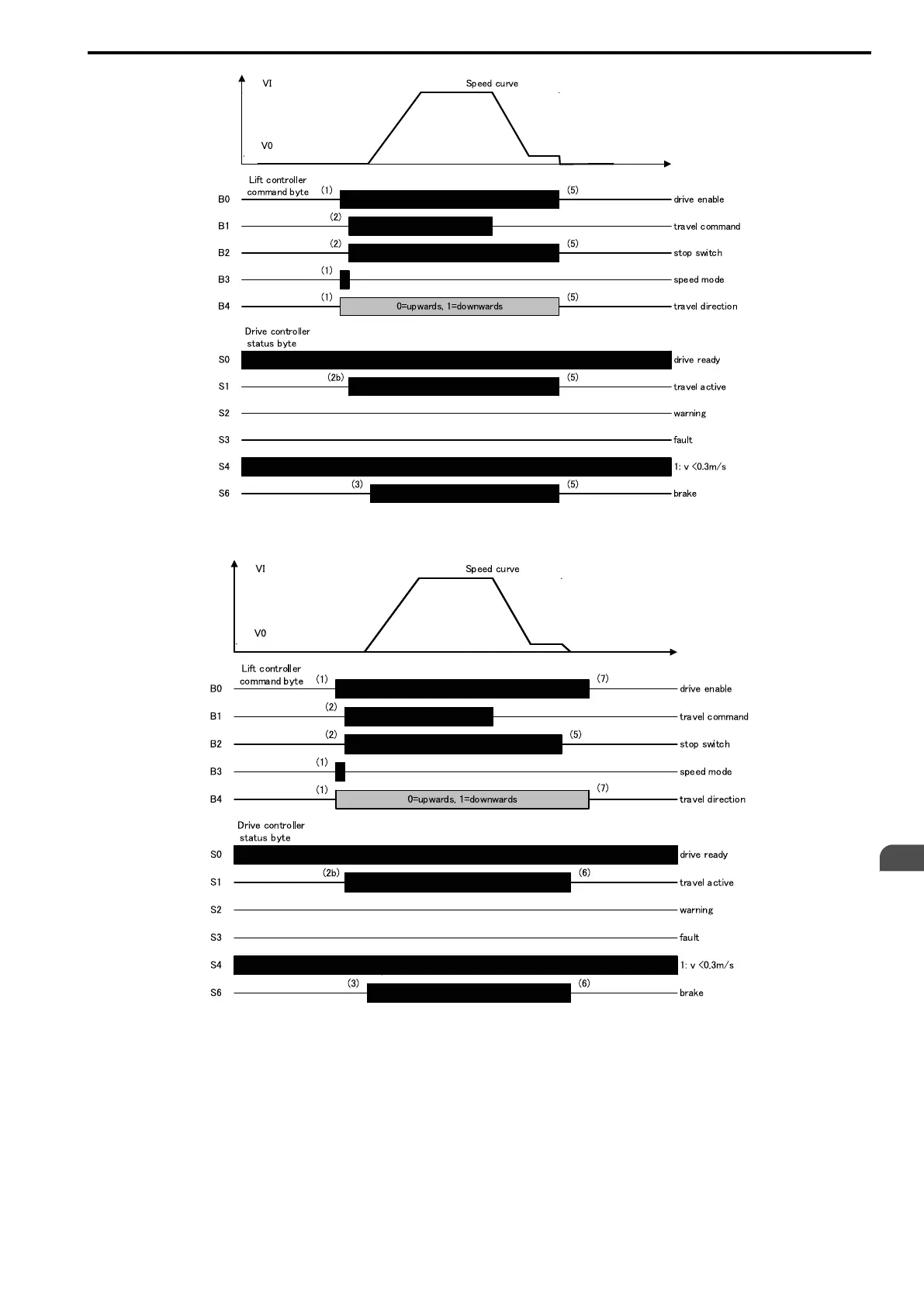

Figure 6.3 Inspection Travel Stopped with Idle Command
Figure 6.4 Inspection Travel Stopped with Stop Command
Inspection Travel with V0 :
When the car is standing in the range of the end-stops, an inspection travel towards the end may not start with
inspection speed (VI). In this case, it must start with crawl speed (V0). This is realized by activating only stop
switch bit B2 without activating travel command bit B1.
Note:
Just like the inspection travel with VI, the speed mode "Inspection [bit G4]" (VI) is transmitted before the travel starts. This is necessary
because some types of drive controllers in DCP4 mode can only realize an inspection travel with V0 if the "Speed Mode" command is
using the speed inspection bit G4 (VI).
EN

YASKAWA L1000A CIMR-LC F Series Specifications

General

Enclosure Rating	IP20
Frequency Range	50/60Hz
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Interface	Modbus
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
