APPLICATIONS OF Σ-SERIES PRODUCTS
3.2.10Using the Reference Pulse Inhibit Function (INHIBIT)cont.
98
Always set bit 2 of memory switch Cn-02 to 0.
If bit 2 is set to 1, the contact input speed control function is selected, and the INHIBIT
function cannot be used. (The P-CON
signal is used for changing the motor rotation
direction. For the contact input speed function, refer to 3.2.6 Using Contact Input
Speed Control.)

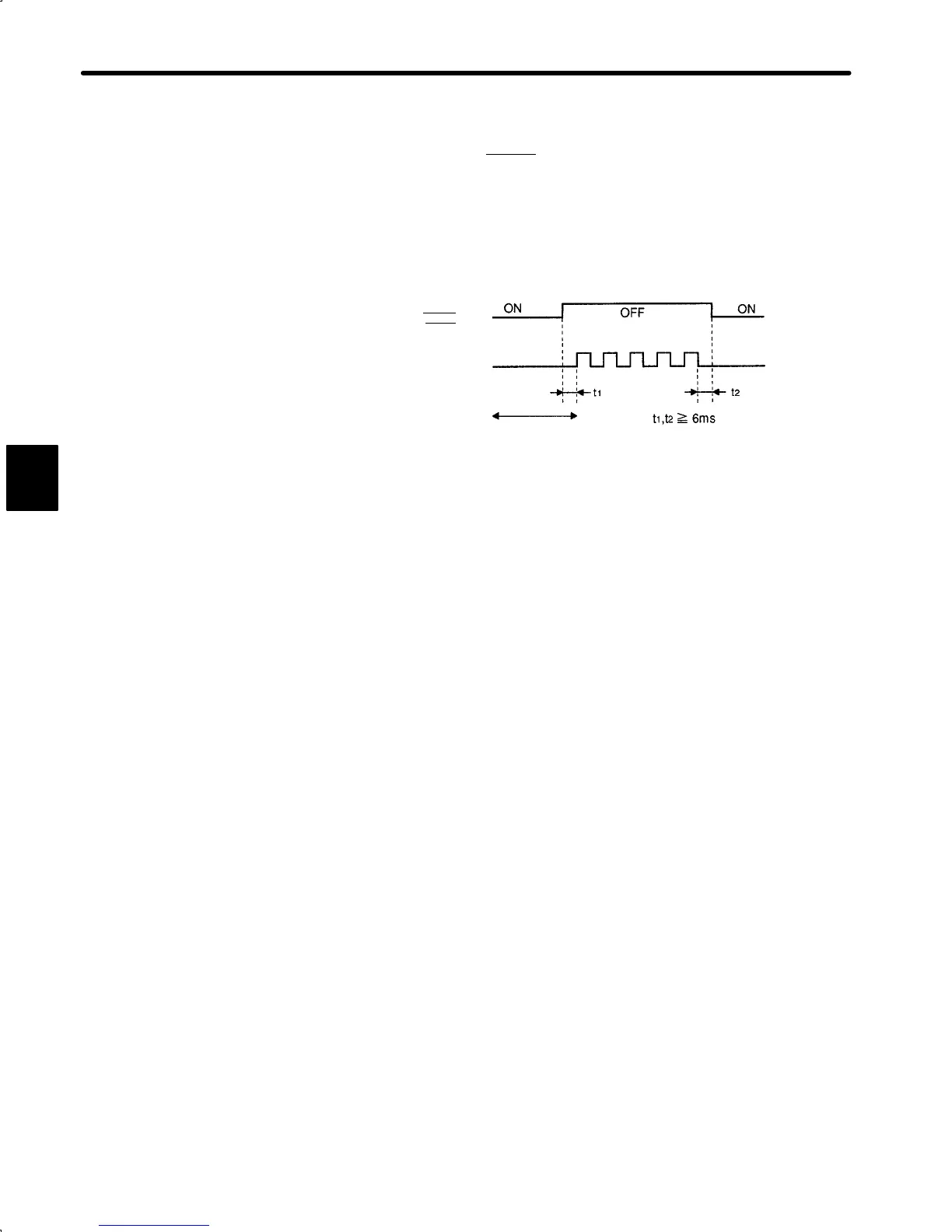

3) Relationship between INHIBIT Signal and Reference Pulse
INHIBIT signal
(P-CON
)
Reference pulse
Input reference pulses
are not counted
during this period.
3
