APPLICATIONS OF Σ-SERIES PRODUCTS
3.2.7 Using Torque Control
88

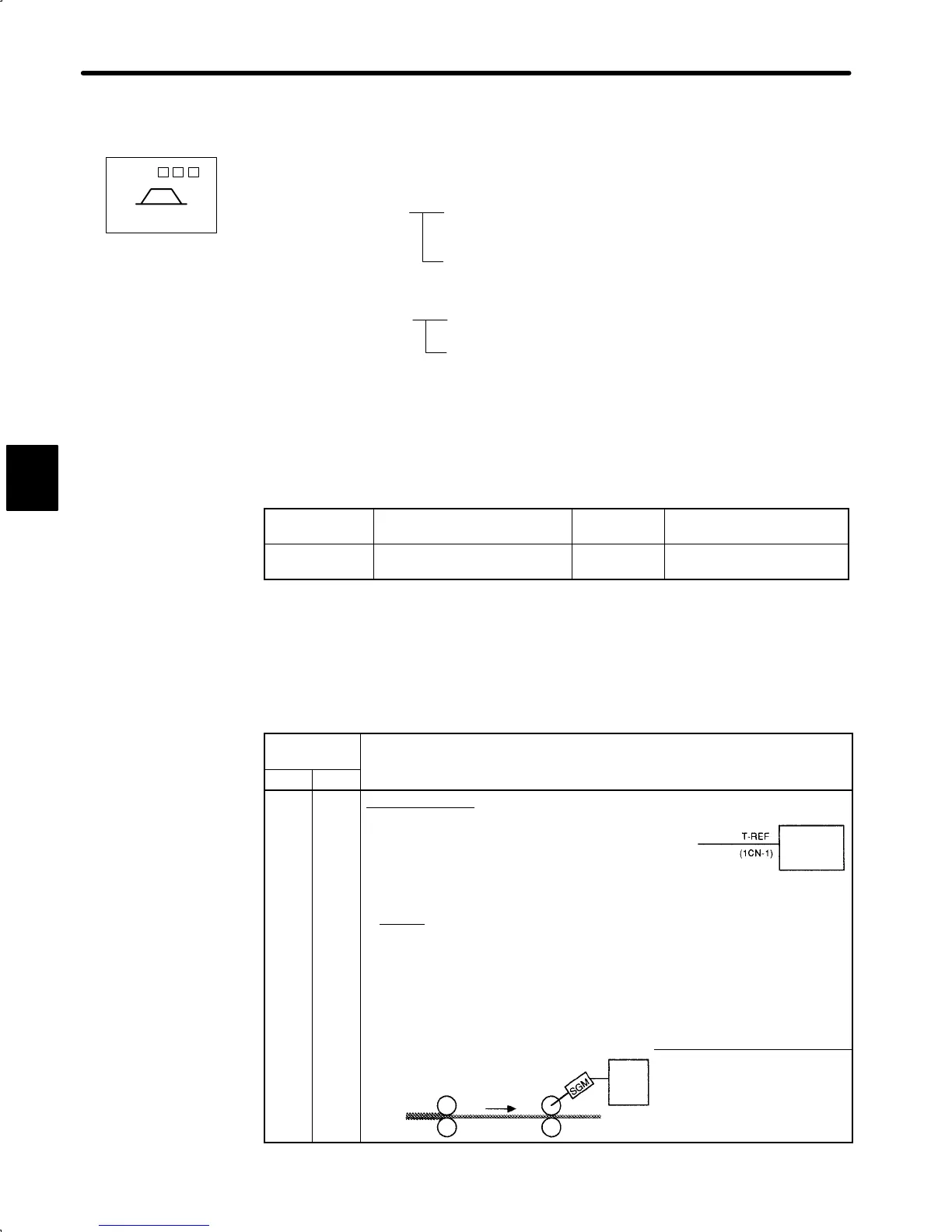

3.2.7 Using Torque Control
1) The Servopack can provide the following torque control:
D Torque restriction Level 1: To restrict the maximum output torque to protect
the machine or workpiece
Level 2: To restrict torque after the motor moves the
machine to a specified position
D Torque control Level 3: To always control output torque, not speed
Level 4: To switch between speed control and torque
control
This section describes how to use levels 3 and 4 of the torque control function.
2) Use the following memory switch to select level 3 (torque control I) or level 4 (torque con-
trol II).
Cn-01 Bit A
Control Mode Selection Factory
Setting: 0
For Speed/Torque Control
Only
Cn-01 Bit B
Control Mode Selection Factory
Setting: 0
For Speed/Torque Control
Only
This is dedicated torque control.
A motor torque reference value is externally input into the Servopack to control torque.
Examples of Use: Tension control
Pressure control
Cn-01
Setting
Control Mode
Bit B Bit A
Control
Mode
Torque Control I
This is a dedicated torque control mode.
D A torque reference is input from T-REF
(1CN-1).
Torque
reference
Servopack
1 0
D P-CON
is not used.
D Speed reference input V-REF (1CN-3)
cannot be used.
D User constant Cn-14 can be used for
maximum speed control.
Example of Use:
Tension control
Tension
Servo-
pack
3
SGDA- S
Speed/Torque
